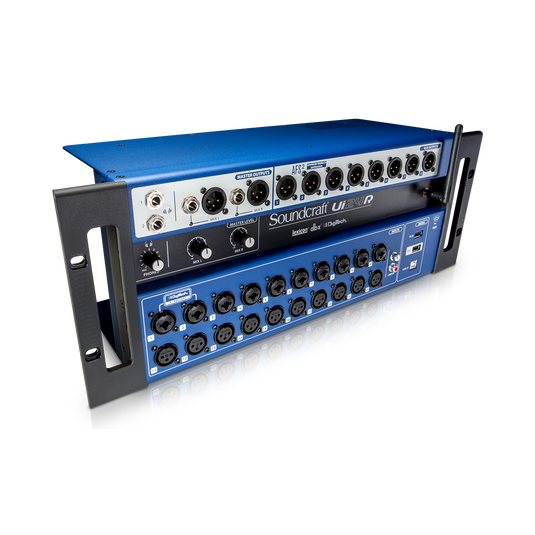

Soundcraft Ui24R 24-Channel Digital Mixer and Multitrack Recorder

The Soundcraft Ui24R combines rack-mounted digital mixing, browser-based remote control and multitrack recording in one system for live sound and recording.

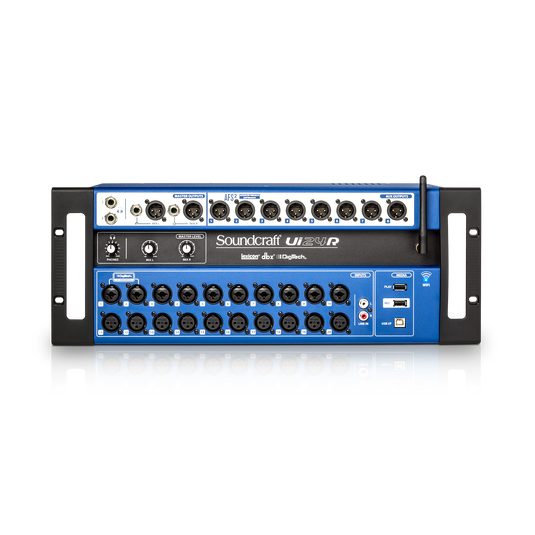

Inputs and outputs

• 20 Studer-designed microphone preamps: 10 combo TRS/XLR and 10 XLR inputs
• Two line inputs and two USB playback channels provide 24 input channels in total
• Eight physical XLR auxiliary outputs and stereo main outputs
• Dual headphone outputs

Control and recording

• Built-in dual-band Wi-Fi and Ethernet connectivity
• Control from compatible iOS, Android, Windows, macOS and Linux browsers
• Up to 10 control devices simultaneously
• Multitrack recording to USB storage and a connected computer
• Lexicon effects, dbx processing and DigiTech guitar modeling
• 4U rack-mount format

Includes mixer and power cord. Computer, tablet, microphones and USB storage are separate.

Shipping information

Retailer-reported shipping box: 22.362 × 10.63 × 9.291 inches (L × W × H). Packaged weight: 14.4 lb. Package measurements are separate from the mixer dimensions; additional packing can change the final shipment.
