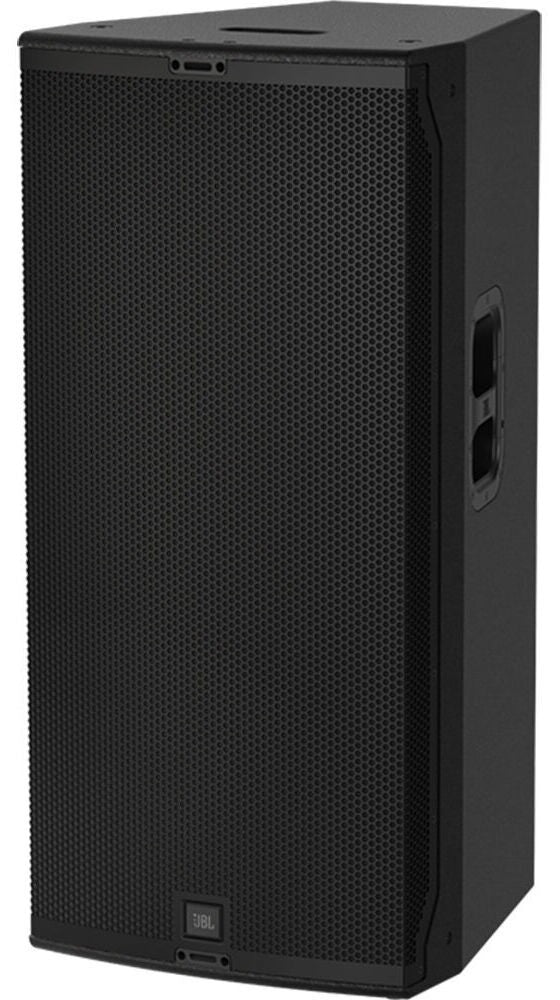

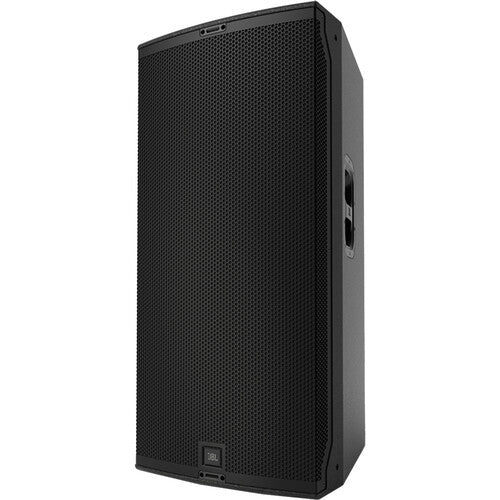

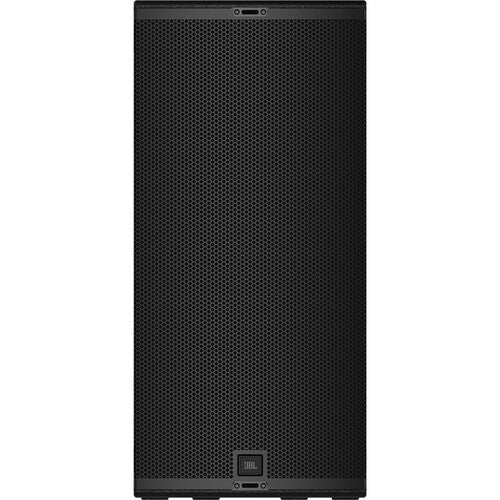

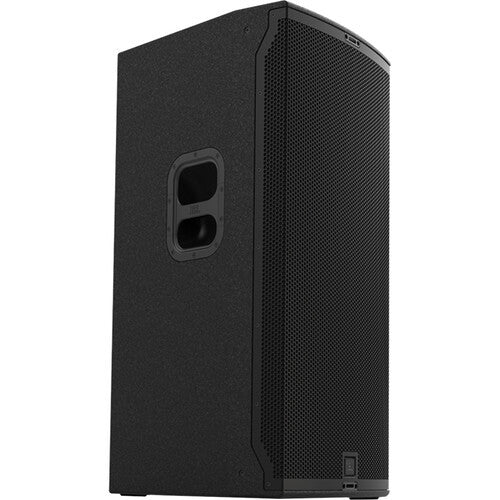

JBL SRX922 Dual 12-Inch Three-Way Powered PA Speaker

The JBL SRX922 is a three-way powered point-source loudspeaker for full-range PA applications in the SRX900 Series. It combines two JBL 2273G 12-inch Differential Drive woofers, a JBL 196H-1 6-inch midrange driver and a JBL 2408H-1 compression driver with a 1.5-inch voice coil with onboard Class-D amplification and DSP.

Audio specifications

• Continuous amplifier power: 1100W; peak amplifier power: 1600W
• Maximum peak output: 138dB SPL
• Frequency range (-10dB): 40 Hz–17.5 kHz
• Coverage: 90° horizontal × 60° vertical

Connections and control

• Balanced line-level XLR input and XLR output
• Dual etherCON Ethernet ports; HARMAN HControl network control
• Rear LCD, encoder and user-adjustable DSP
• 24 user-adjustable filters and up to 2,000ms delay
• 100–240V AC, 50/60Hz; powerCON TRUE1 input/output connectors

Cabinet and mounting

• Exterior-grade birch plywood with DuraFlex finish
• 8 JBL QuickLink M10 suspension points
• Cabinet dimensions (H × W × D): 37.2 × 17.3 × 19.9 inches
• Net speaker weight: 100 lb

Shipping information

Manufacturer-listed packaged weight: 117 lb per speaker. Retailer-reported shipping-box dimensions (H × W × D): 39.2 × 19.2 × 21.9 inches (Hollywood DJ). These are package measurements, separate from cabinet dimensions; additional packing or palletizing can increase final shipment size and weight. Contact CS Pro Audio to confirm delivery and special handling.

Included and optional equipment

Sold individually. JBL lists one SRX922 and Neutrik NAC3F-TRUE1-S and NAC3M-TRUE1-S connectors. Speaker stands, brackets, suspension hardware, covers and other system components are separate unless specifically stated. Suspended installations require approved hardware, manufacturer instructions and qualified personnel.

Complete your system

Browse mixers, subwoofers and XLR cables. Review our shipping and return policy.

JBL specifications and documentation.
