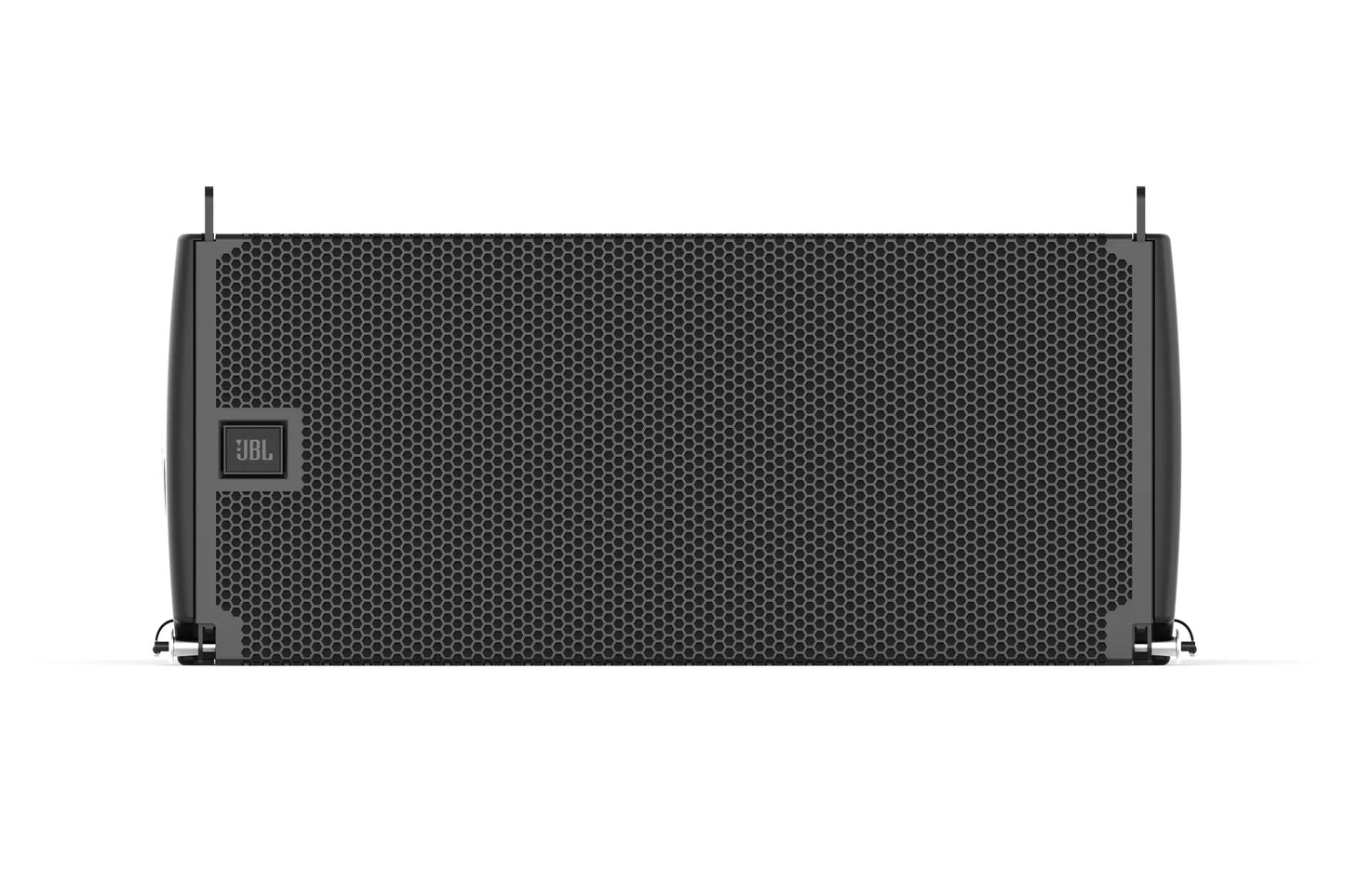

JBL SRX910LA Dual 10-inch Powered Line Array Loudspeaker
JBL SRX910LA Dual 10-inch Powered Line Array Loudspeaker
Couldn't load pickup availability
Dual 10-inch Powered Line Array Loudspeaker
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.
The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.
JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.
An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.
Specifications
Frequency Range (-10dB) | 53 Hz-19 kHz (array preset) |
Coverage Pattern | 105 degrees nominal (400 Hz-16 kHz) |
Maximum SPL |
135 dB |
System Type | Line Array, two-way active |
Amplifier Design | Class-D |
Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
LF Driver | (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive® |
HF Driver | (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil |
Enclosure | Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds |
Inter-Enclosure Angles | 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
Dimensions (H x W x D) | 305 mm x 716 mm x 519 mm (12.0 in x 28.2 in x 20.5 in) |
Net Weight (each) | 26.7 kg (59 lbs) |
