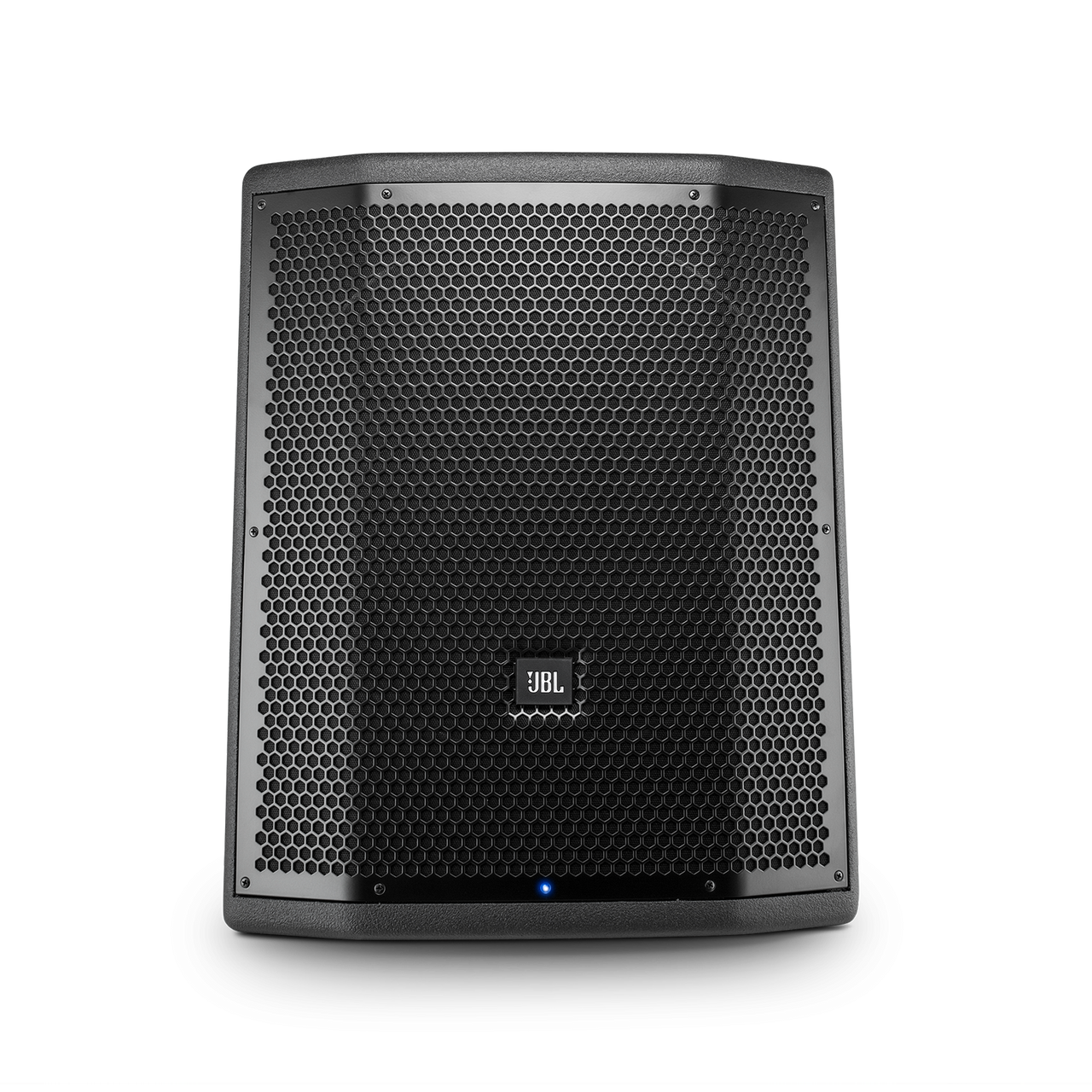

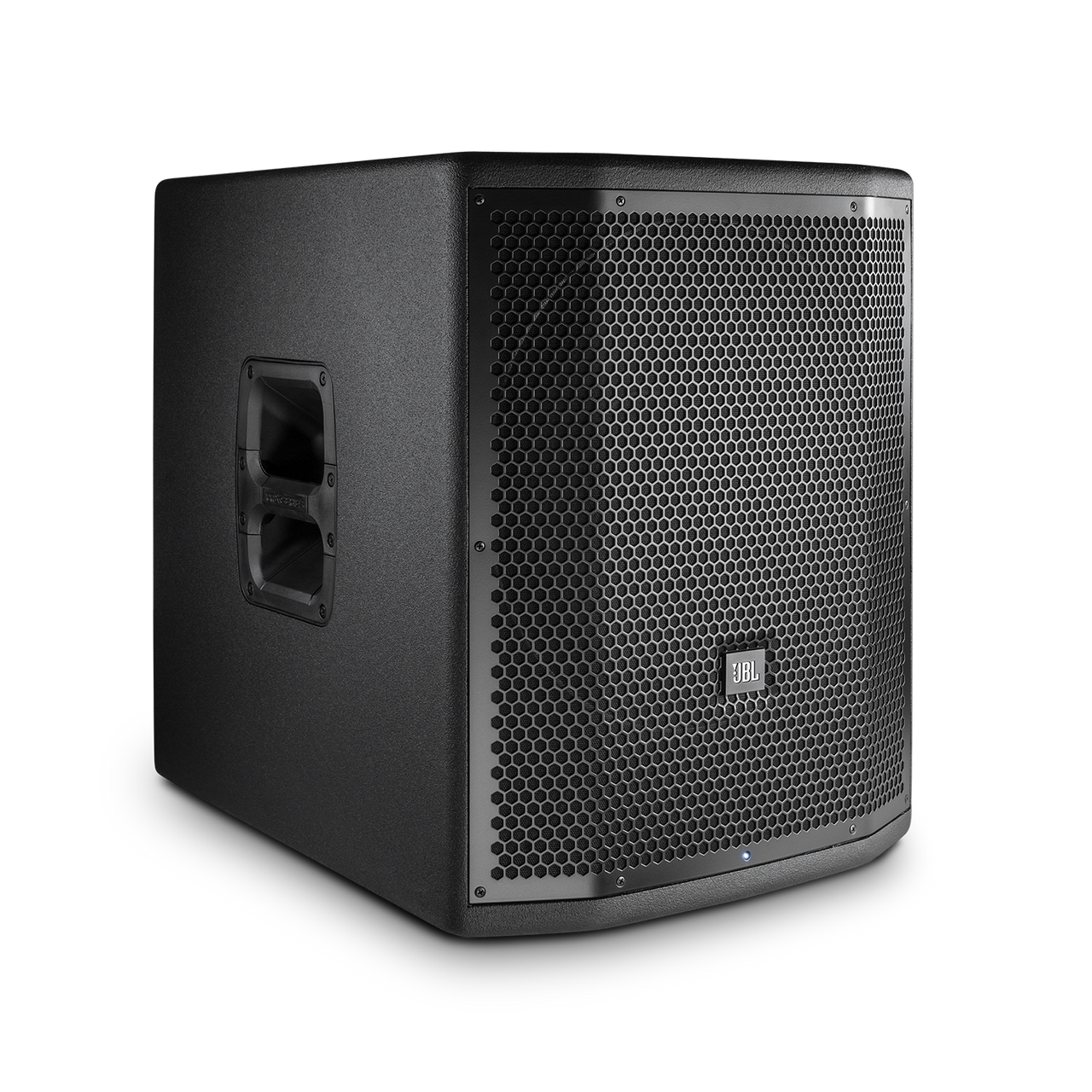

JBL PRX 815 XLF 15” Self-Powered Extended Low Frequency Subwoofer
JBL PRX 815 XLF 15” Self-Powered Extended Low Frequency Subwoofer
Couldn't load pickup availability
-
The PRX815XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLF performs with exceptional efficiency and control. The subs are stackable and light-weight, ensuring quick set-ups and tear-downs. Due
to their rugged construction, they are perfect
for AV rental inventories. With the integrated stereo pass-thru this is the most powerful low- frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization. PRX800 subwoofers feature a standard M20 threaded pole cup that can accept most modern subwoofer- mounted speaker poles -

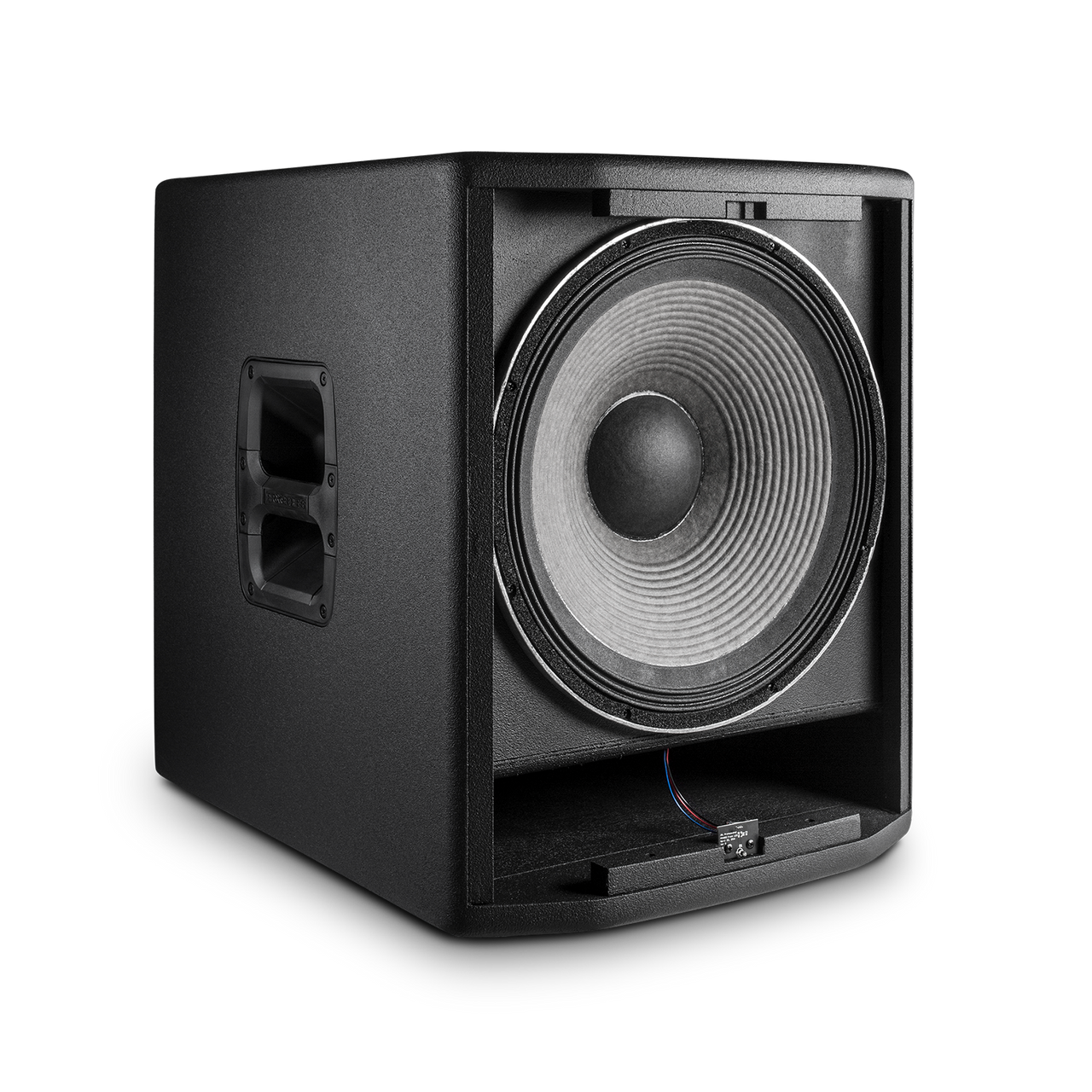

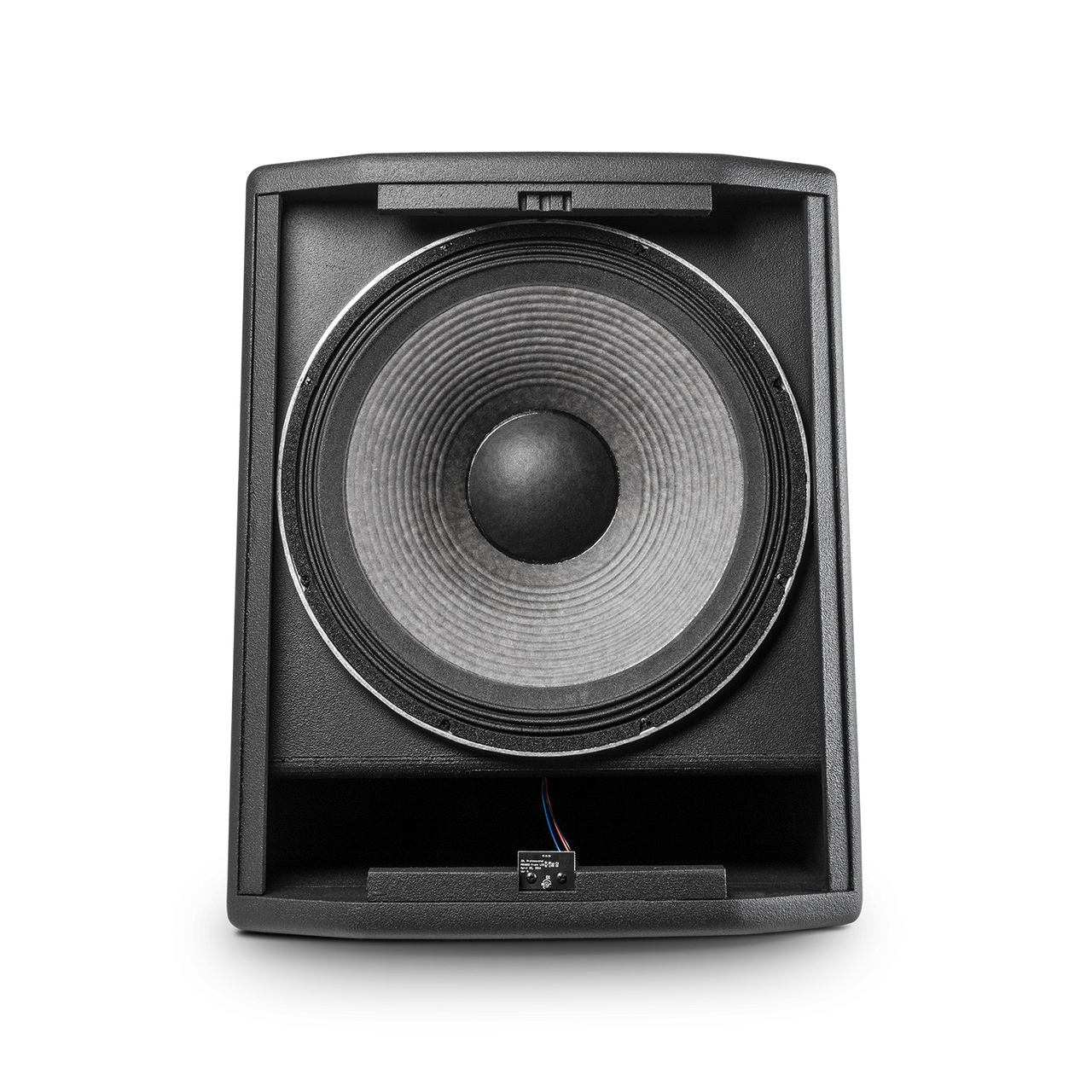

The PRX815XLF is a high performance self- powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX815XLF is comprised of a powerful 2275H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
FEATURES
• Built in Wi-Fi for wireless control of your system from anywhere in the venue
• Free PRX Connect mobile app provides wireless control over levels, parametric EQ, user presets, and up to 50ms of user delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive® transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Crown-designed input panel with XLR, 1/4”, and RCA inputs, plus XLR loop-through
• Durable construction with wooden cabinets, tour-proven DuraFlex™ finish, and dent-resistant cloth-backed 16-gauge grilles
• Universal power supply for worldwide compatibility
• Demanding 100-hour test regimen ensures reliable performance
• Intelligent variable-speed fan activates only when needed to reduce noise
• Scalable system that integrates with other JBL portable powered PAs
TECHNICAL SPECIFICATIONS
SYSTEM TYPE: Self Powered 15” subwoofer
MAXIMUM SPL OUTPUT: 131 dB peak
FREQUENCY RANGE (-10 dB): 36 Hz - 113 Hz
FREQUENCY RESPONSE (±3 dB): 40 Hz - 91 Hz
POWER RATING: 1500W
INPUT IMPEDANCE: 20K Ohms (balanced)
NET WEIGHT: 25.4 kg (56.0 lb)
DIMENSIONS (H X W X D): 548 mm x 446 mm x 572 mm (21.6 in x 17.5 in x 22.5 in)
