FBT X SUB 115SA PROCESSED ACTIVE SUBWOOFER

FBT X SUB 115SA PROCESSED ACTIVE SUBWOOFER

Regular price $979.00 USD
Regular price Sale price $979.00 USD
Sale Sold out
Shipping calculated at checkout.

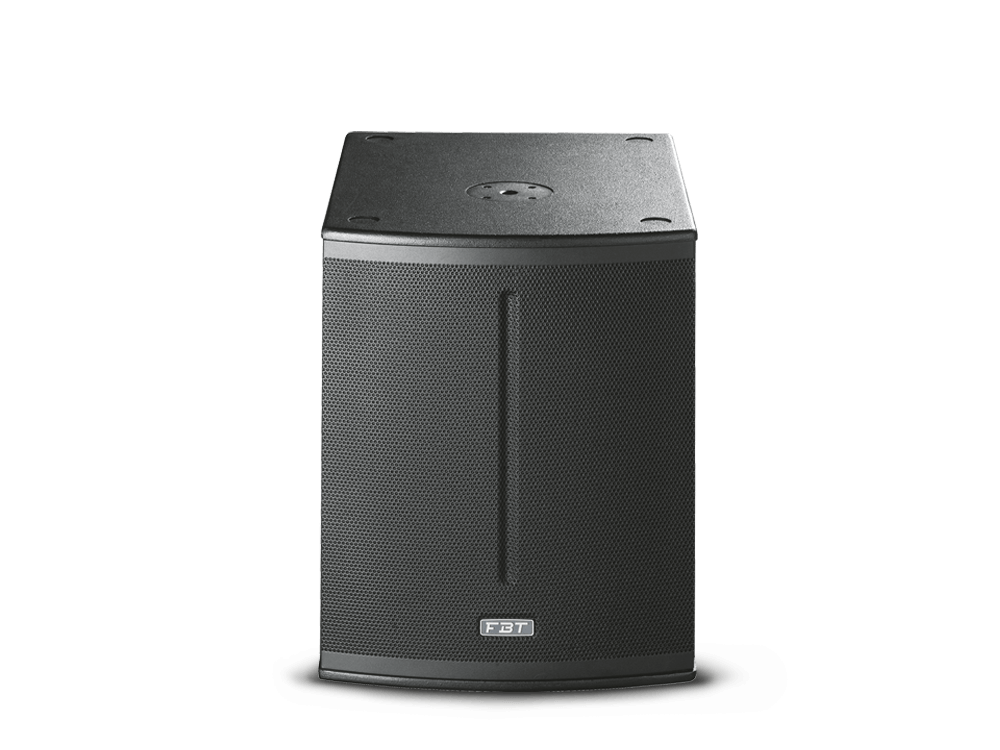

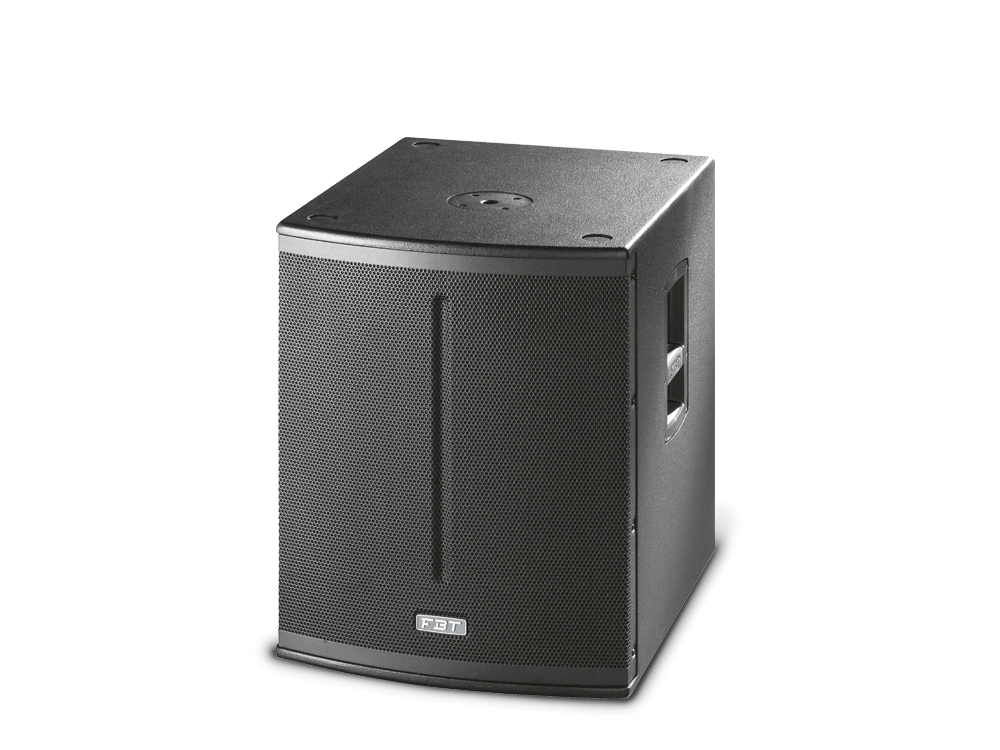

The FBT X-SUB 115SA , 1 x 15" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 115SA provides the following performance criteria: frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier.

The FBT X-SUB 115SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 115SA feature 0,59" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93" transport wheels.

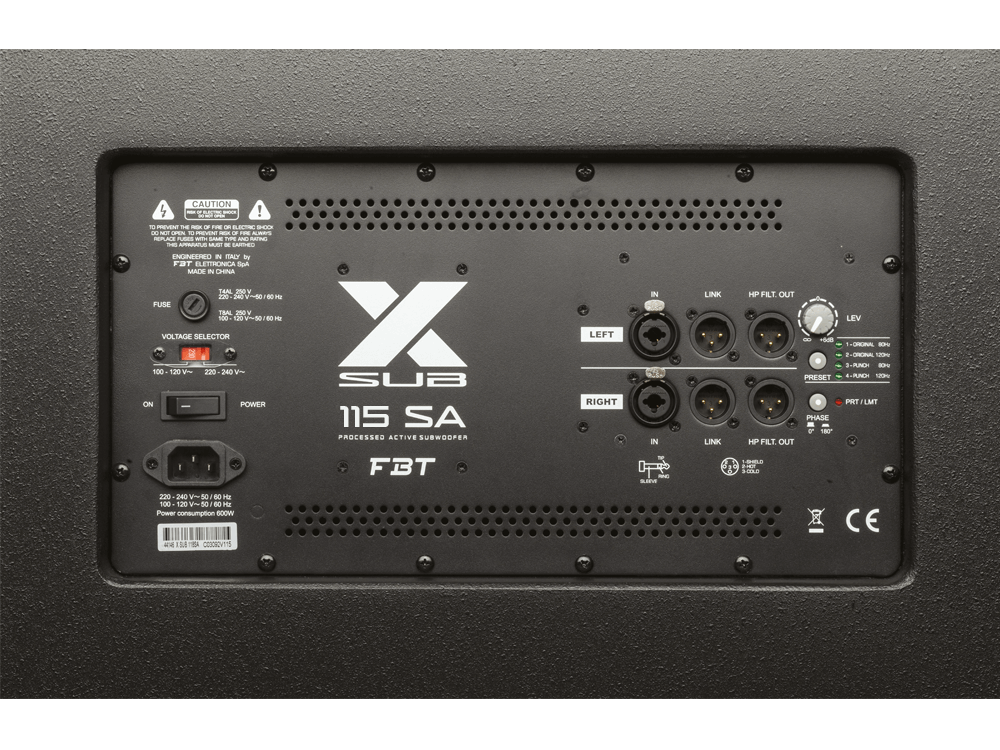

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.

  • Active subwoofer
  • 15" woofer / 3" voice coil
  • Frequency response 42Hz - 120Hz
  • 4 DSP presets
  • 1200W Class D power amplifier
  • 15mm / 0,59" birch plywood cabinet
  • Optional 100mm / 3,93" transport wheels
  • M20 stand pole mount
TECHNICAL SPECIFICATIONS
  • CODE:44145
  • CONFIGURATION:bass reflex
  • BUILT-IN AMPLIFIER LF/HF:1200W
  • BUILT-IN AMPLIFIER PEAK LF/HF:
  • FREQUENCY RESPONSE:42Hz - 120Hz (@-6dB)
  • LOW FREQUENCY WOOFER:15” / 3” coil
  • MAXIMUM SPL CONT/PEAK:135dB half space
  • DISPERSION:omnidirectional
  • INPUT IMPEDANCE:22 kOhm
  • CROSSOVER FREQUENCY:
  • AC POWER REQUIREMENTS:
  • INPUT CONNECTOR:XLR with loop
  • POWER CORD:9.8ft / 3mt
  • NET DIMENSION (WXHXD):17,91 x 23,07 x 22,44 / 455 x 586 x 570
  • NET WEIGHT:66,13 lbs / 30kg
