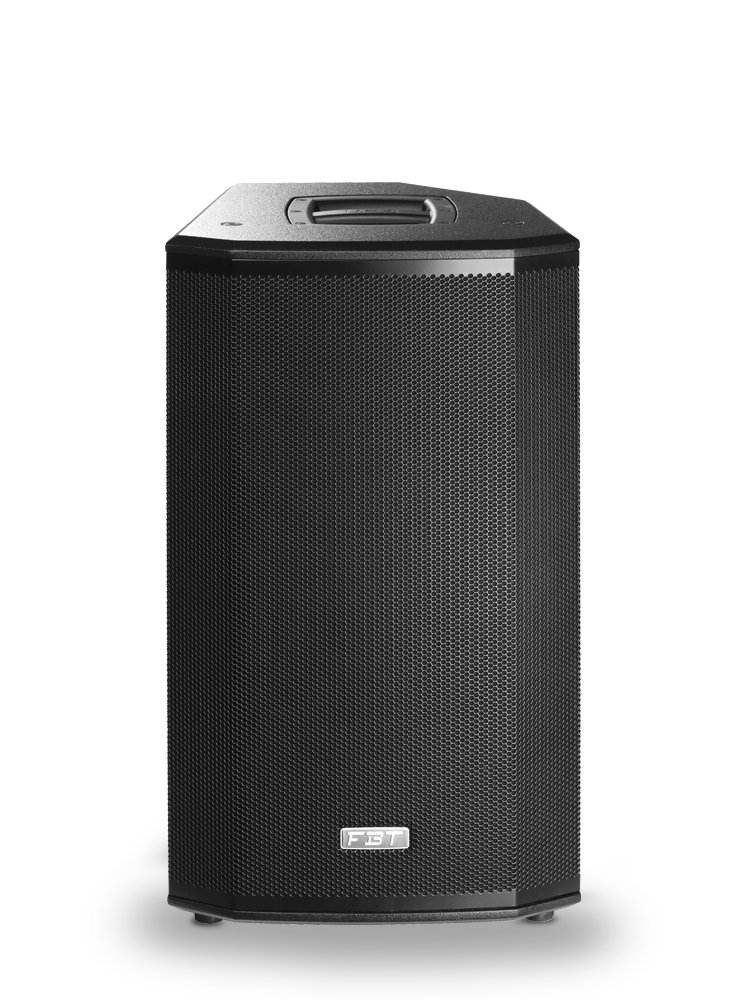

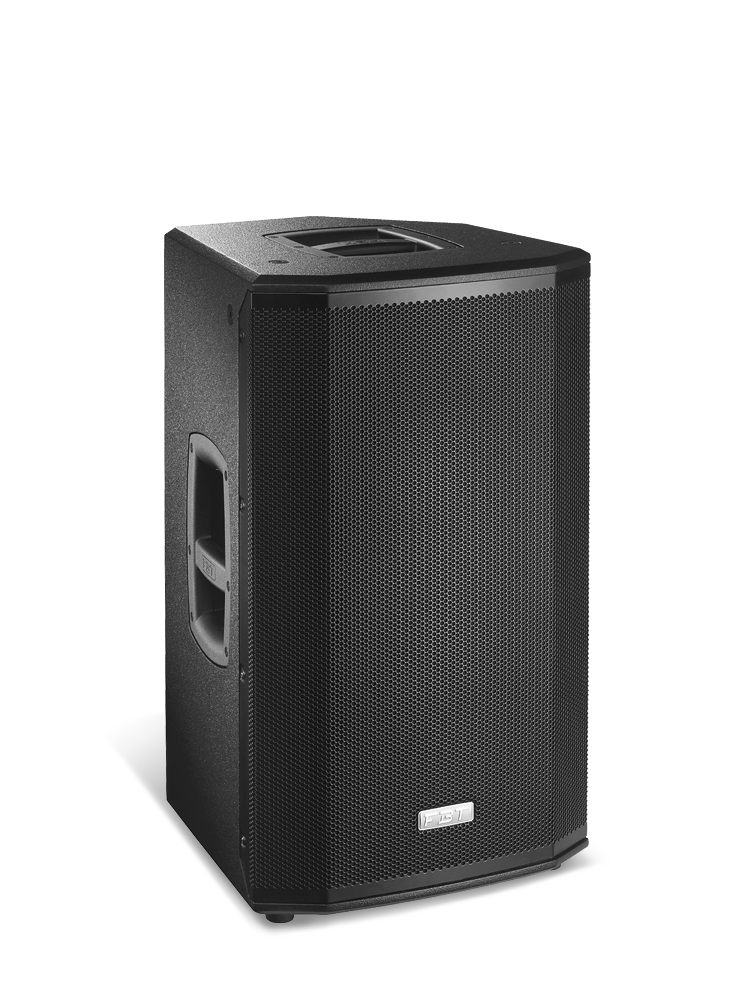

FBT Ventis 112a PROCESSED 12" ACTIVE SPEAKER 700W +200W RMS

 The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

•  ORIGINAL / LIVE The renowned, smooth FBT sound
•  VOCAL A special EQ setting to maximise speech intelligibility
• DJ Designed to keep the energy high and your audience dancing
• TOURING The reliability and the roar of the industry’s most popular touring systems
•  LOUDNESS The ultimate preset for listening at a medium or low volume
• WARM A special setting to emphasise full-bodied, low-mid frequencies.
• 2-way, bi-amplified, bass reflex design

• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
•  15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
•  High efficiency switch mode power supply
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
•  320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT
• 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
•  Frequency response from 48Hz to 20 kHz
•  80°H x 50°V Constant Directivity Rotatable Horn
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
•  Speaker stand socket, two aluminium handles
• 45° monitor taper

Technical Specifications

• CONFIGURATION:2 way

  • BUILT-IN AMPLIFIER LF/HF:700/200 W RMS
  • FREQUENCY RESPONSE:48Hz - 20KHz -6dB
  • LOW FREQUENCY WOOFER:12 - 2.5 coil inch
  • HIGH FREQUENCY DRIVER:1 - 1.4 coil inch
  • MAXIMUM SPL CONT/PEAK:126/133 dB
  • DISPERSION:80° x 50° rotatable HxV
  • INPUT IMPEDANCE:22 Kohm
  • INPUT CONNECTOR:XLR with loop, RCA ST
  • POWER CORD:5/16.4 m/ft
  • NET DIMENSION (WXHXD):387x665x380 / 12.23x26.18x14.96 mm/inch
  • NET WEIGHT:20.6/45.41 Kg/lb
  • TRANSPORT DIMENSION (WXHXD):500x765x470 / 19.68x30.11x18.50 mm/inch
  • TRANSPORT WEIGHT:23.1/50.92 Kg/lb
