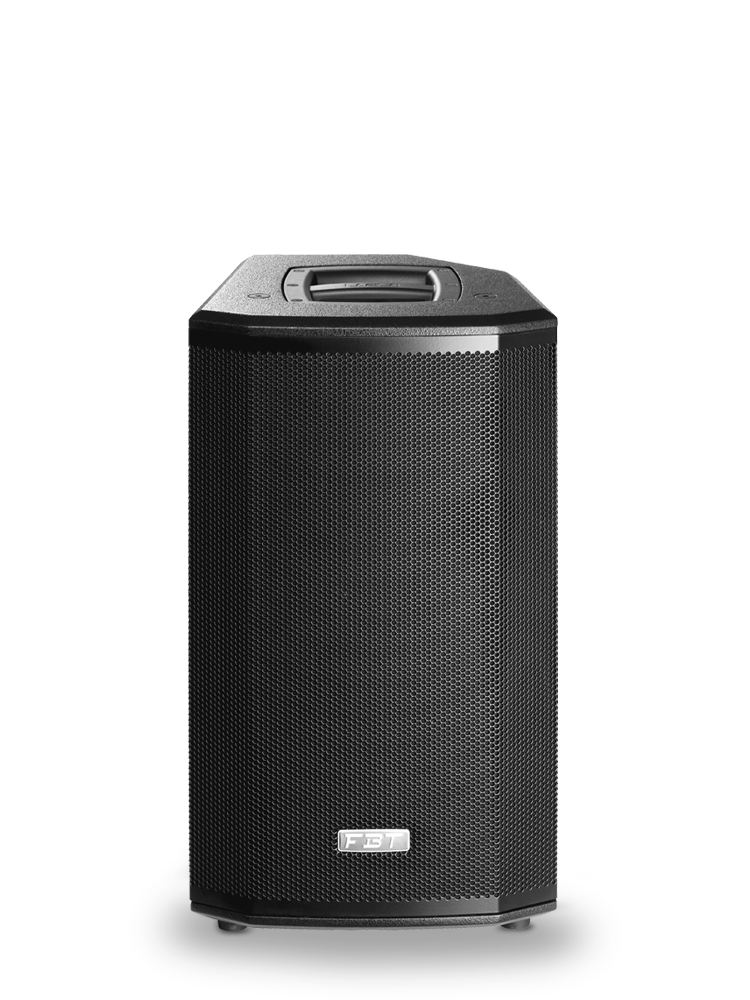

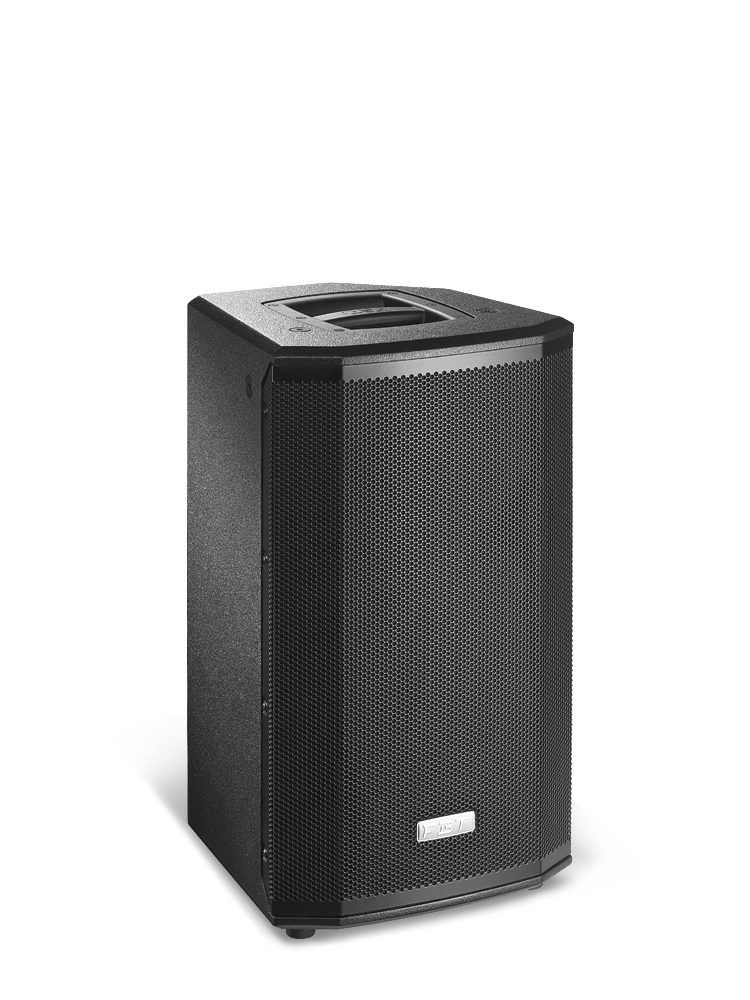

FBT Ventis 110a -PROCESSED ACTIVE SPEAKER 700W + 200W RMS - 131DB SPL

FBT Ventis 110a -PROCESSED ACTIVE SPEAKER 700W + 200W RMS - 131DB SPL

$1,691.00 USD
$1,691.00 USD
Sale Sold out
Shipping calculated at checkout.
The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
  • ORIGINAL / LIVE The renowned, smooth FBT sound
  • VOCAL A special EQ setting to maximise speech intelligibility
  • DJ Designed to keep the energy high and your audience dancing
  • TOURING The reliability and the roar of the industry’s most popular touring systems
  • LOUDNESS The ultimate preset for listening at a medium or low volume
  • WARM A special setting to emphasise full-bodied, low-mid frequencies.


  • 2-way, bi-amplified, bass reflex design
  • Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
  • Digital Signal Processor with graphic display
  •  15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
  •  High efficiency switch mode power supply
  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  •  250mm (10”) LF woofer with 50mm (2”) voice coil, custom made for FBT
  • 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
  •  Frequency response from 58Hz to 20 kHz
  •  80°H x 50°V Constant Directivity Rotatable Horn
  • 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
  • Speaker stand socket, one aluminium handle

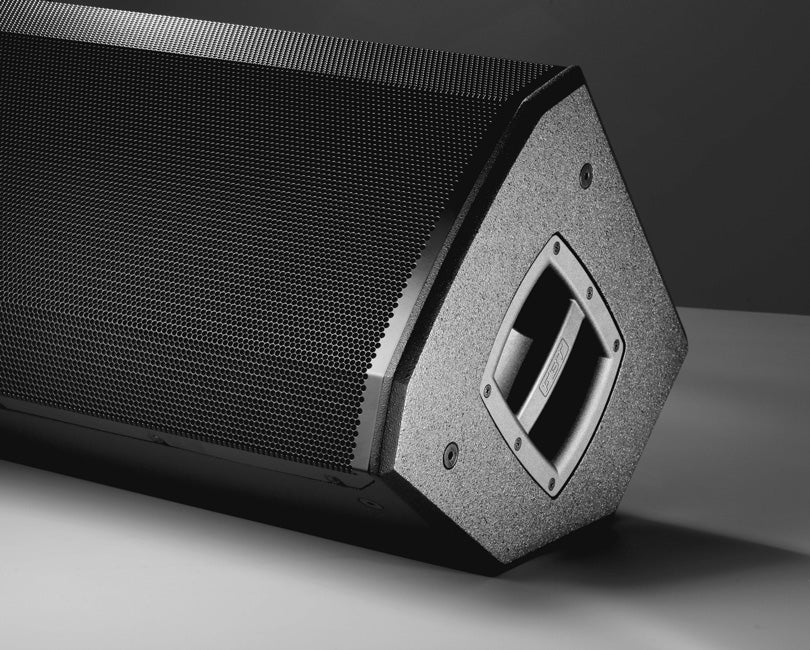

  •  45° monitor taper
TECHNICAL SPECIFICATIONS
  • CODE:40640
  • CONFIGURATION:2 way
  • BUILT-IN AMPLIFIER LF/HF:700/200 W RMS
  • FREQUENCY RESPONSE:58Hz - 20KHz -6dB
  • LOW FREQUENCY WOOFER:10 - 2 coil inch
  • HIGH FREQUENCY DRIVER:1 - 1.4 coil inch
  • MAXIMUM SPL CONT/PEAK:124/131 dB
  • DISPERSION:80° x 50° rotatable HxV
  • INPUT IMPEDANCE:22 Kohm
  • INPUT CONNECTOR:XLR with loop, RCA ST
  • POWER CORD:5/16.4 m/ft
  • NET DIMENSION (WXHXD):329x575x325 / 12.95x22.63x12.79 mm/inch
  • NET WEIGHT:15.6/34.39 Kg/lb
  • TRANSPORT DIMENSION (WXHXD):420x675x400 / 16.53x26.57x15.74 mm/inch
  • TRANSPORT WEIGHT:18.1/39.90 Kg/lb
