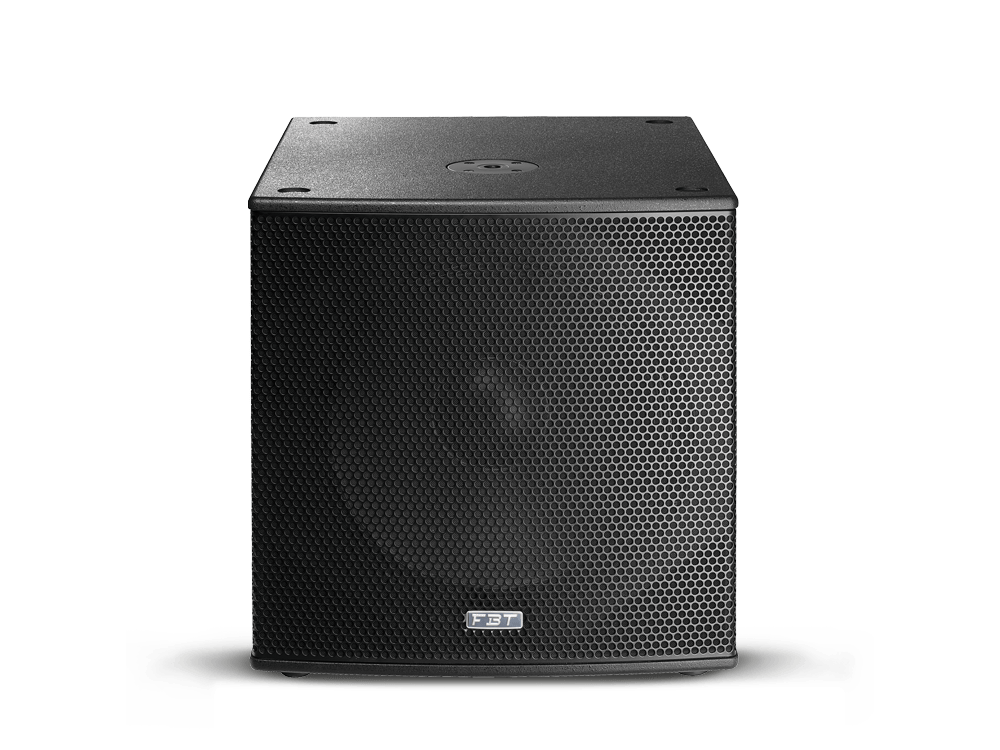

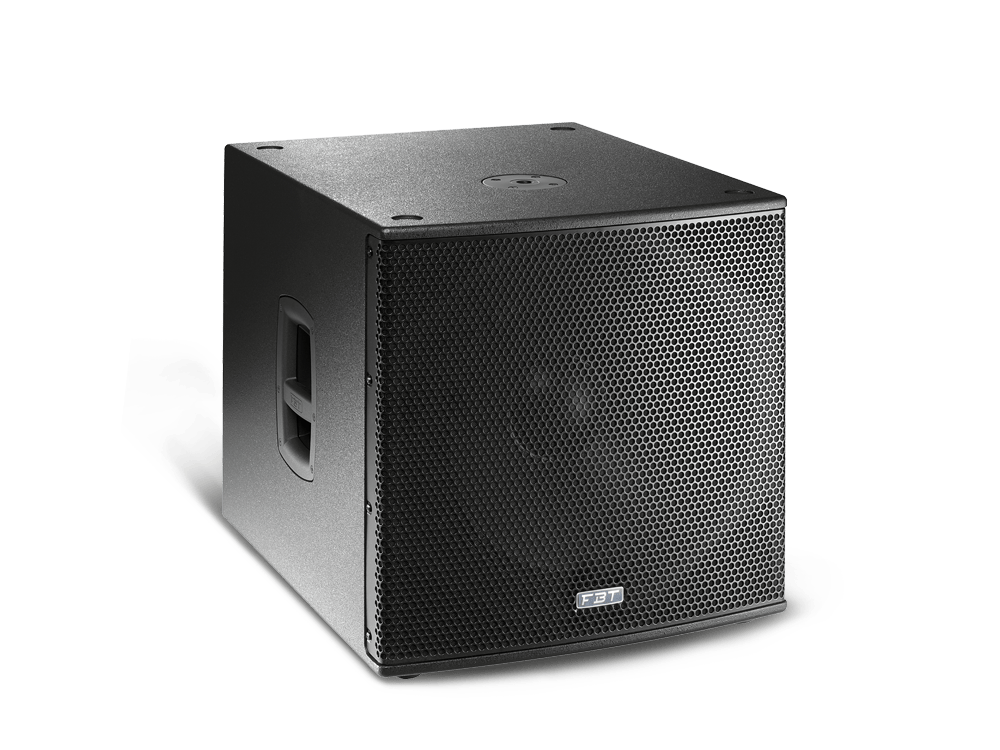

FBT SUBLINE 118SA PROCESSED ACTIVE SUBWOOFER 1200W RMS - 134/137DB SPL
FBT SUBLINE 118SA PROCESSED ACTIVE SUBWOOFER 1200W RMS - 134/137DB SPL
Regular price
$2,691.00 USD
Regular price
Sale price
$2,691.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Bass-reflex design subwoofer
- 460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
- Frequency response from 33Hz - 100Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
- Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
TECHNICAL SPECIFICATIONS
- CODE:41221
- CONFIGURATION:1 way
- BUILT-IN AMPLIFIER LF/HF:1200 W RMS
- BUILT-IN AMPLIFIER PEAK LF/HF:2400 W
- FREQUENCY RESPONSE:33Hz-100Hz -6dB
- LOW FREQUENCY WOOFER:18 - 3 coil inch
- MAXIMUM SPL CONT/PEAK:134/137 half-space dB
- DISPERSION:omnidirectional HxV
- INPUT IMPEDANCE:22 Kohm
- CROSSOVER FREQUENCY:100Hz KHz
- AC POWER REQUIREMENTS:800 VA
- INPUT CONNECTOR:stereo XLR with loop
- POWER CORD:7/16.4 m/ft
- NET DIMENSION (WXHXD):555x572x666 / 21.8x22.5x26.2 mm/inch
- NET WEIGHT:44.5/98.1 kg/lb
- TRANSPORT DIMENSION (WXHXD):800x642x800 / 31.5x25.3x31.5 mm/inch
- TRANSPORT WEIGHT:54.5/120.1 Kg/lb
