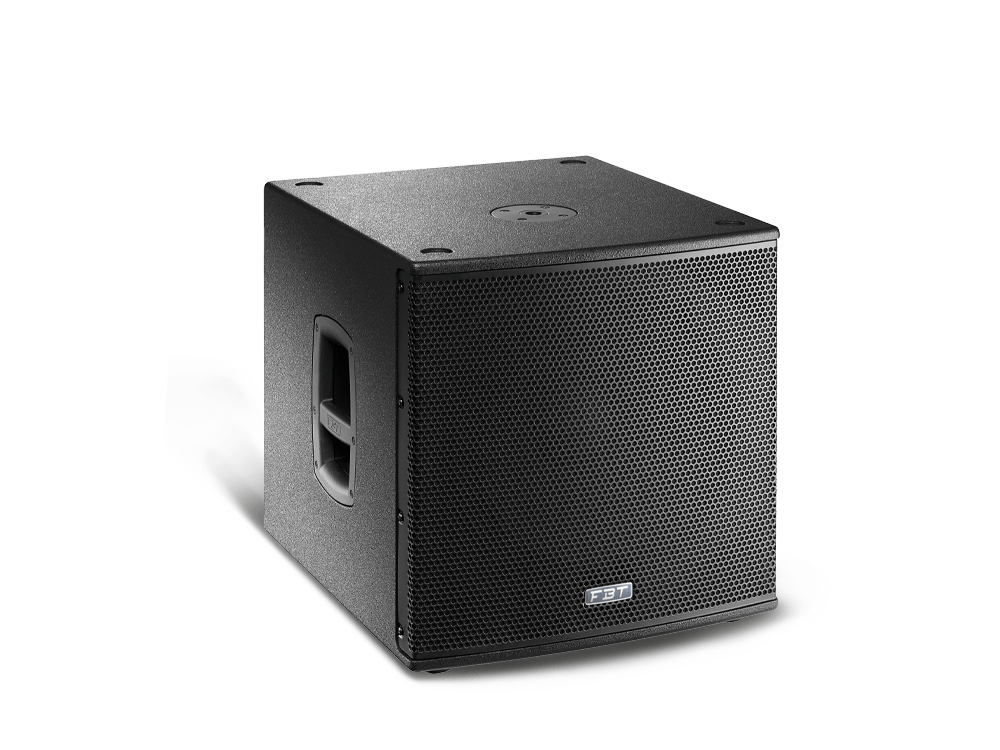

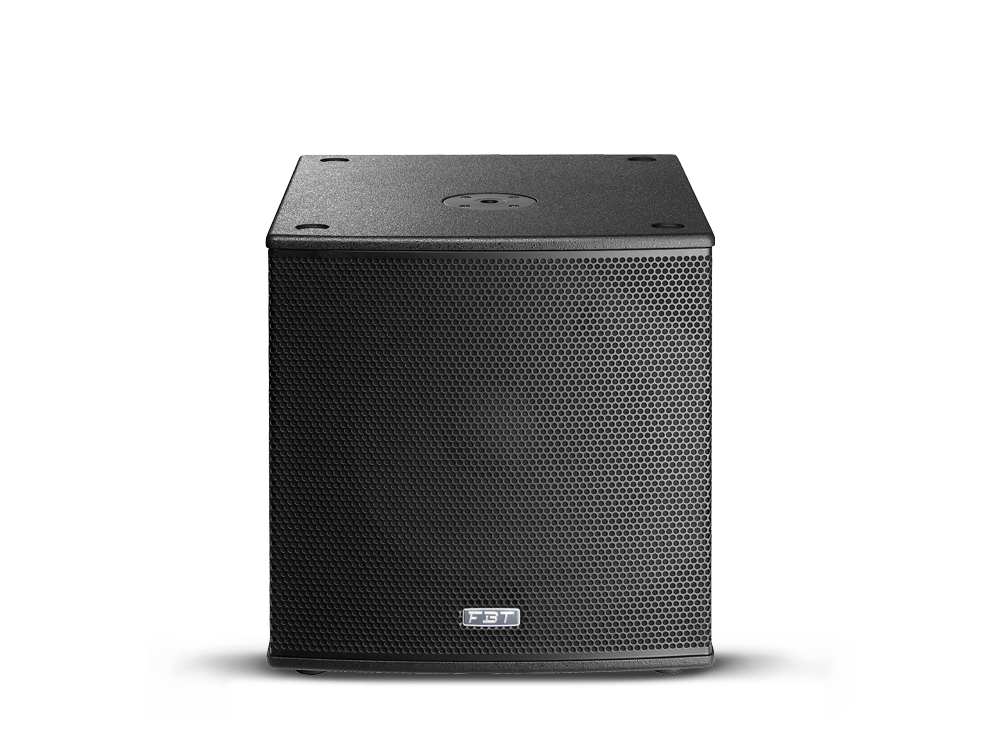

FBT SUBLINE 115SA PROCESSED ACTIVE SUBWOOFER 700W RMS - 132/135DB SPL
FBT SUBLINE 115SA PROCESSED ACTIVE SUBWOOFER 700W RMS - 132/135DB SPL
Regular price
$1,850.00 USD
Regular price
Sale price
$1,850.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Bass-reflex design with high SPL and punch
- 380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

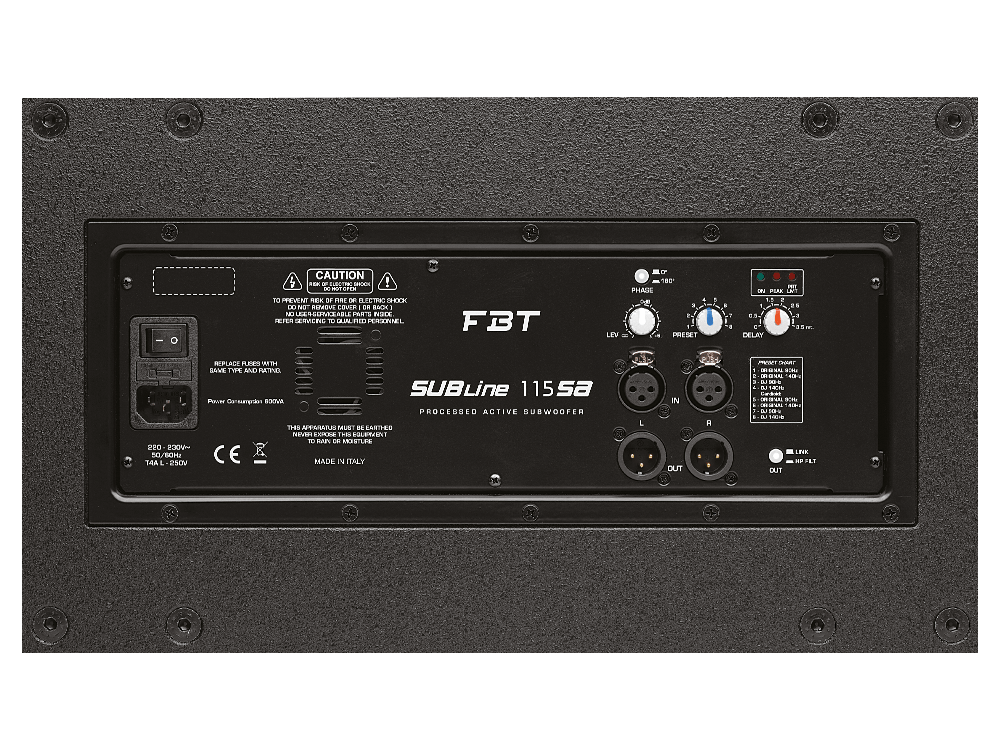

- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
TECHNICAL SPECIFICATIONS
- CODE:41222
- CONFIGURATION:1 way
- BUILT-IN AMPLIFIER LF/HF:700 W RMS
- BUILT-IN AMPLIFIER PEAK LF/HF:1400 W
- FREQUENCY RESPONSE:38Hz - 140Hz -6dB
- LOW FREQUENCY WOOFER:15 inch
- MAXIMUM SPL CONT/PEAK:132/135 Half-space dB
- DISPERSION:omnidirectional HxV
- INPUT IMPEDANCE:22 Kohm
- CROSSOVER FREQUENCY:90 or 140Hz KHz
- AC POWER REQUIREMENTS:640 VA
- INPUT CONNECTOR:stereo XLR with loop, HP out
- POWER CORD:6/19.7 m/ft
- NET DIMENSION (WXHXD):500x517x570 / 19.7x20.3x22.4 mm/inch
- NET WEIGHT:28/61.7 kg/lb
- TRANSPORT DIMENSION (WXHXD):600x617x670 / 23.6x24.3x26.4 mm/inch
- TRANSPORT WEIGHT:32/70.5 Kg/lb
