FBT ProMax114 A 14" Powered Speaker
FBT ProMax114 A 14" Powered Speaker
Regular price
$1,691.00 USD
Regular price
Sale price
$1,691.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features:
- 2-way, bi-amplified, bass reflex design cabinet
- Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
- Digital signal processor with graphic display
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
- 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn

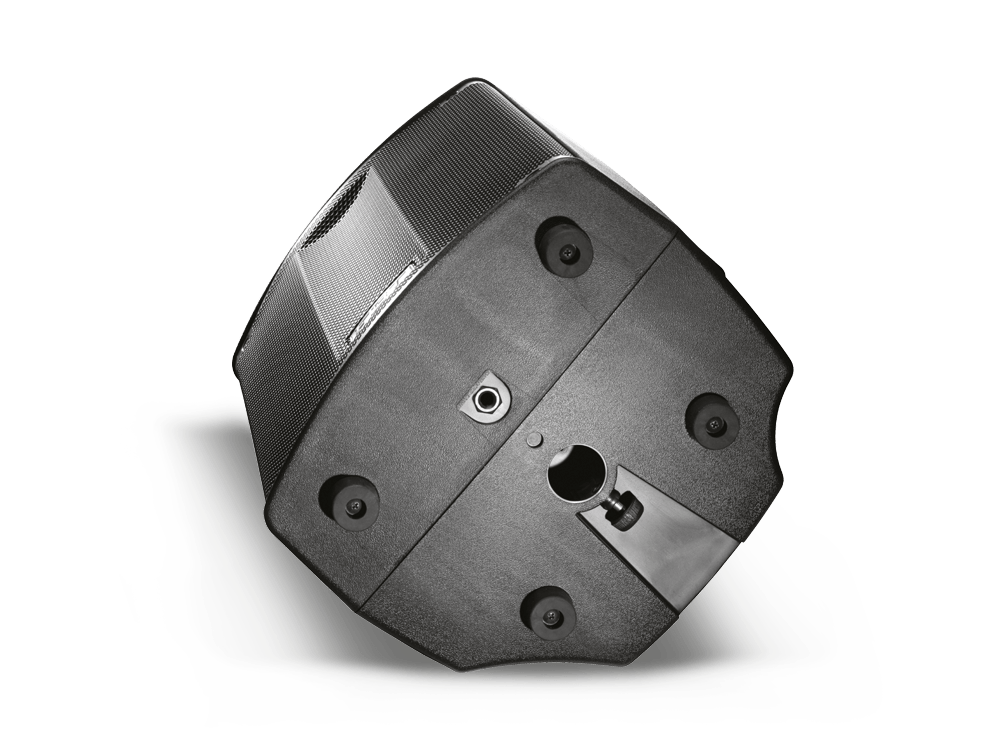

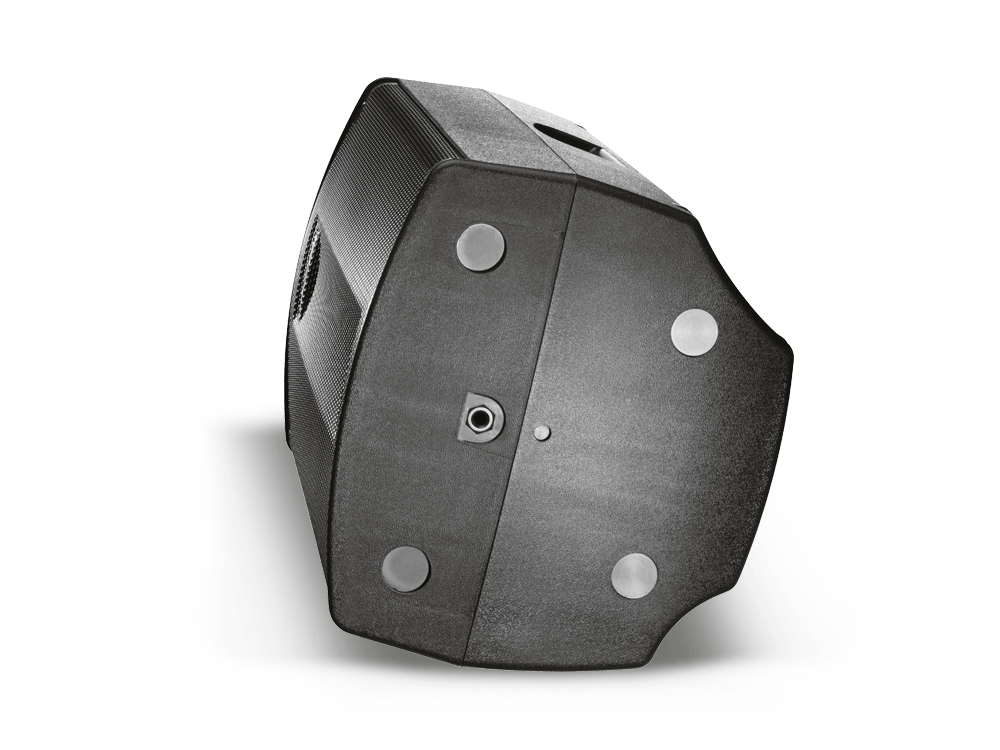

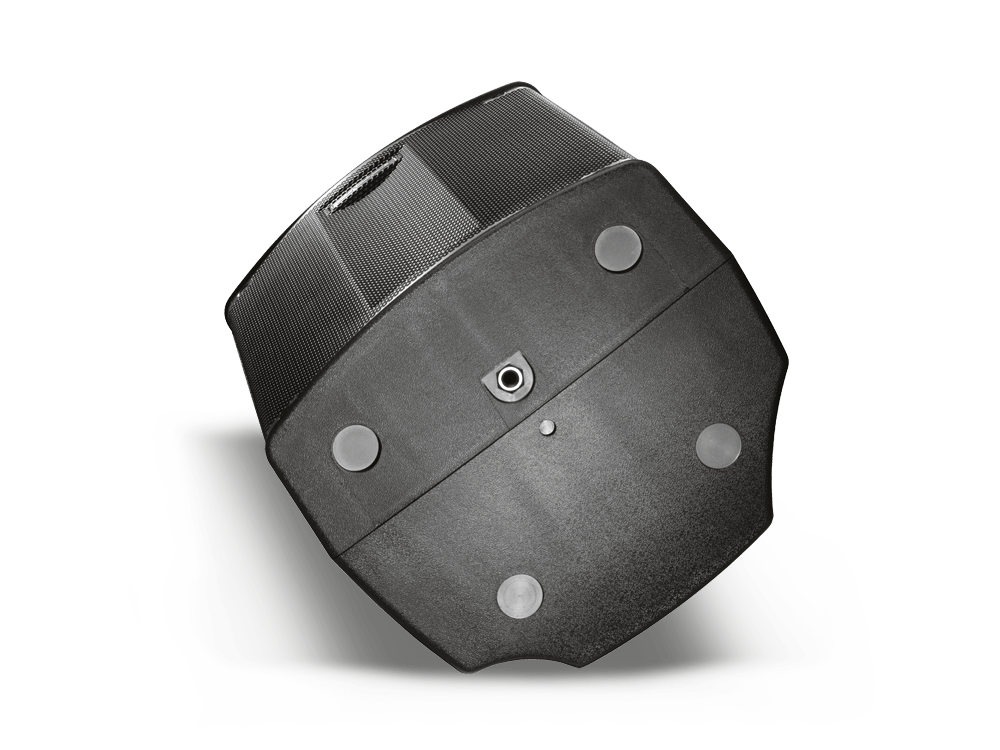

- Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
- 355 mm (14”) LF neodymium magnet woofer with 75mm (3”) voice coil, custom made for FBT by B&C
- 35 mm (1,4’’) exit throat B&C HF compression driver with 64 mm (2,5”) voice coil
- Frequency response from 45Hz to 20 kHz
- Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
- Full grille design with black acoustic cloth
- Extremely light, only 17,4 kg / 40.78 lb
TECHNICAL SPECIFICATIONS
- CONFIGURATION:2 way
- BUILT-IN AMPLIFIER LF/HF:700/200 W RMS
- FREQUENCY RESPONSE:45Hz-20KHz -6dB
- LOW FREQUENCY WOOFER:14 - 3 coil neodymium inch
- HIGH FREQUENCY DRIVER:1.4 - 2.5 coil inch
- MAXIMUM SPL CONT/PEAK:127.5 / 135.5 dB
- DISPERSION:90° x 60° HxV
- INPUT IMPEDANCE:22 Kohm
- INPUT CONNECTOR:XLR with loop, RCA ST
- POWER CORD:5/16.4 m/ft
- NET DIMENSION (WXHXD):402x644x345 / 15.8x25.4x13.6 mm/inch
- NET WEIGHT:17.5/40.78
- TRANSPORT DIMENSION (WXHXD):500x745x440 / 19.7x29.3x17.3 mm/inch
- TRANSPORT WEIGHT:20.1/44.31 Kg/lb
