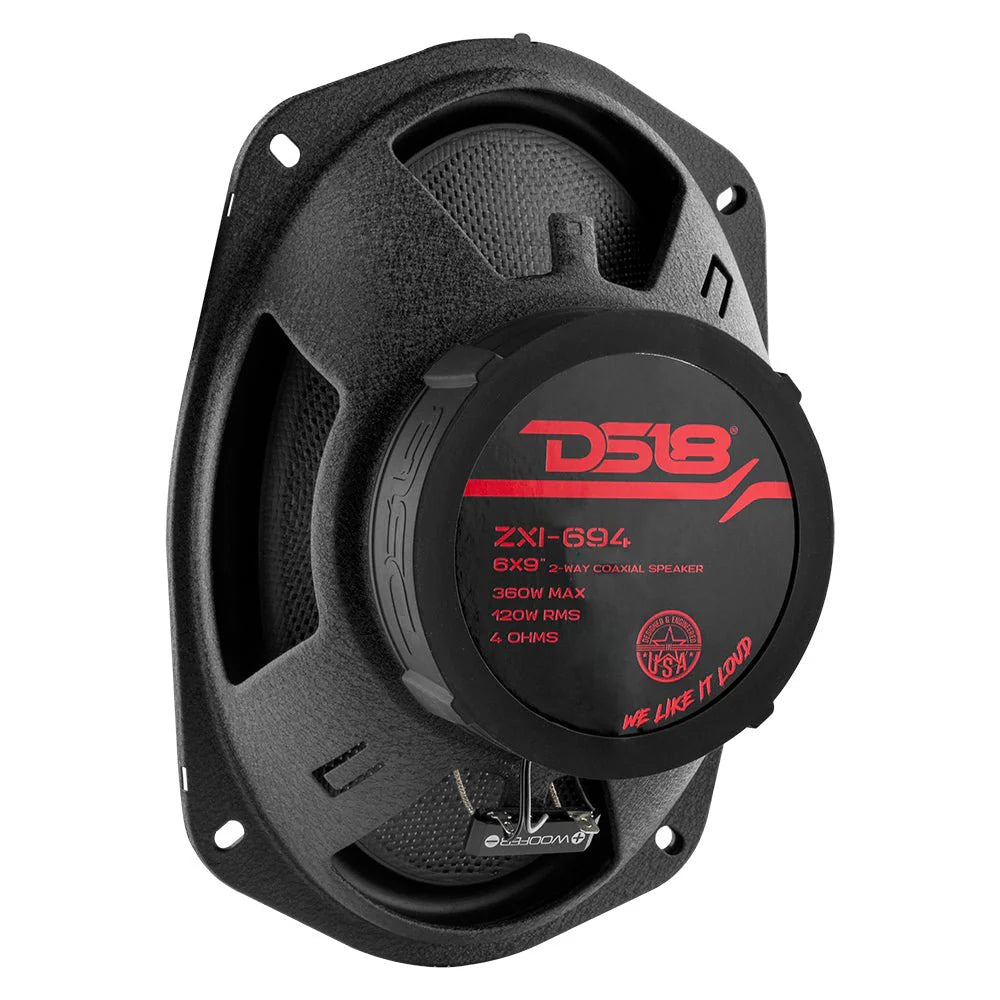

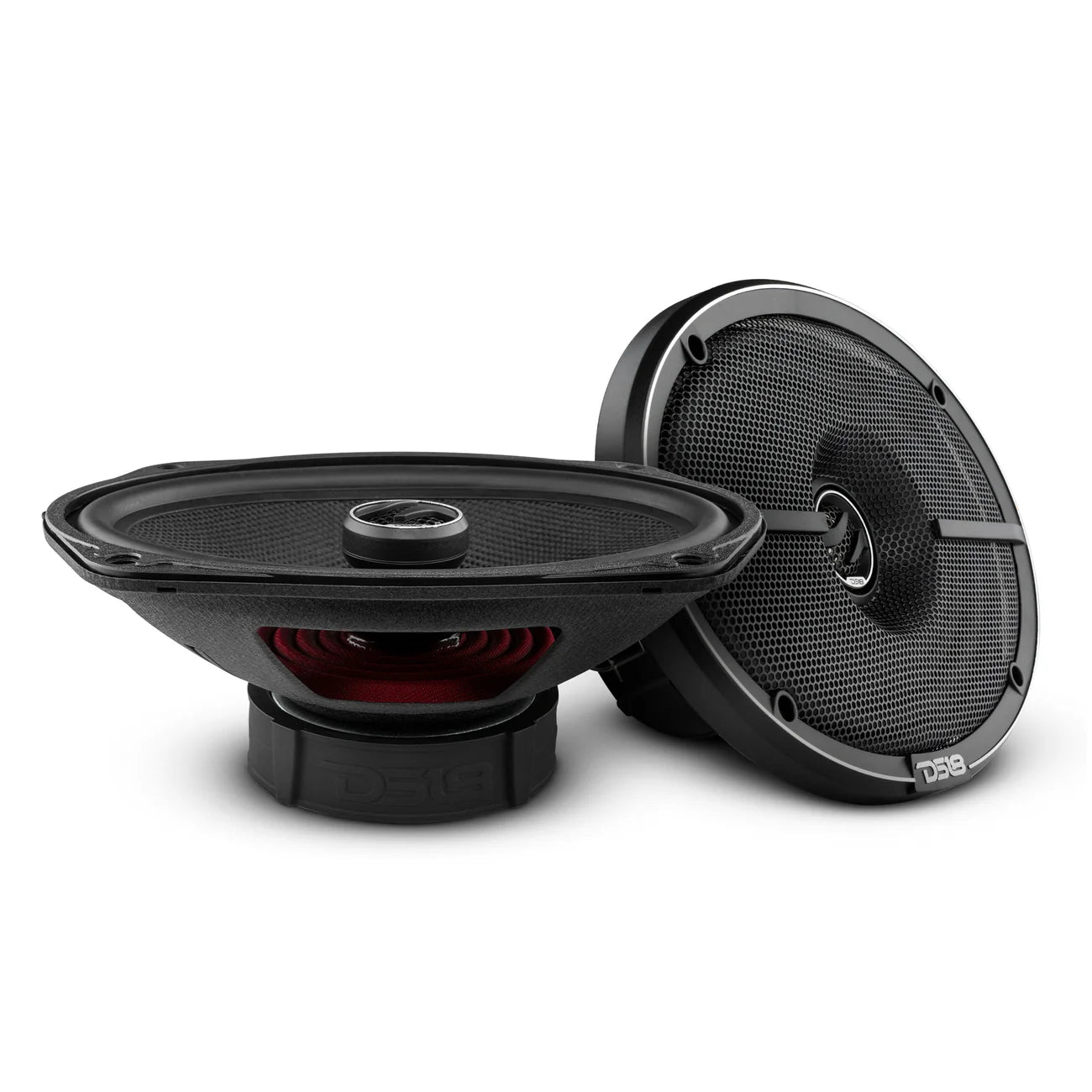

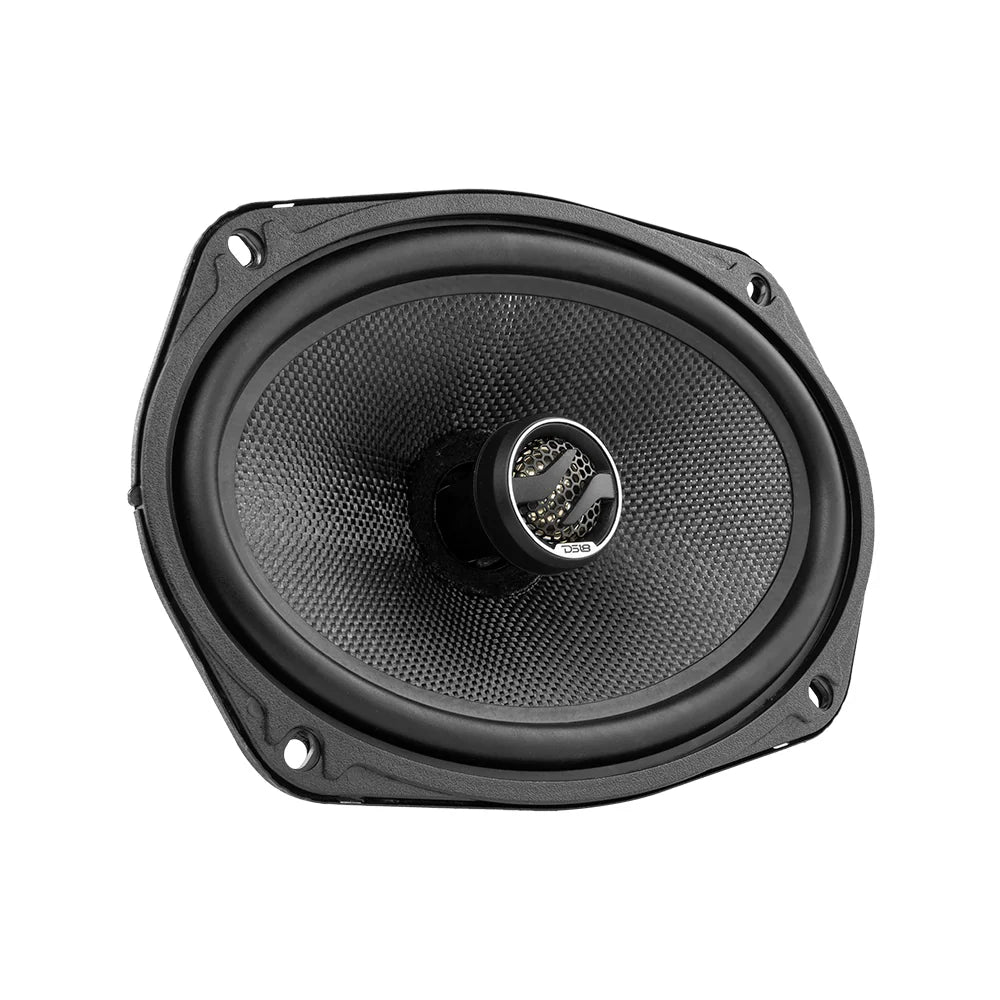

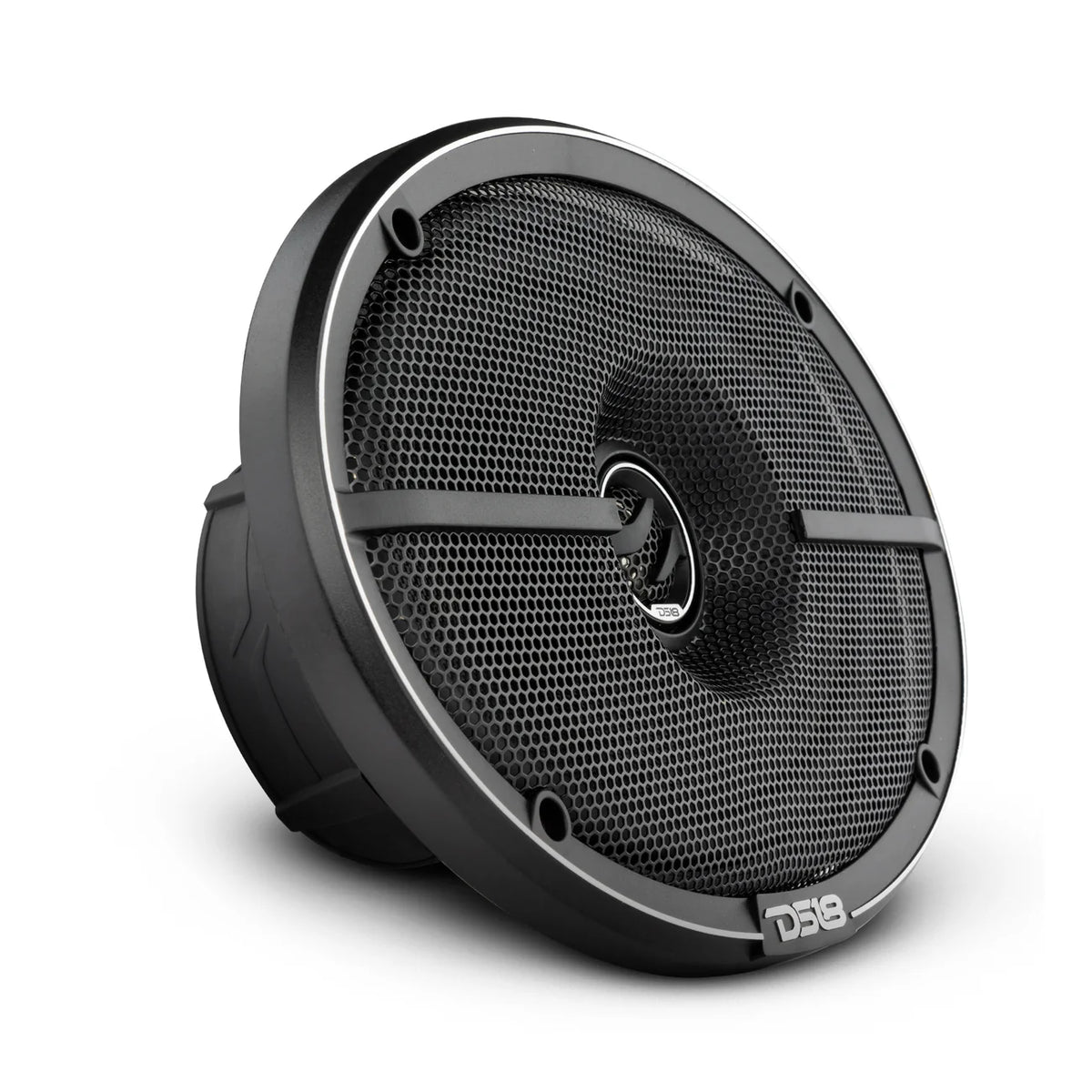

DS18- ZXI 6x9" 2-Way Coaxial Speakers with Kevlar Cone | 120W RMS 4-Ohm

SPECS

SKU
ZXI-694
Nominal Diameter
6X9" / 162*235mm
Nominal Impedance
4 ohm
RMS Power Handing
120W
MAX Power Handing
360W
Sensitivity (1w/1m)
92dB
Frequency Response
31.5Hz-20KHz
Recommended HI Pass Crossover
50Hz
Number of ways
2-Way

MIDRANGE

Voice Coil Diameter
1.2" / 30.4mm
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
550g

TWEETER

Nominal Diameter
1" (25.4mm)
Voice Coil Diameter
0.8"(20.4mm)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5g

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
17.52L
Excursion (one way) Xmax
3.3mm
Free Air Resonance Fs
58Hz
Mechanical Factor Qms
5.77
Electrical Factor Qes
1.18
Total Factor Qts
0.98
Mechanical Mass Mms
23.44g
Mechanical Compliance Cms
286mm/N
BL Factor Bl
5.18
Voice Coil Inductance Le
178mH
Cone Area Sd
207.7cm2
DC Resistance Re
3.5 ohm
Mechanical Mass w/o air Mmd
20g

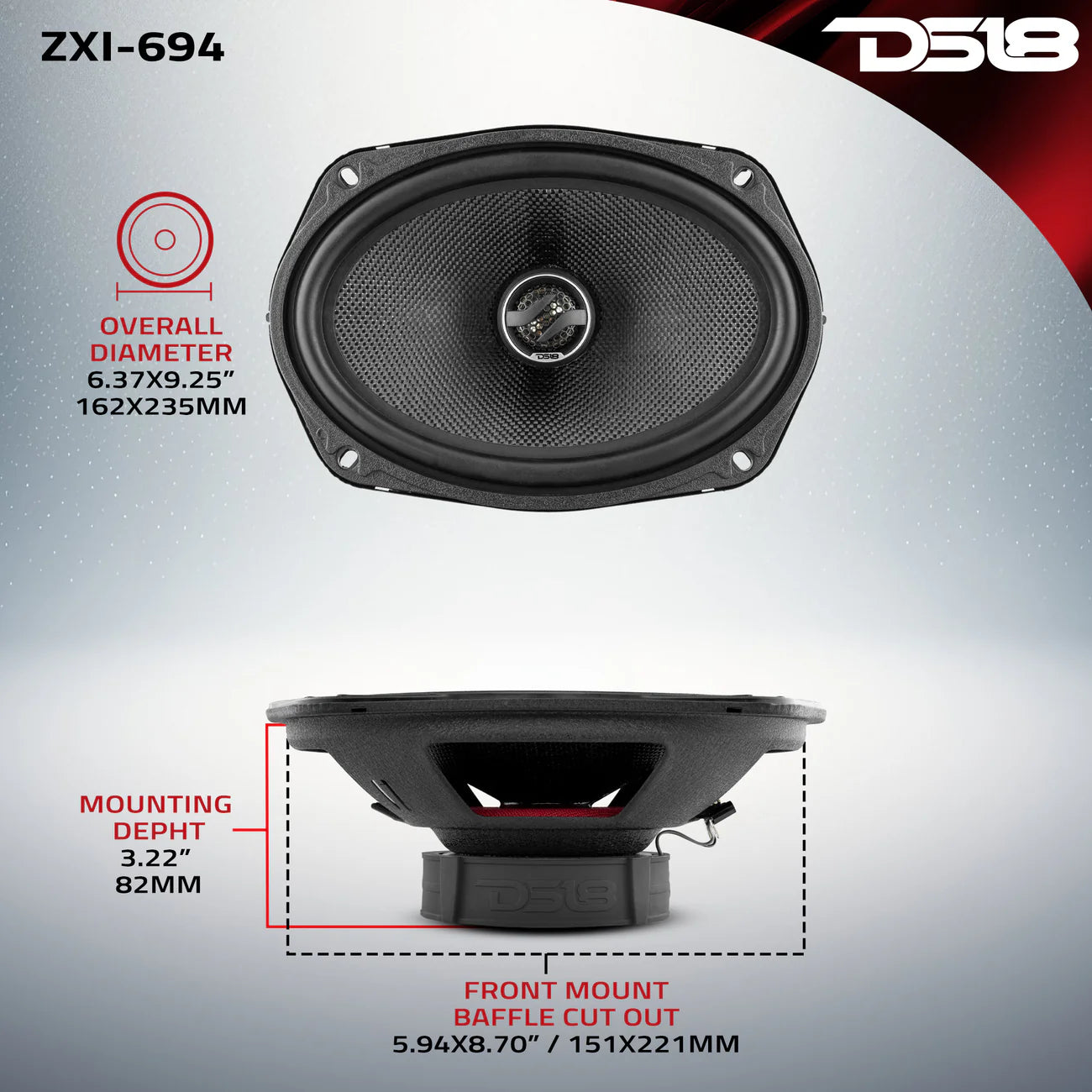

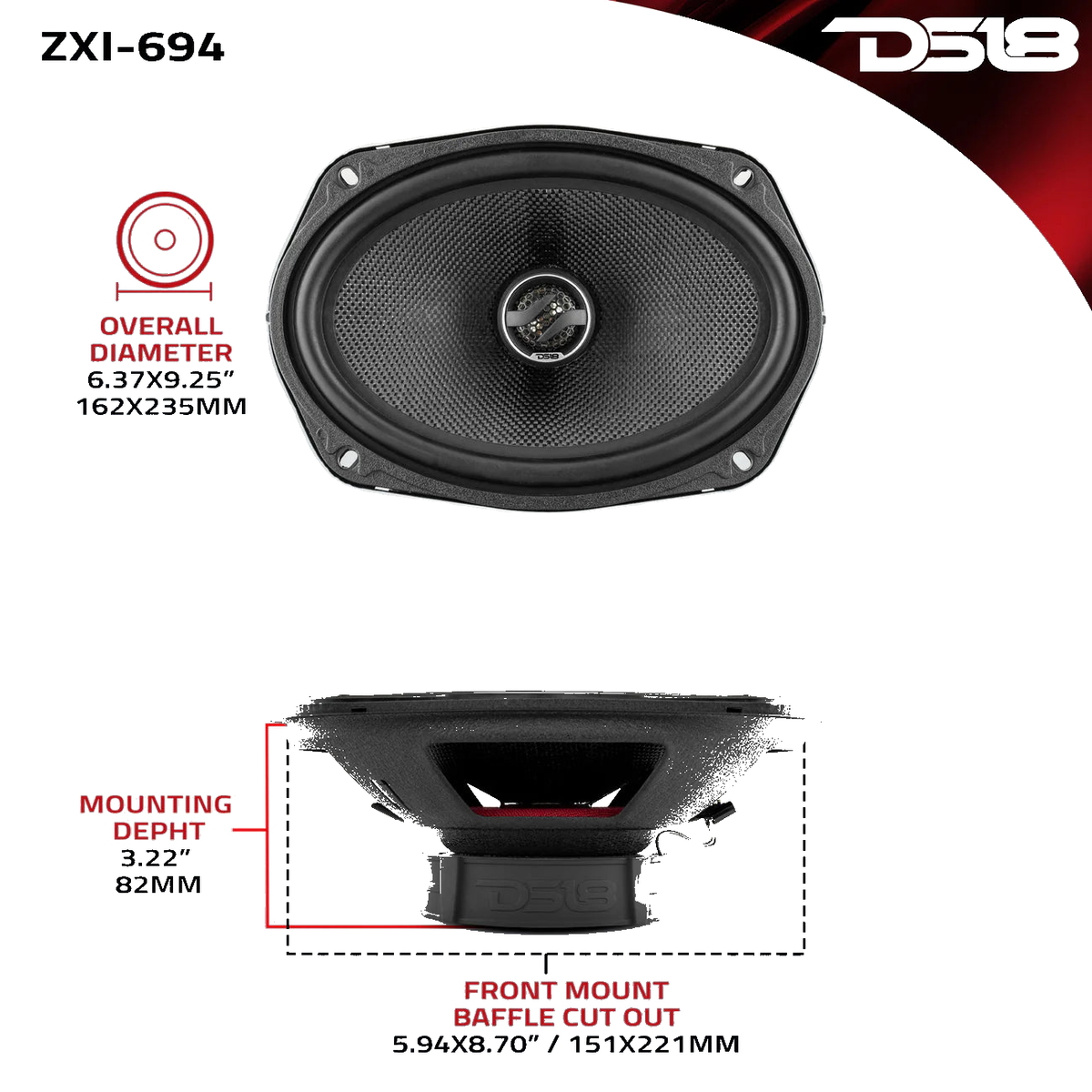

MEASUREMENT

Overall Diameter
6.37X9.25" / 162*235mm
Overall Depth
3.66" / 93mm
Front Mount Baffle Cutout
5.94x8.70" / 151*221mm
Mouting Depth
3.22" / 82mm
Motor Diameter
4.09" / 104mm

SHIPPING INFO

Gross Single Unit Weight
1.26KG
Single Unit Box Diamensions W x L x H
415*285*115mm
Quantity of Units in Master Carton
4PRS/CTN
Gross Master Carton Weight
13.3KG
Master Carton Dimensions W x L x H
595*430*250mm
