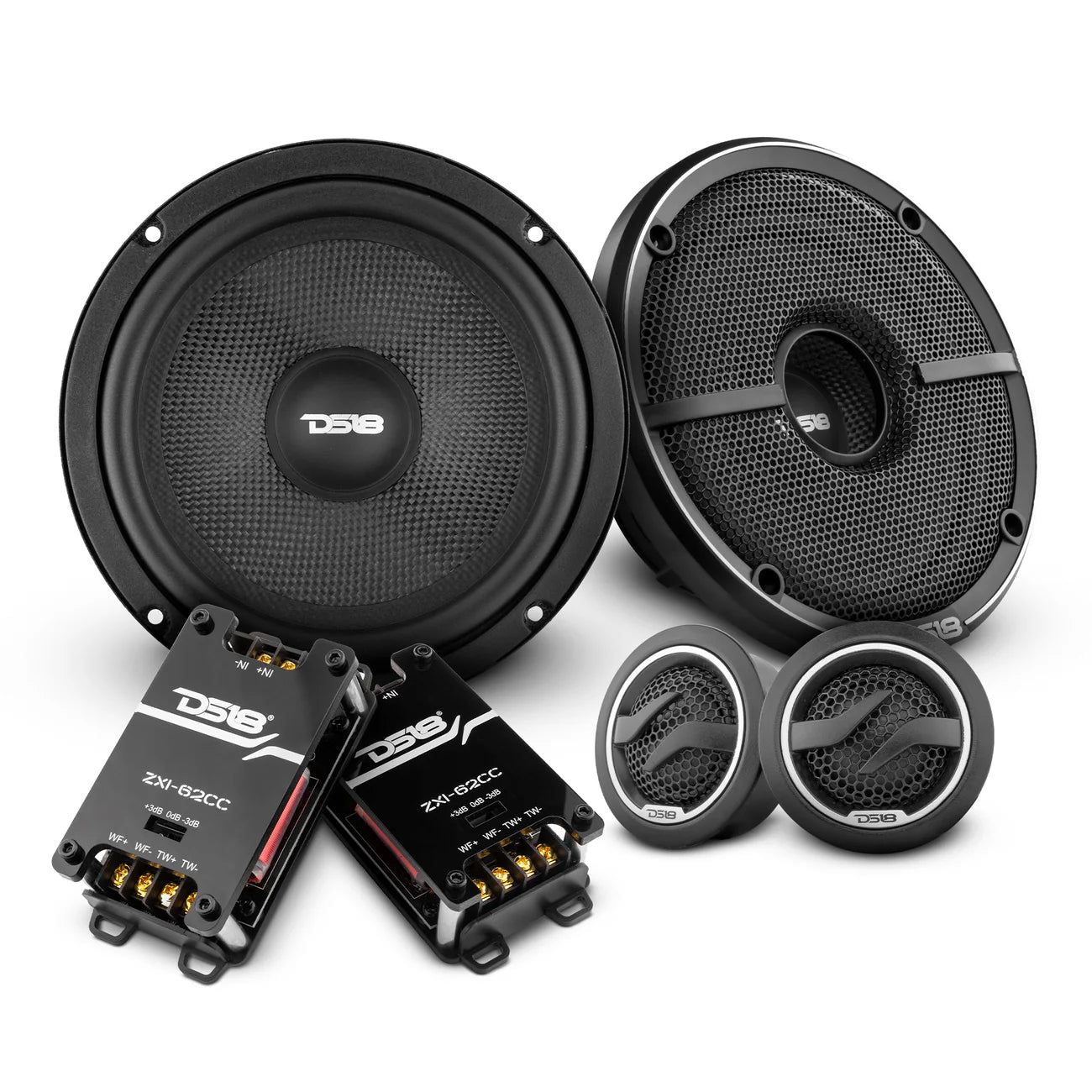

SKU ZXI-62C Nominal Diameter 6.5 Inches / 165 mm Nominal Impedance 4 ohm RMS Power Handing 120 WATTS MAX Power Handing 240 WATTS Sensitivity 88 dB Frequency Response 40 Hz - 20 KHz Recommended HI Pass 60 Hz Speaker Type 2-Way

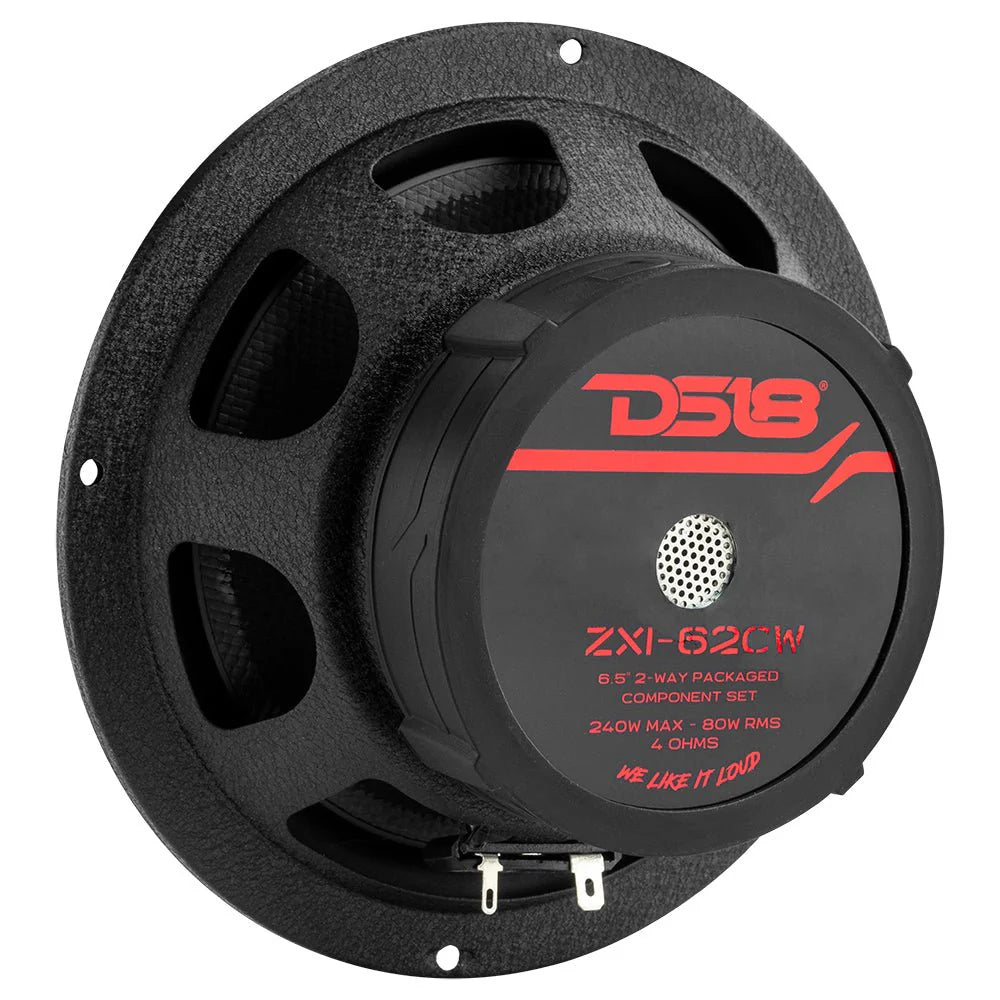

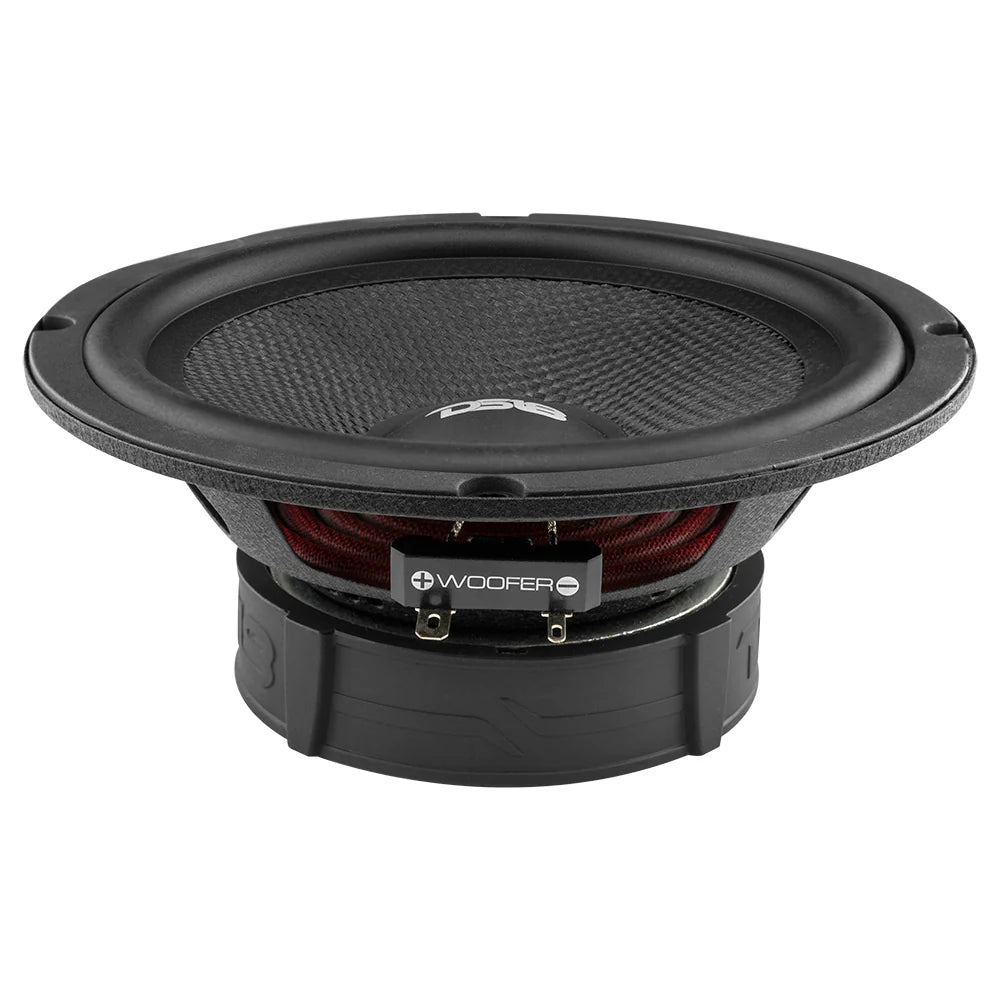

WOOFER

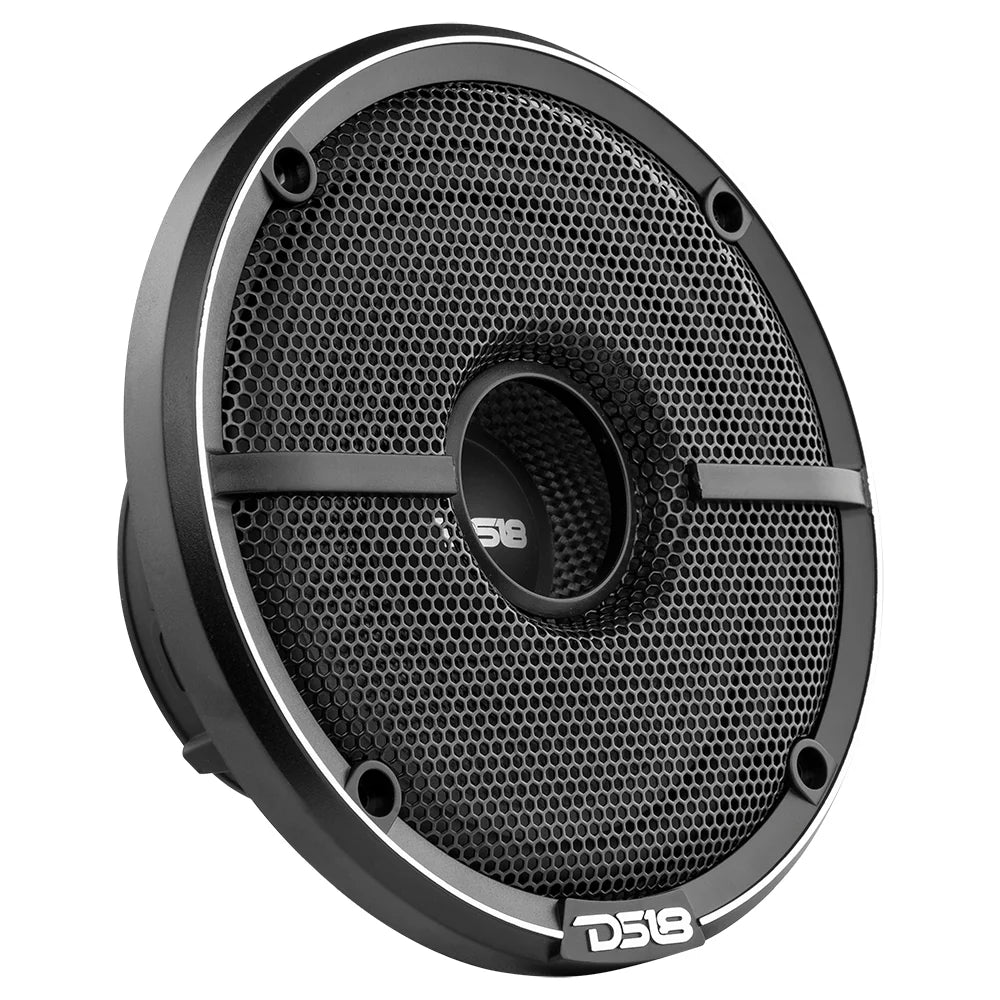

Voice Coil Diameter 25.5 mm (1 inch) Voice Coil Former Material KSV Winding Material EISV Cone Material Glass fiber Surround Material Rubber Basket Material Steel Magnet Material Barium Ferrite Magnet Weight 14.4 oz / 410 g Grill Included Yes Pair Yes

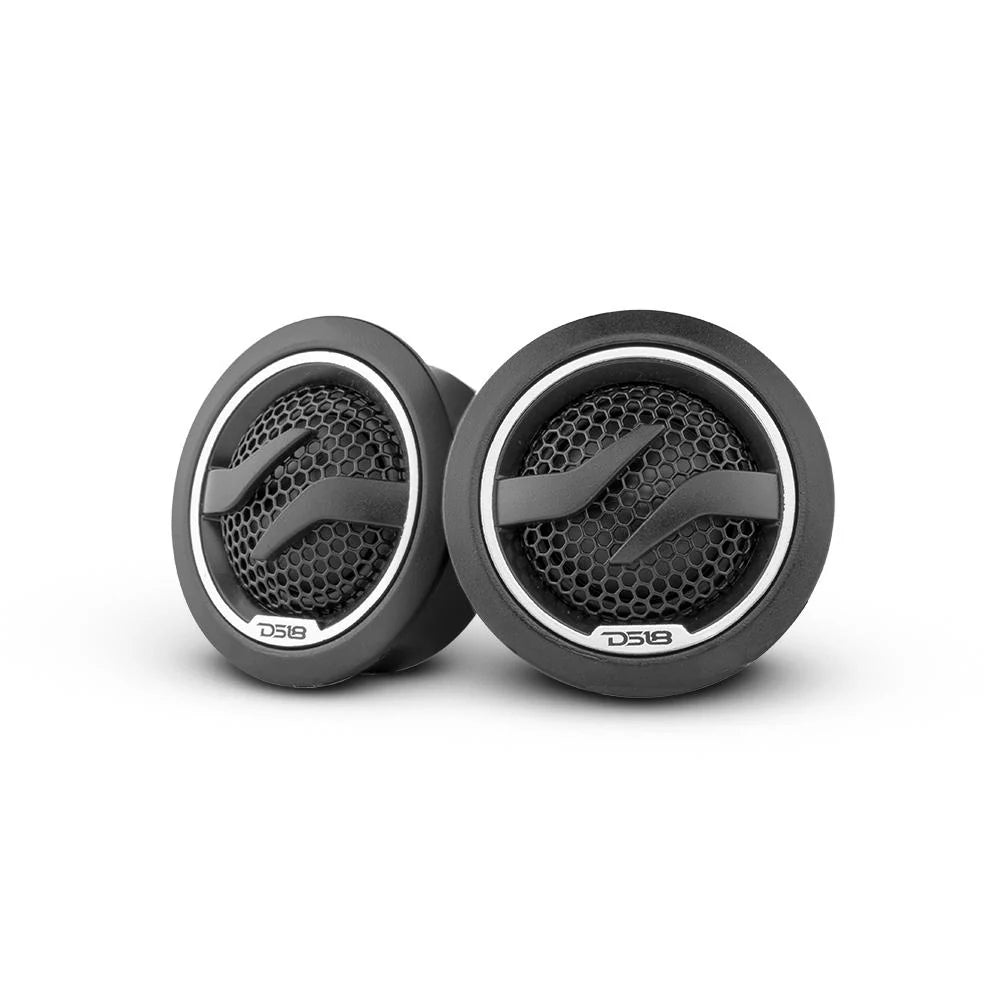

TWEETER
Nominal Diameter 31.7 mm (1.25 inch) Voice Coil Diameter 25.5 mm (1 inch) Voice Coil Former Material ASV Winding Material EISVM Diaphragm Material SILK Magnet Material Neodymium Magnet Weight 13 g / 0.46 oz Pair Yes

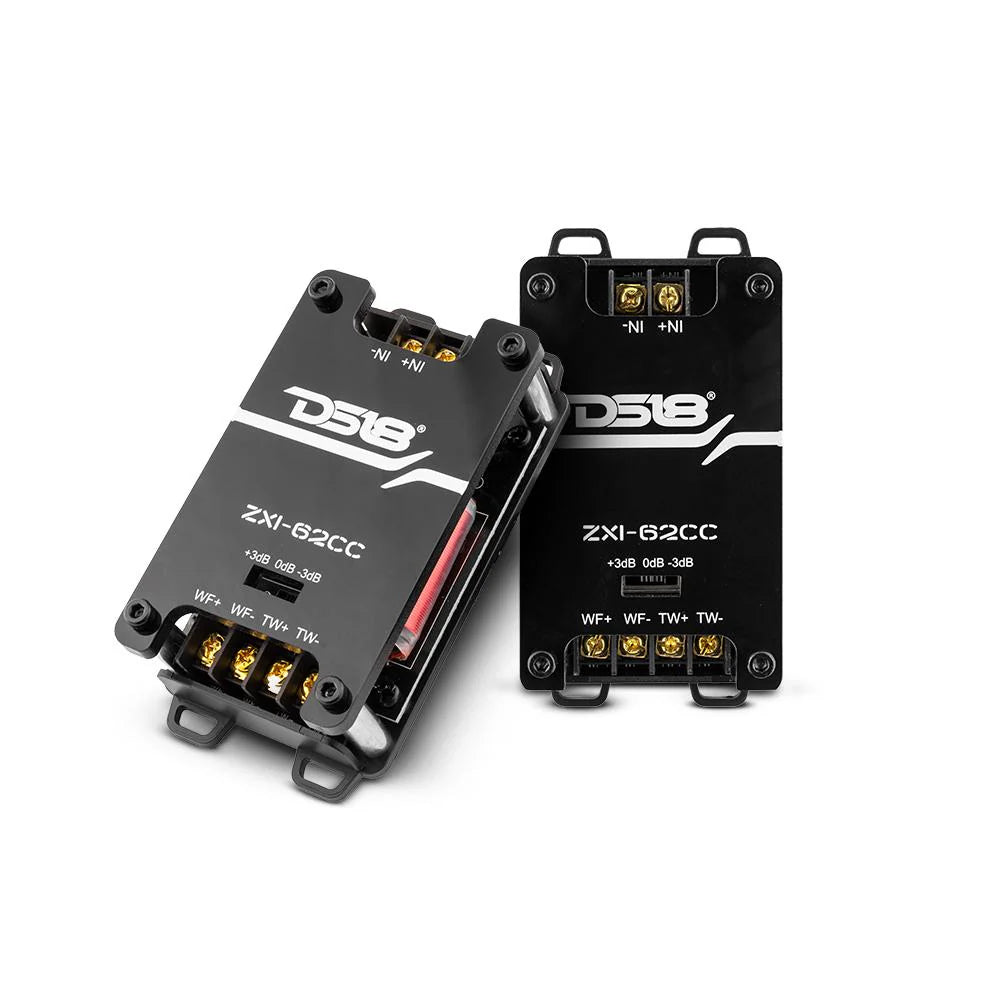

CROSSOVER SPECIFICATIONS & FEATURES
Passive Crossover Ways 2 Ways Frequency Crossover point 3.5 Khz Cut-Off Slope 12 dB / Oct Tweeter Attenuation (+/- 3 dB) Capacitor Type NP Coil Type KSV Housing Material ABS / Acrylic Adjustments Tw Attenuation Extra Features Pt Tw protection Pair Yes
