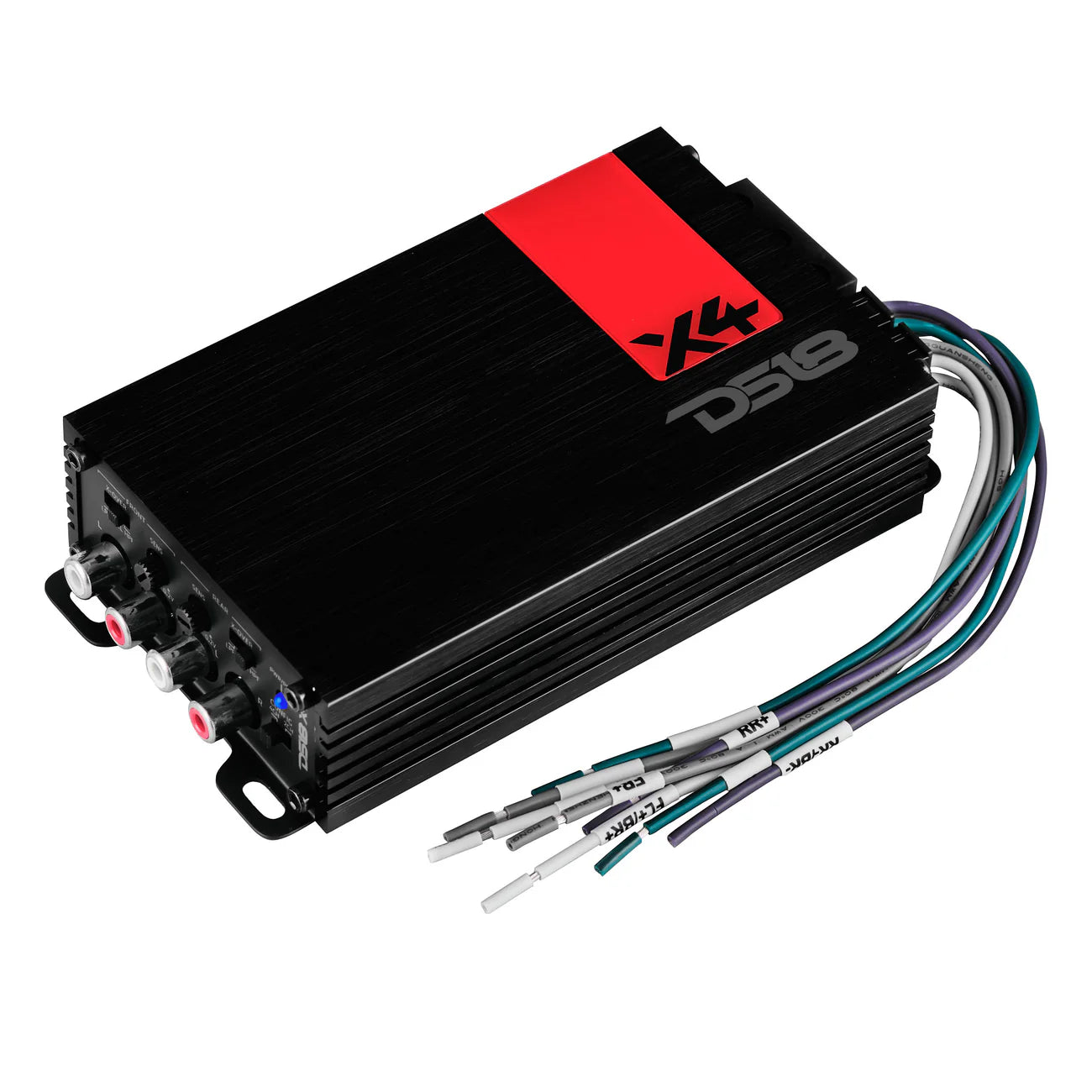

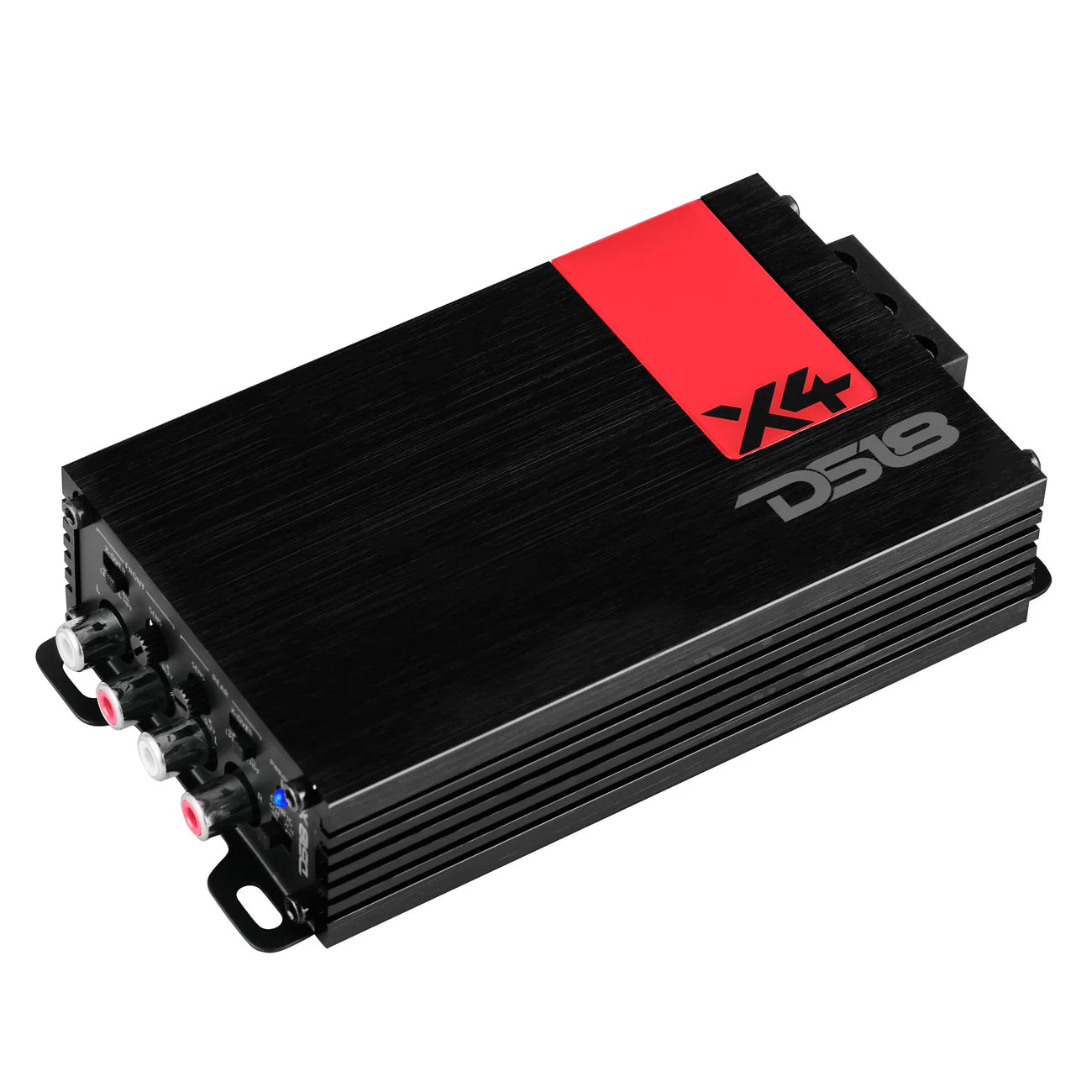

DS18 X4-X 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

SPECS

SKU
X4
Class
Class D / Digital
Channels
4
Total Watts Peak
1320W
RMS Power @ 2 Ohm
140W x 4 CH
RMS Power @ 4 Ohm
70W x 4 CH
RMS Power @ 4 Ohm Bridge
220W x 2 CH
Frequency Response
20Hz - 20KHz
Signal/Noise Ratio
>90db
Selectable X-Over
LPF/FLAT/HPF

SPECS

Fixed Lpf Frequency
80Hz
Low Lever Input Range
0.2-5v
Input Configuration
2CH / 4CH
LEDs Indicate Working Status
Power/Protection
Minimum Impedance
2 Ohm
Power Input Size
12 GA
Fuse Rating
45 A
Thermal Protection
Yes
Over-load Protection
Yes
Dimensions
5.54 x 3.24 x 1.37” (inches)

SPECS

DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Heatsink Length
4.75”
Compact Size
Yes
Stable/Reliable Four Layers
Yes
Surface Mount
Yes
Audio Precision Quality Control
Yes
Configuration 2 CH / 4 CH Input Selector
Yes
