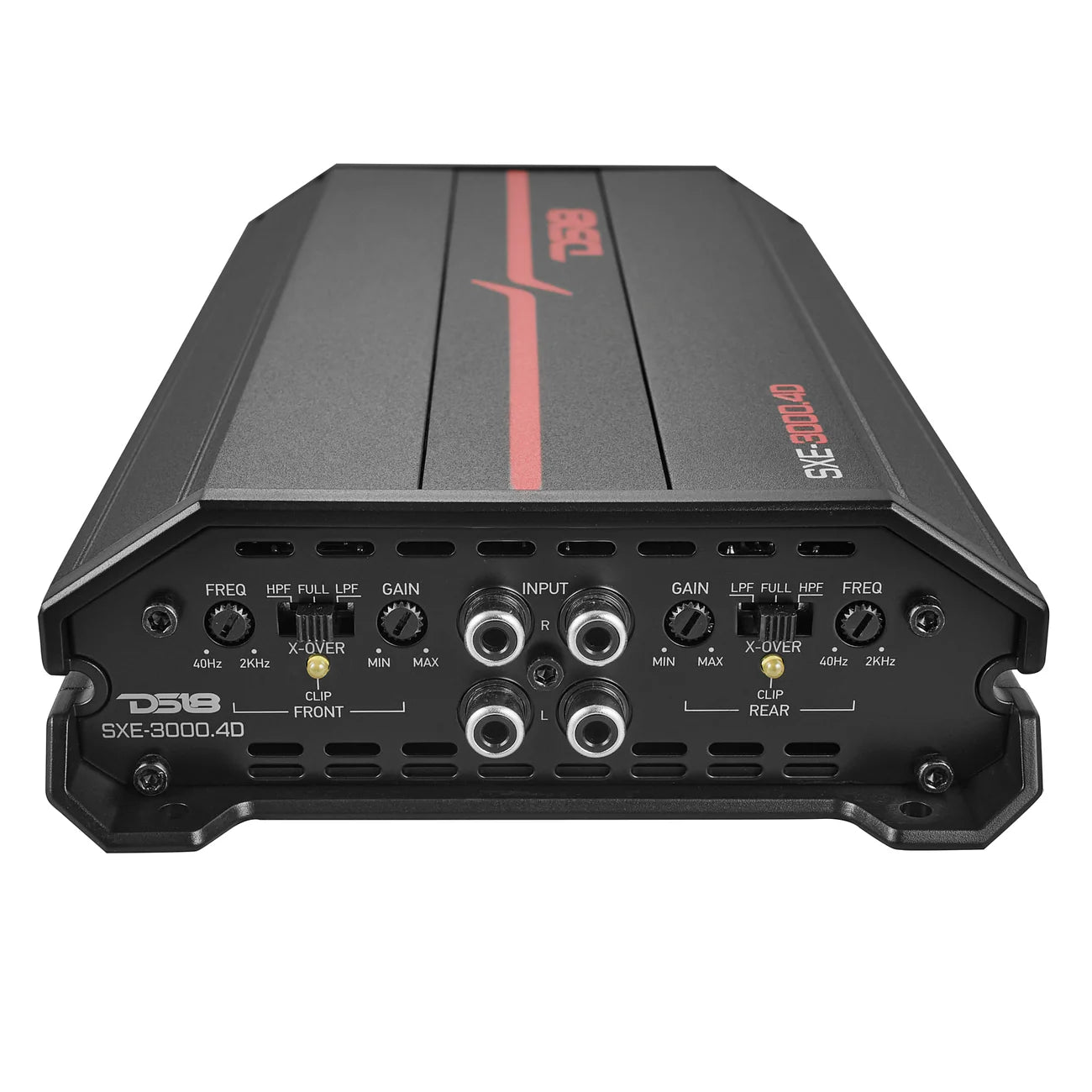

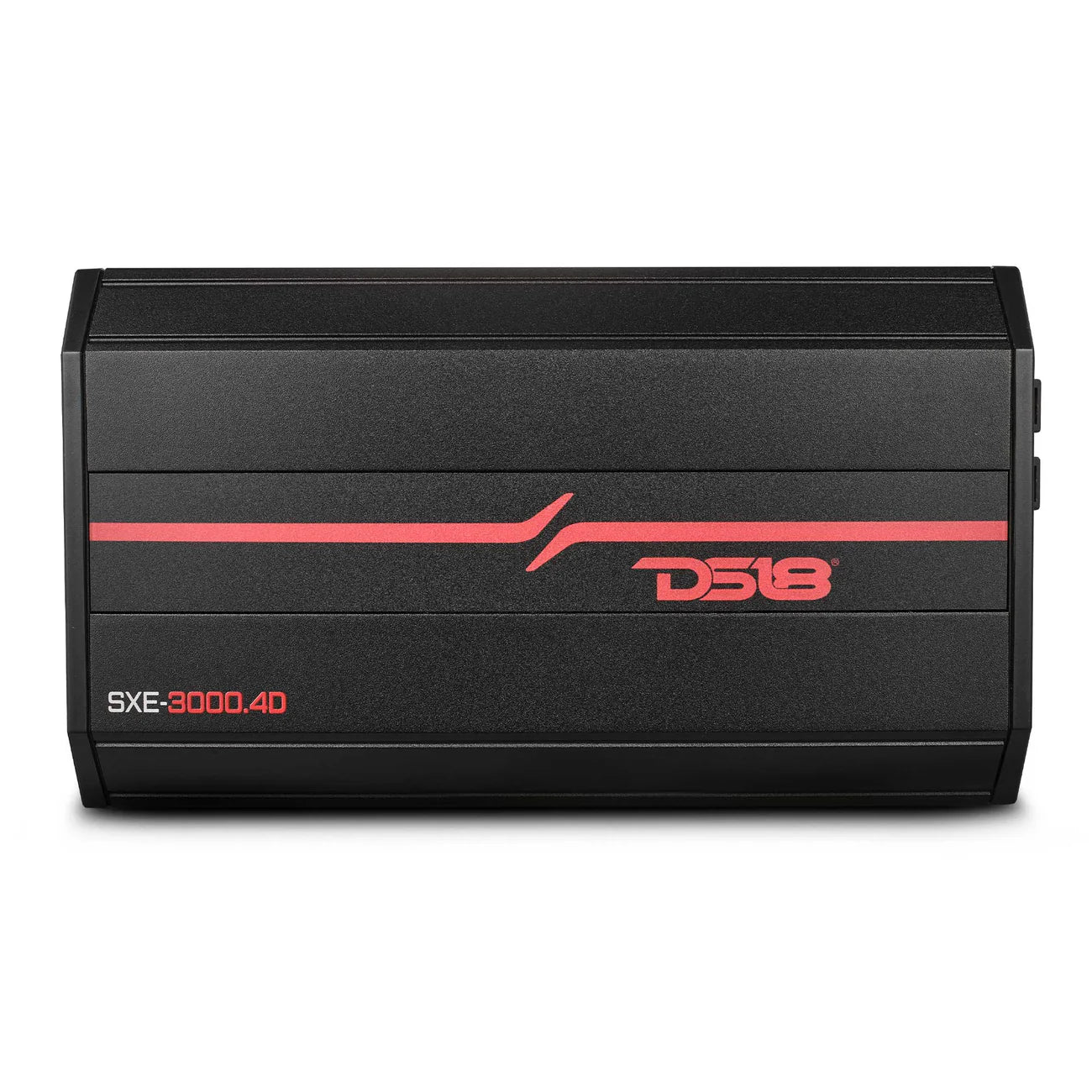

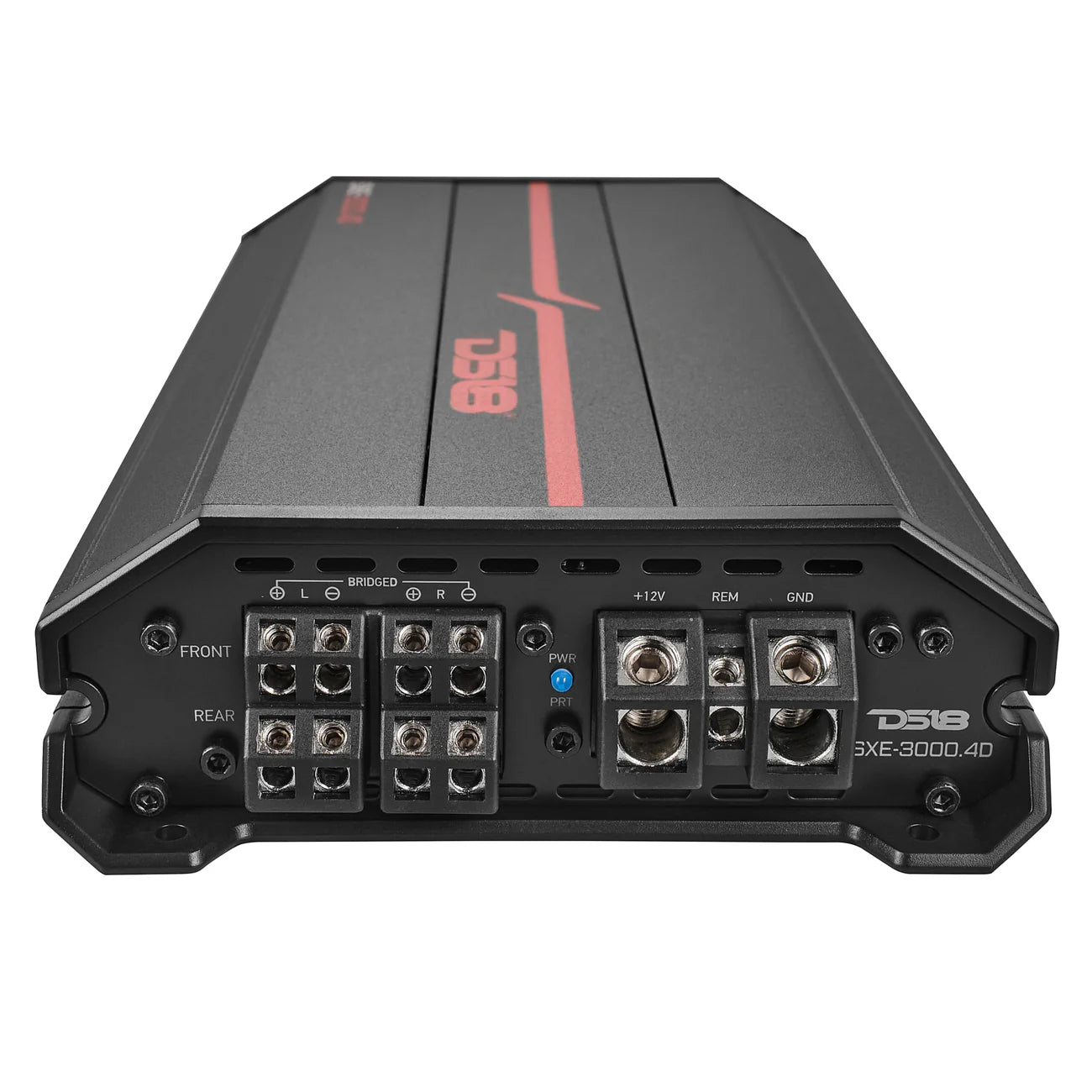

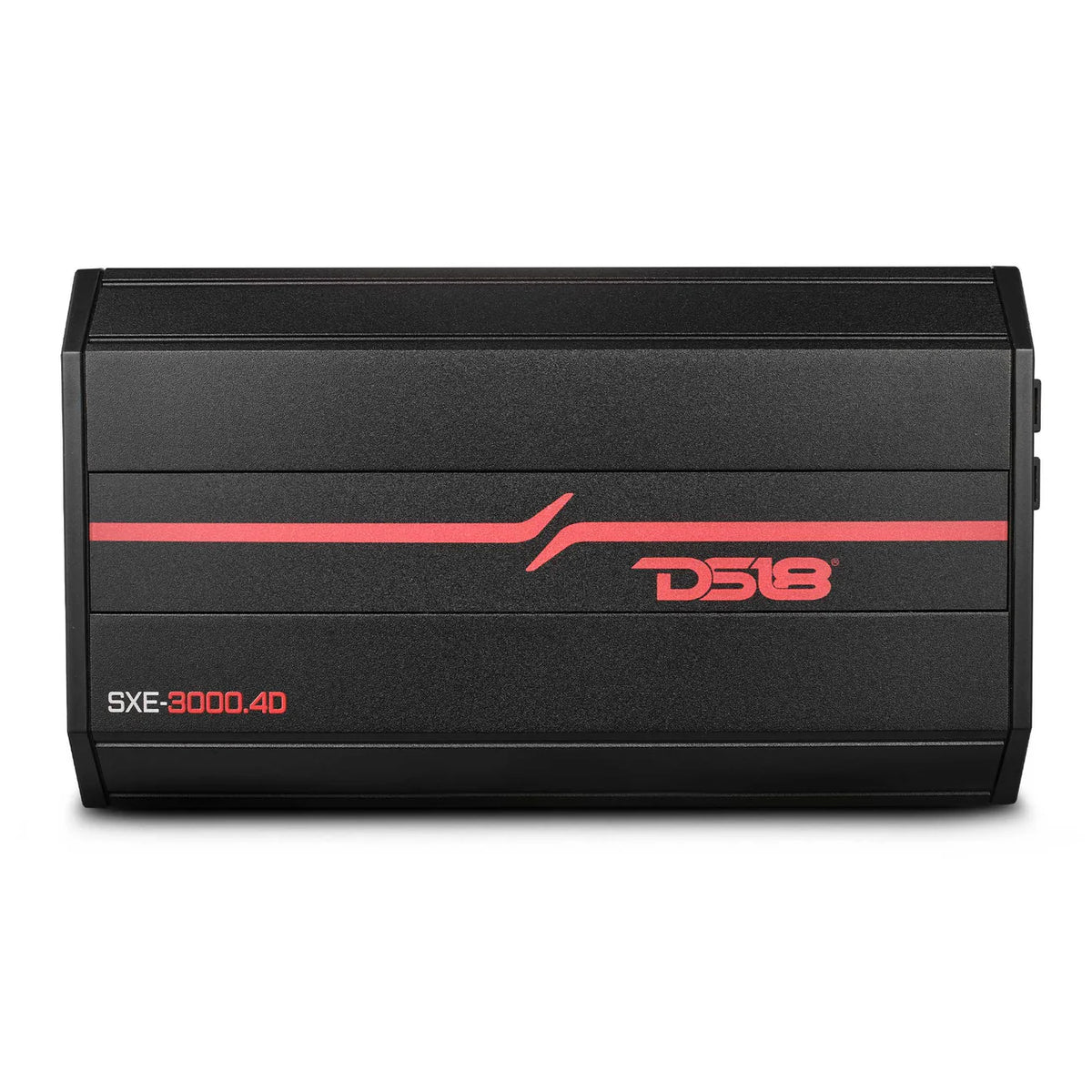

DS18 SXE-3000.4D- Class D 4-Channel Full-Range Car Amplifier 4 x 200 RMS @4 Ohm 3000 Watts
DS18 SXE-3000.4D- Class D 4-Channel Full-Range Car Amplifier 4 x 200 RMS @4 Ohm 3000 Watts
Couldn't load pickup availability
Class D 4-Channel Full-Range Car Amplifier
Take full control of your system with the SXE-3000.4D, a full-range 4-channel amplifier designed for LOUD sound across all frequencies. With a solid 200W x 4 @ 4Ω, 320W x 4 @ 2Ω, and 500W x 2 bridged @ 4Ω: this amp packs enough punch to push all frequencies in full force.
SPECS
SKU
SXE-3000.4D
Class
Digital
Amplifier Type
Stereo Full Range
Channels
4 CH
Peak Power
3000W
RMS Power @ 4 Ohm/14.4V
4 x 200W
RMS Power @ 2 Ohm/14.4V
4 x 320W
RMS Power @ 4 Ohm/14.4V Bridged
2 x 500W
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Operation Voltage
10 - 15V
SPECS
Frequency Response
10Hz-20KHz
Signal/Noise Ratio
90dB
Low Pass Filter
40Hz - 400Hz
High Pass Filter
40Hz - 400Hz
Subsonic
NO
Subsonic Frequency
N/A
Efficiency @ 4 Ohm
88%
Damping Factor
140
THD %
0.05%
Input Sensitivity
0.2V - 6V
X-Over Filter Range
40HZ-2KHZ
Bass Boost Range
NO
Bass Boost Frequency
N/A
Phase Selector
NO
SPECS
High Level Input
NO
Selectable X-Over
HPF/FULL/LPF
Led Indicator
Power/Protect/Clip
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Thermal Protection
Yes
Power Input Size
4GA
Fuse Rating
40A x 2
Remote Level Control
NO
Body Color / Finish
Red / Black Brushed Aluminum
MEASUREMENTS
Overall Length
9.8" / 249.3mm
Overall Wide
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
8.34" / 212mm
Gross Single Unit Weight
1.86KG
