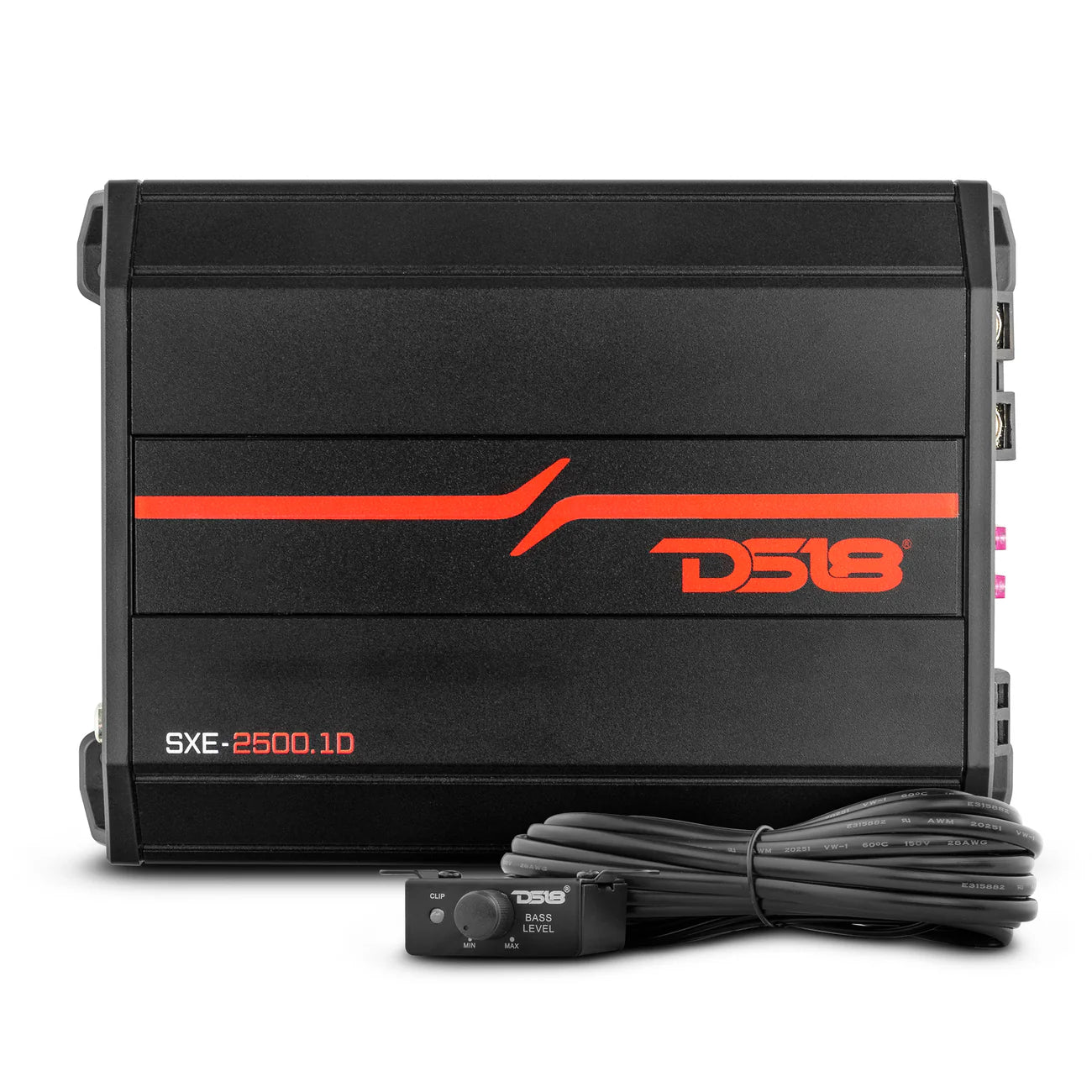

DS18 SXE-2500.1D- SXE Class D 1-Channel Amplifier 1 x 800 Watts RMS @ 1-Ohm 2500 Watts

SPECS

SKU
SXE-2500.1D
Class
Digital
Amplifier Type
Monoblock Subwoofer
Channels
1
Peak Power
2500W
RMS Power @ 4 Ohm/14.4V
350W
RMS Power @ 2 Ohm/14.4V
600W
RMS Power @ 1 Ohm/14.4V
800W
Minimum Impedance
1 Ohm
Operation Voltage
10 - 15V

SPECS

Frequency Response
20Hz - 500Hz
Signal/Noise Ratio
>90dB
Low Pass Filter
50Hz - 250Hz
High Pass Filter
N/A
Subsonic
Yes
Subsonic Frequency
10 - 55Hz
Efficiency @ 4 Ohm
80%
Damping Factor
140
THD %
0.05
Input Sensitivity
0.2V - 6V
X-Over Filter Range
50-250Hz
Bass Boost Range
0 - 18dB
Bass Boost Frequency
50Hz
Phase Selector
0-180

SPECS

High Level Input
NO
Selectable X-Over
Fixed LPF
Led Indicator
Power/Protect/Clip
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Thermal Protection
Yes
Cooling Fan
NO
Speaker Output Size
12GA
Power Input Size
4GA
Fuse Rating
40A x 2
Remote Level Control
Yes
Body Color / Finish
Red / Black Brushed Aluminum

MEASUREMENTS

Product Weight (lb)
4.5
Product Dimensions L x W x H (Inches)
9.75 x 7.75 x 3.25
M/C Weight (lb)
20.5
M/C Dimensions L x W x H (Inches)
16.75 x 10.5 x 8.5
M/C Qty
5
Sold in
Single
