DS18 SXE-2000.4D- SXE Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm 2000 Watts

SPECS

SKU
SXE-2000.4D
Total Watts (Peak)
2000W
RMS Power @ 4 Ohm
4 x 100W
RMS Power @ 2 Ohm
4 x 160W
RMS Power @ 1 Ohm
N/A
RMS Power @ 4 Ohm Bridge
2 x 320W

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
90%
Damping Factor
200
Input Impedance
20kΩ
Channel Separation
60dB
Total Harmonic Distortion (THD)
0.10%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
40HZ-2KHZ
Bass Boost Range
No
Bass Boost Frequency
No
Infrasonic Filter
No
Phase Selector
No

FEATURES

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
1 x 40A (40A)
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum

MEASUREMENT

Overall Length
6.4" / 164.3mm
Overall Wide
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
5" / 127mm

EXTRA FEATURES

Compact Size to easy Installation for Any Applications
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes

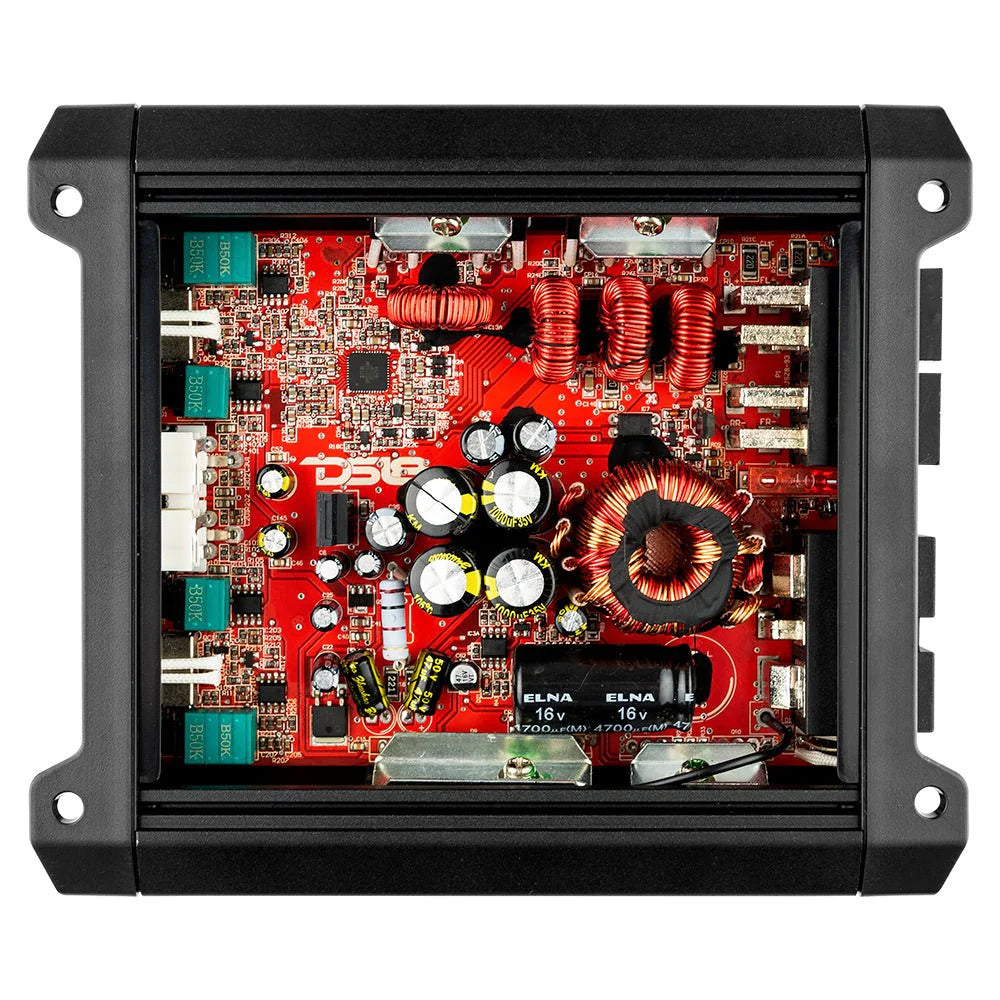

Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
No
