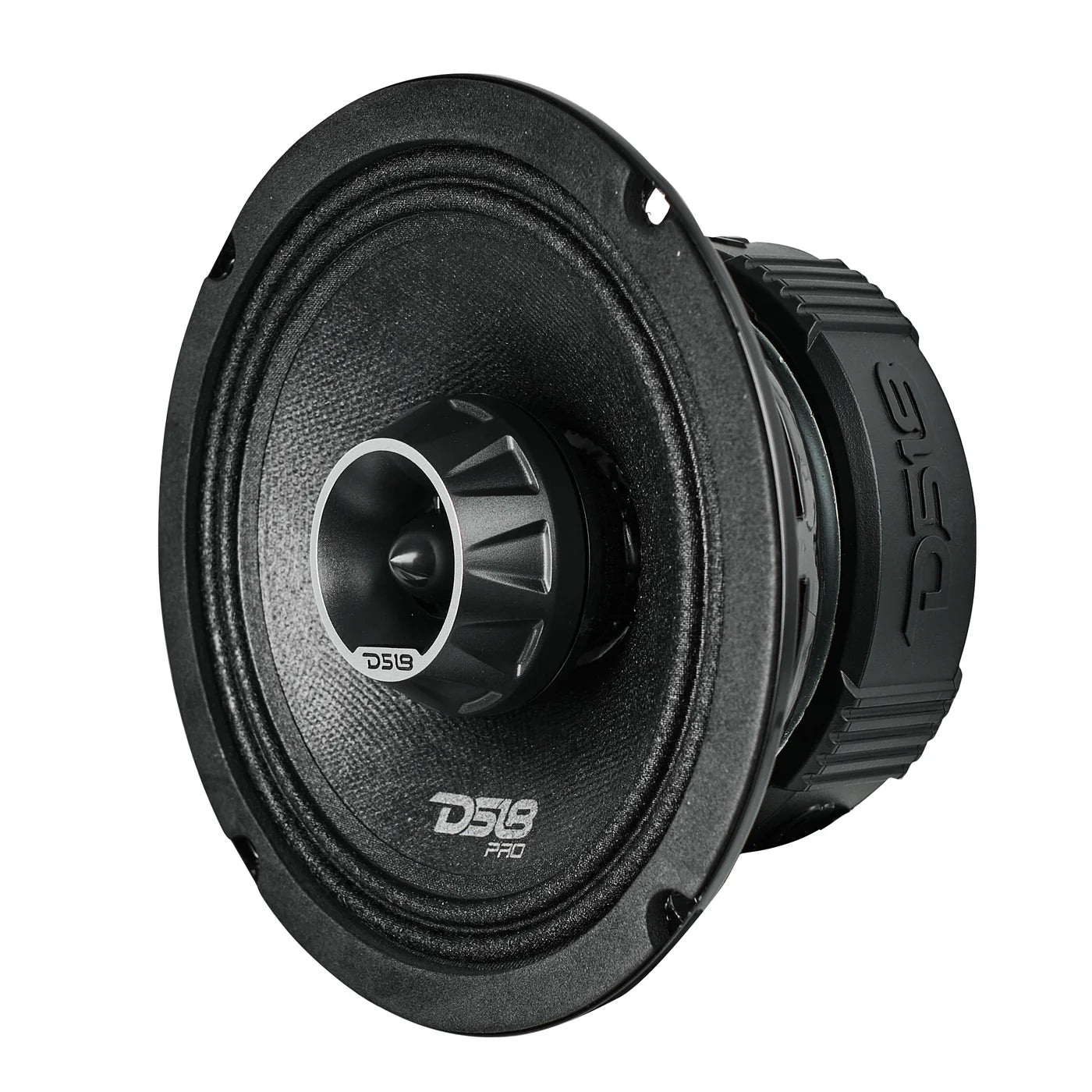

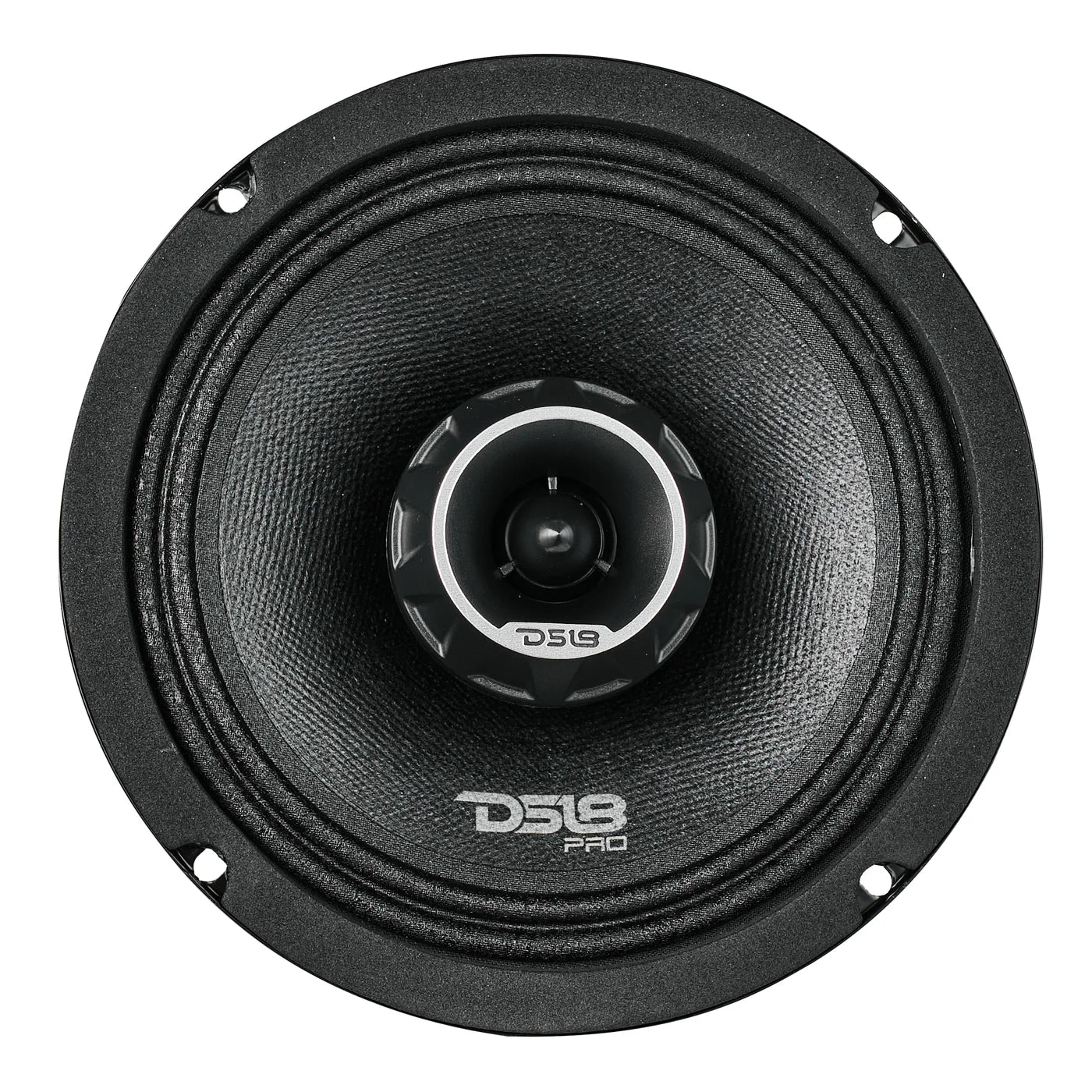

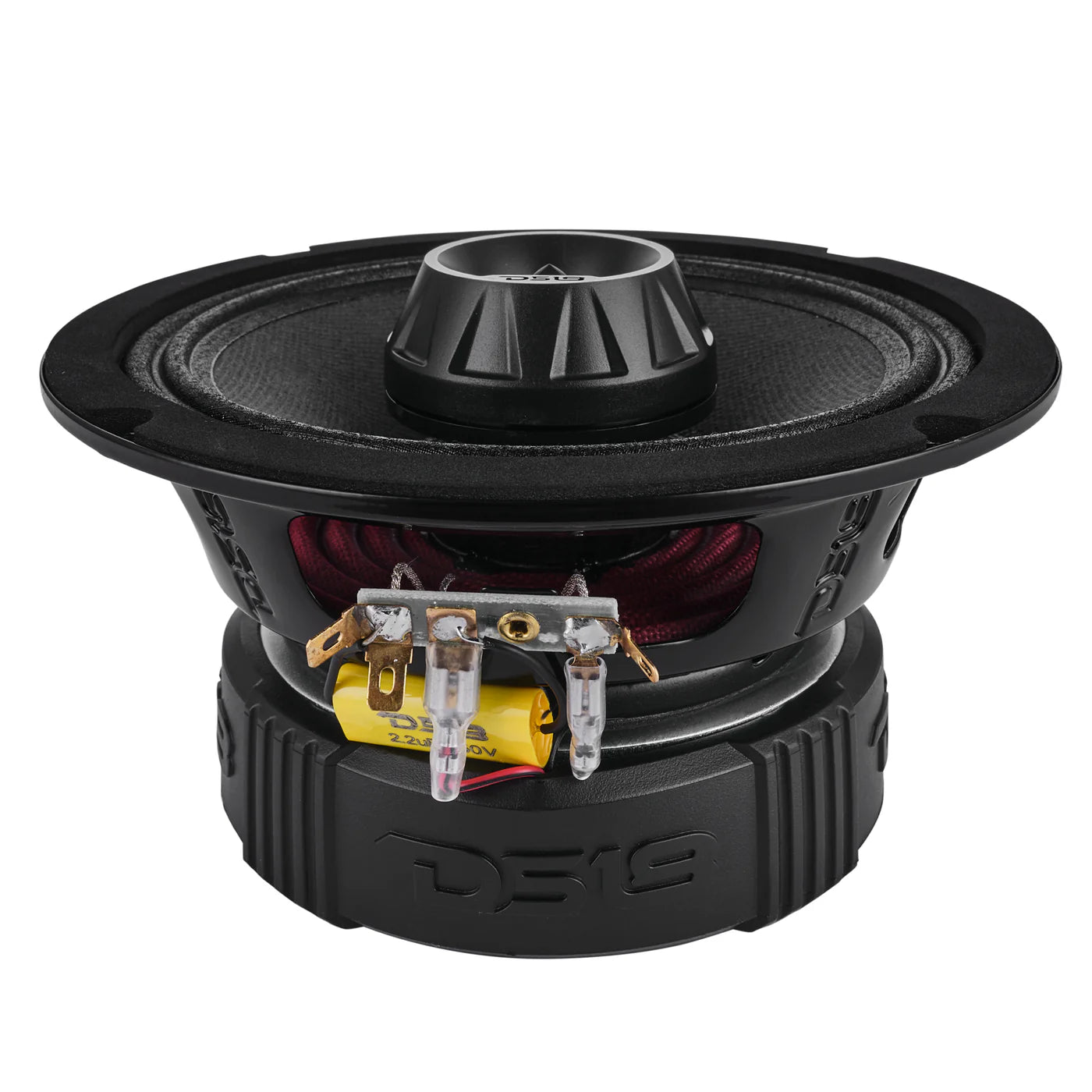

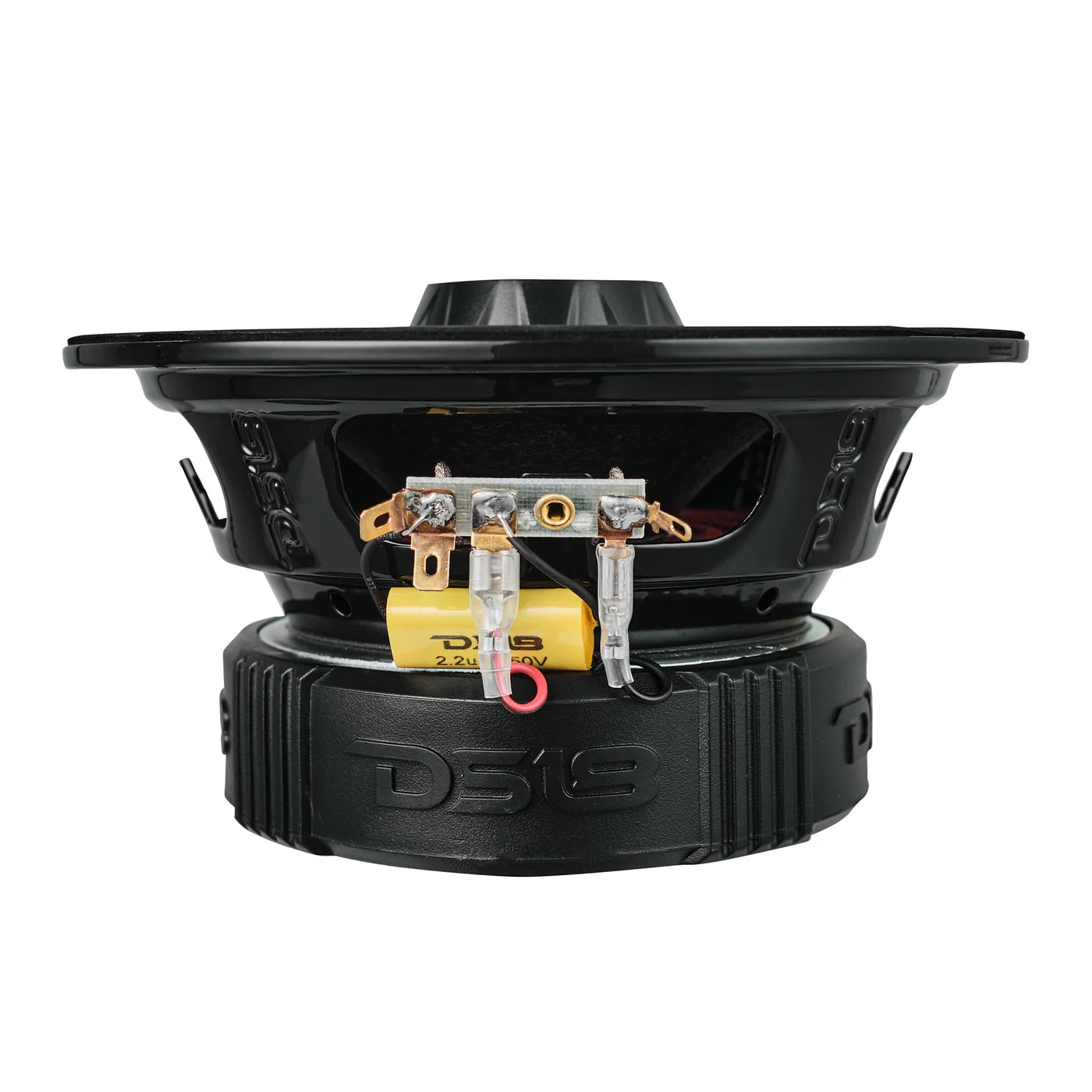

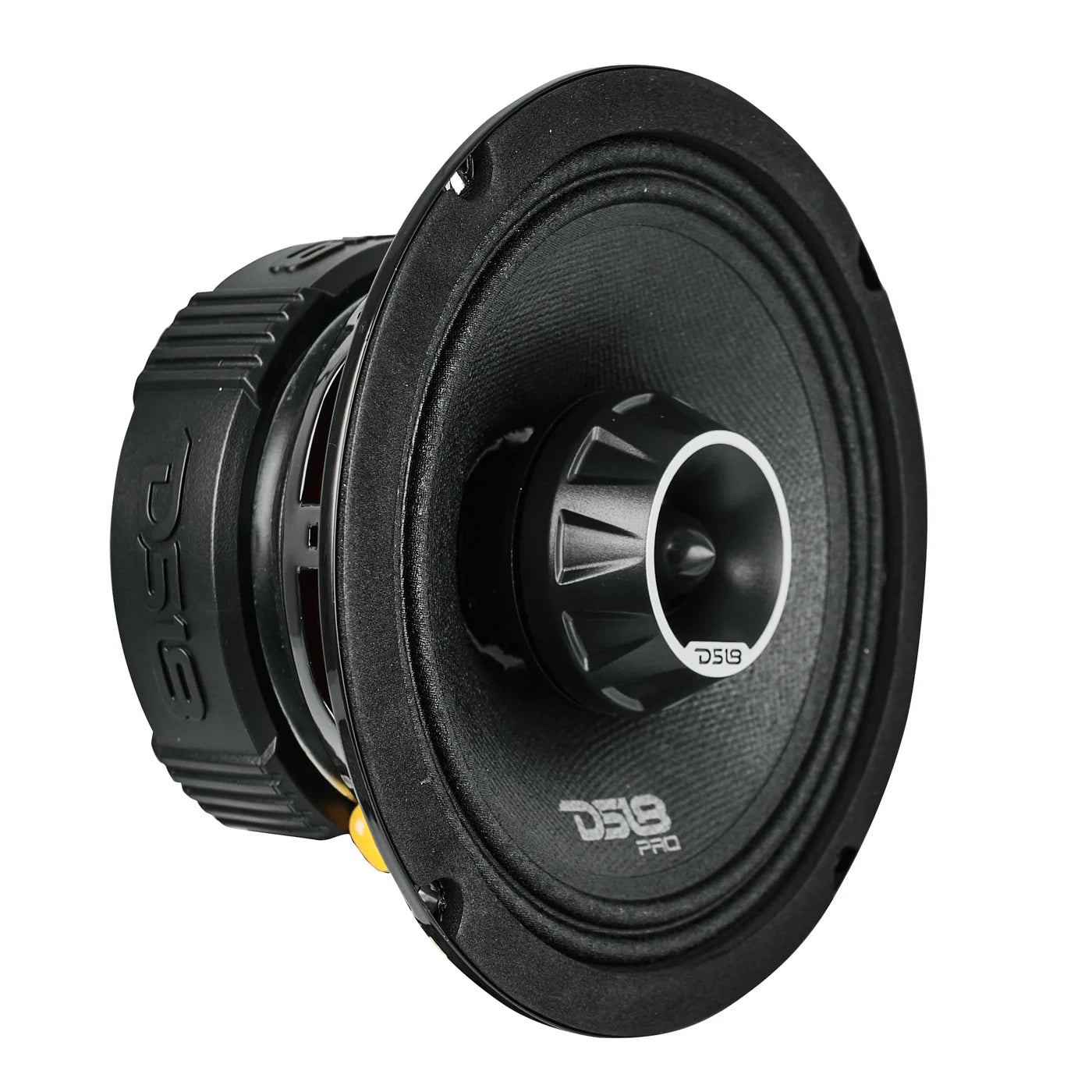

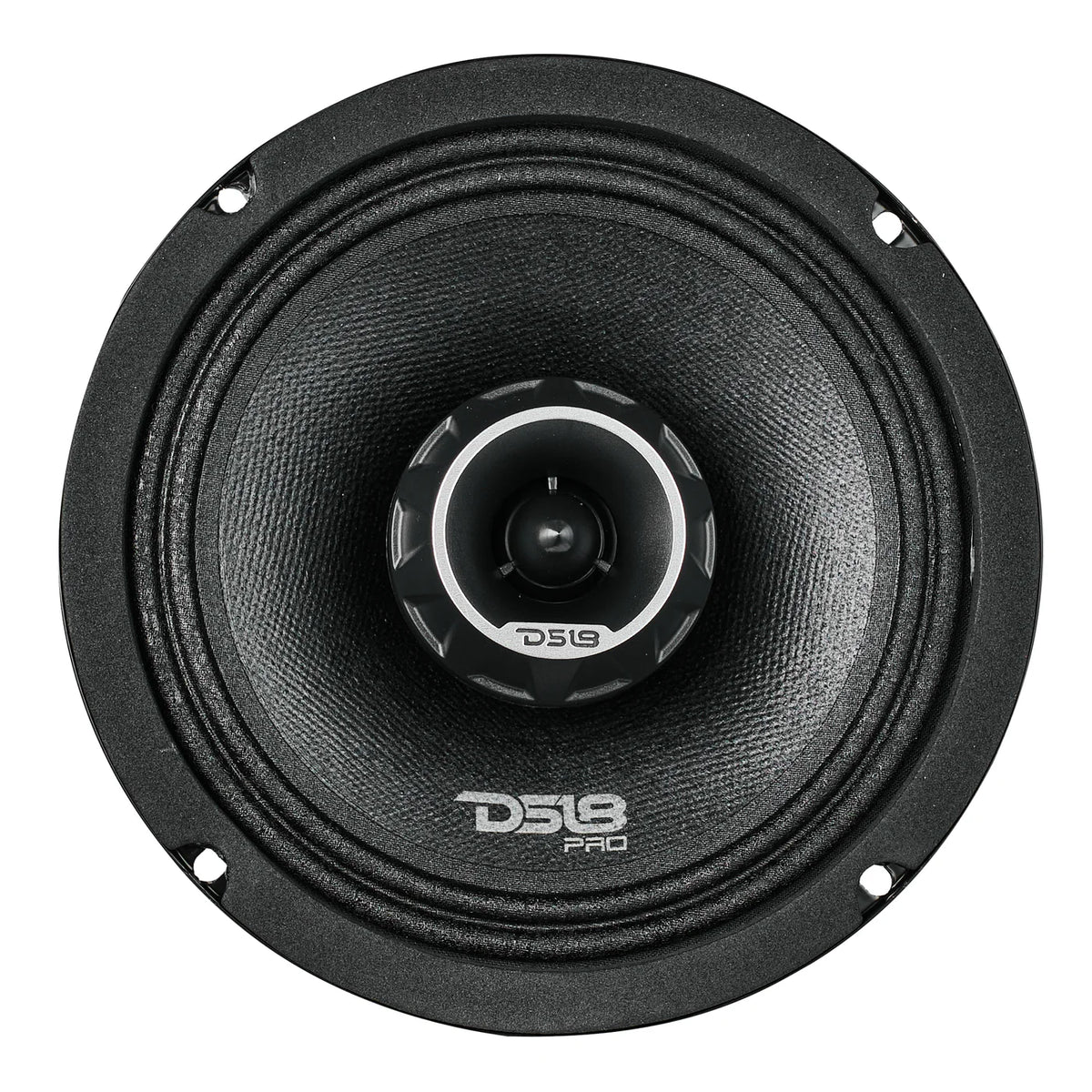

DS18 PRO-ZT 6.5" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 225W RMS 4-Ohm

DS18 PRO-ZT 6.5" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 225W RMS 4-Ohm

Regular price $95.95 USD
Regular price Sale price $95.95 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

PRODUCT OVERVIEW

Experience earth-shaking sound with the PRO-ZT6: a 2-way mid-range built for raw power, and full-range functionality. Packed into a rugged, water-resistant coaxial build.

Insane Power
Handling an RMS power of 225W and a MAX power of 450W, the PRO-ZT6 delivers breathtaking volume and precision. With a 4-Ohm impedance for easy installation and an ultra-high sensitivity rating of 96dB, you’re guaranteed powerful sound output even at lower volumes.

Wide Frequency Range
With an impressive frequency response range of 65Hz - 22KHz, the PRO-ZT6 captures every nuance across the entire audio spectrum. The integrated neodymium tweeter refines the balance between highs and lows, ensuring you hear every detail of your music.

Deep, Impactful Bass
Engineered with a robust ferrite magnet, the 6.5" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for dynamic impact every session.

Protective Grill Included
The rugged steel mesh grille now comes with an integrated cloth shade. This added layer helps block dust, water spray, and direct sunlight from reaching the cone, protecting internal components and maintaining performance in any conditions.

SPECS

SKU
PRO-ZT6
Nominal Diameter
6.5" (165.1 mm)
Nominal Impedance
4 ohms
RMS Power Handing
225 Watts
Maximum Power Handing
450 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
85Hz-20kHz
Recommended Hi Pass Crossover
100 Hz

MOTOR

Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth

TWEETER

Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
Aluminum Alloy
Magnet Material
Neodymium (N35H)

MEASUREMENTS

Overall Diameter
178 mm (7”)
Front Mount Baffle Cutout
144 mm (5.67”)
Mounting Depth
77 mm (3.03”)
Overall Depth
97mm (3.81”)

THIELE & SMALL PARAMETERS

Vas
4.72L / 0.16ft3
Xmax
1.65mm
Fs
120Hz
Qms
5.259
Qes
0.614
Qts
0.55
Re
3.2 Ohms
