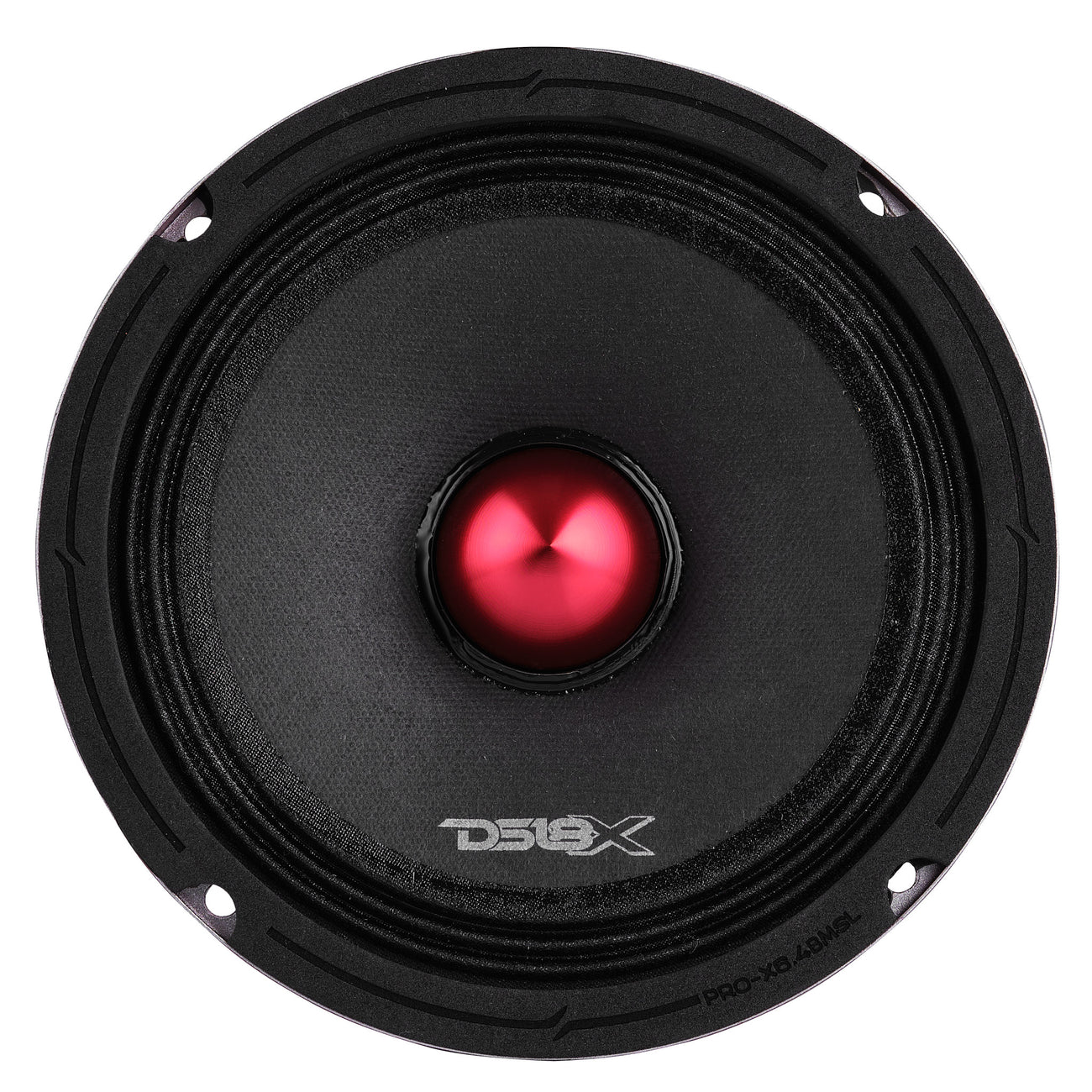

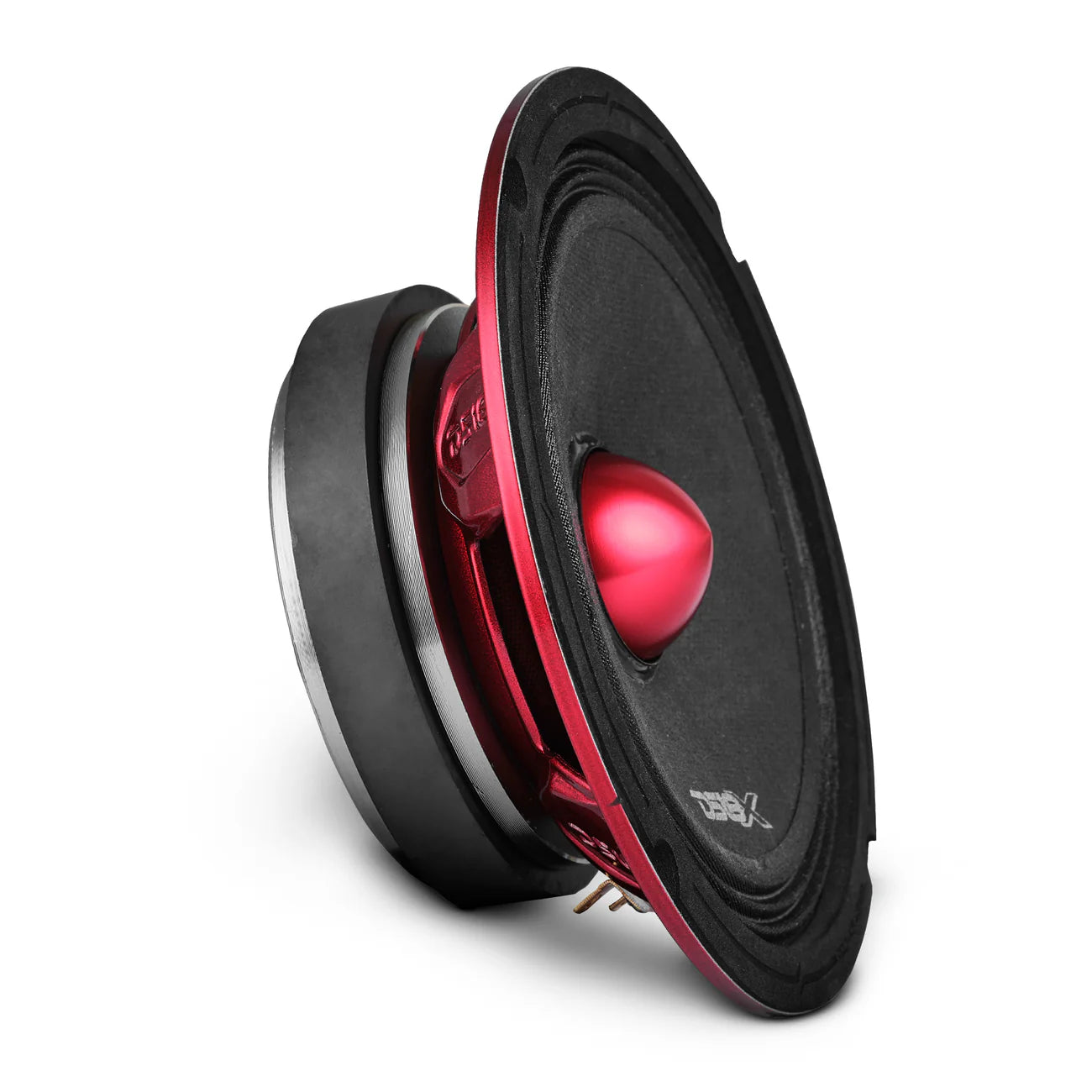

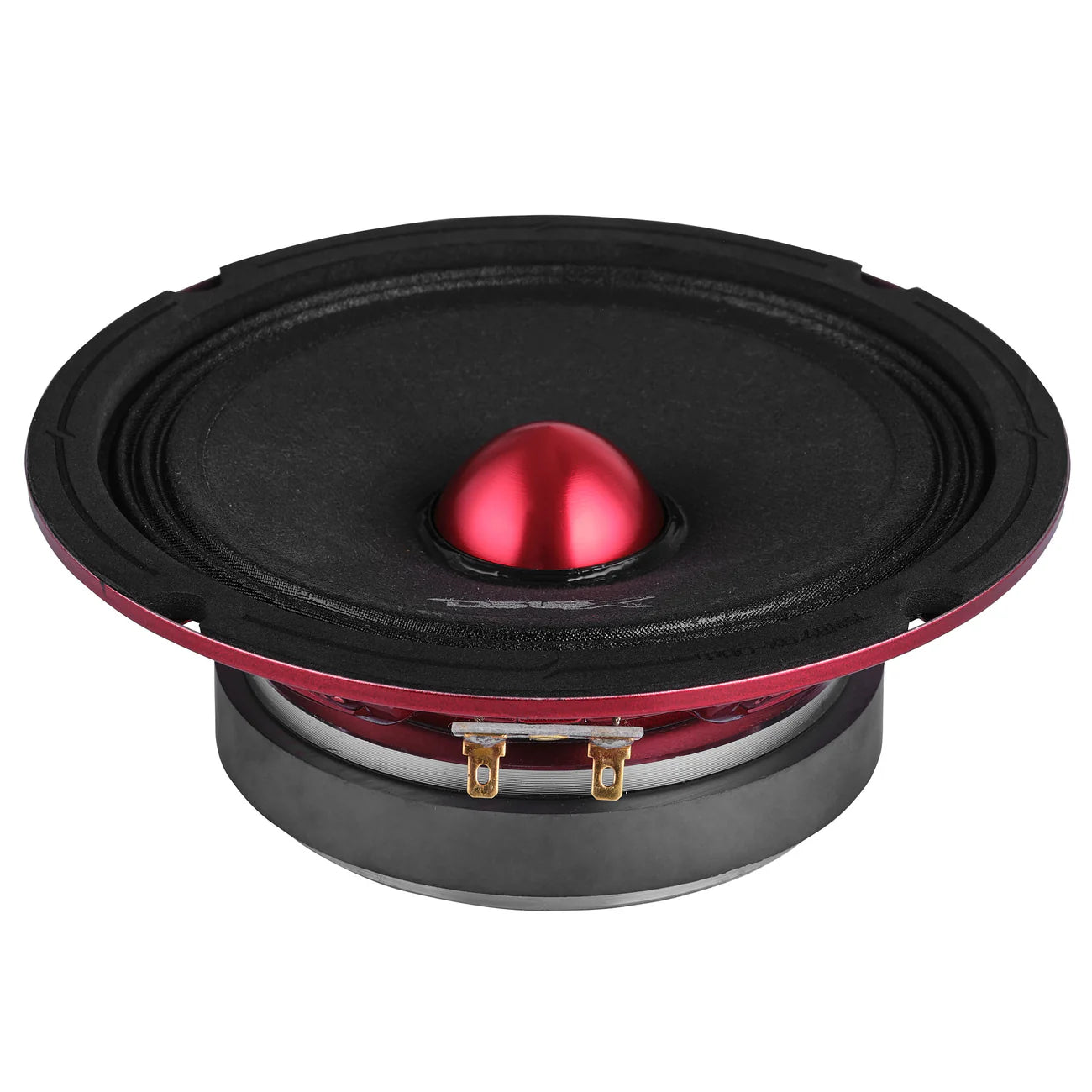

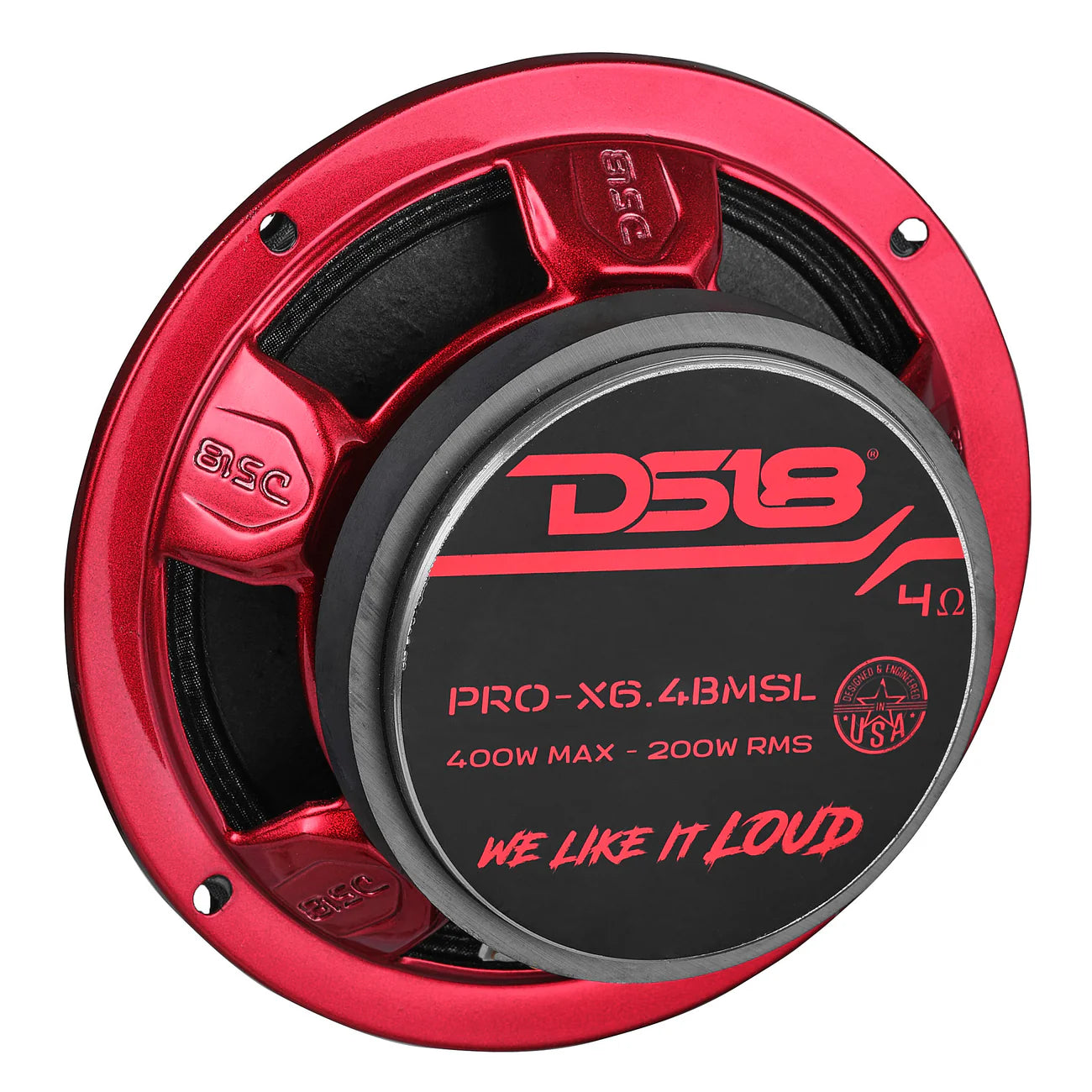

DS18 - PRO-X 6.5" Shallow Mid-Range Bullet Loudspeaker | 200W RMS 4-Ohm

SPECS

SKU
PRO-X6.4BMSL
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
95db
Frequency Response
80Hz - 5KHz
Recommended HI Pass Crossover
130Hz
Sold in Pair or Single
Single
Grill Included
No

MOTOR

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed
Bullet Material
Aluminum
Bullet Color/Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Finish / Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
21 Oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
4.51L / 0.159ft3
Excursion (one way) Xmax
6.4mm
Free Air Resonance Fs
140Hz
Mechanical Factor Qms
6.59
Electrical Factor Qes
0.81
Total Factor Qts
0.72
Mechanical Mass Mms
6.92g
Mechanical Compliance Cms
0.19mm/N
BL Factor BL
4.99
Voice Coil Inductance Le
0.03mH
Cone Area Sd
130.7Cm2
DC Resistance Re
3.3ohms

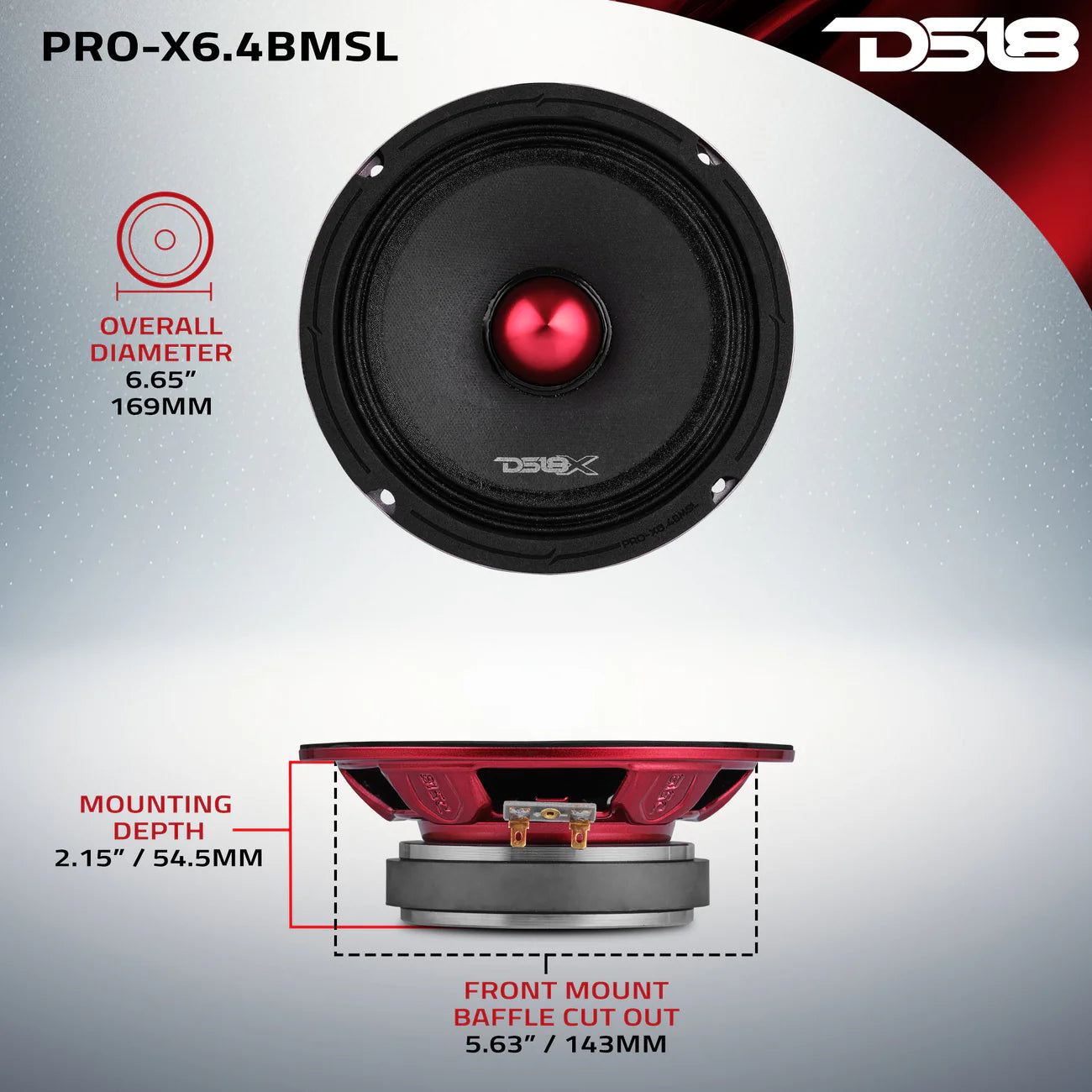

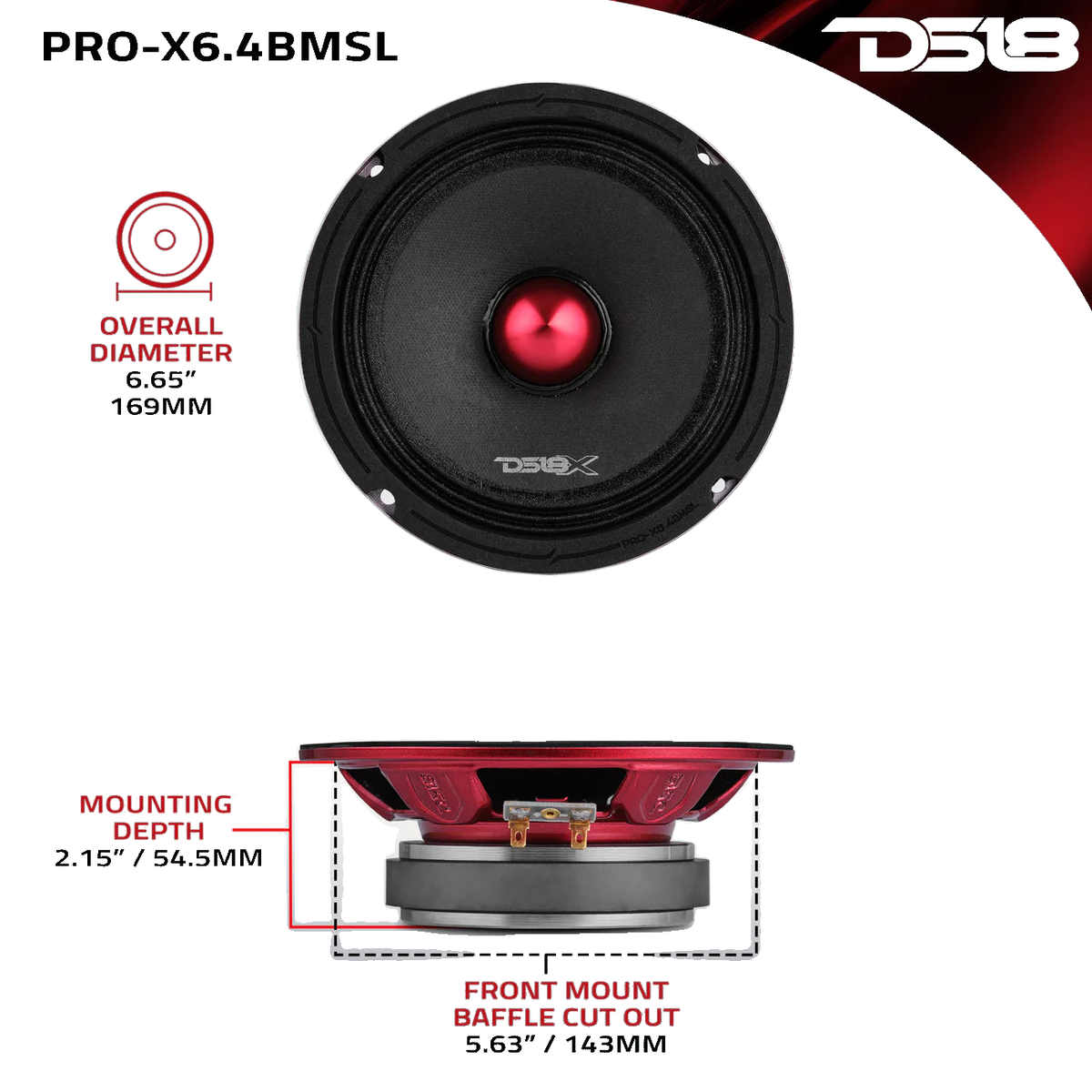

MEASUREMENT

Overall Diameter
6.65" / 169mm
Overall Depth
2.36" / 60mm
Front Mount Baffle Cutout
5.63" / 143mm
Mounting Depth
2.15" / 54.5mm
Motor Diameter
4.3" / 110mm
