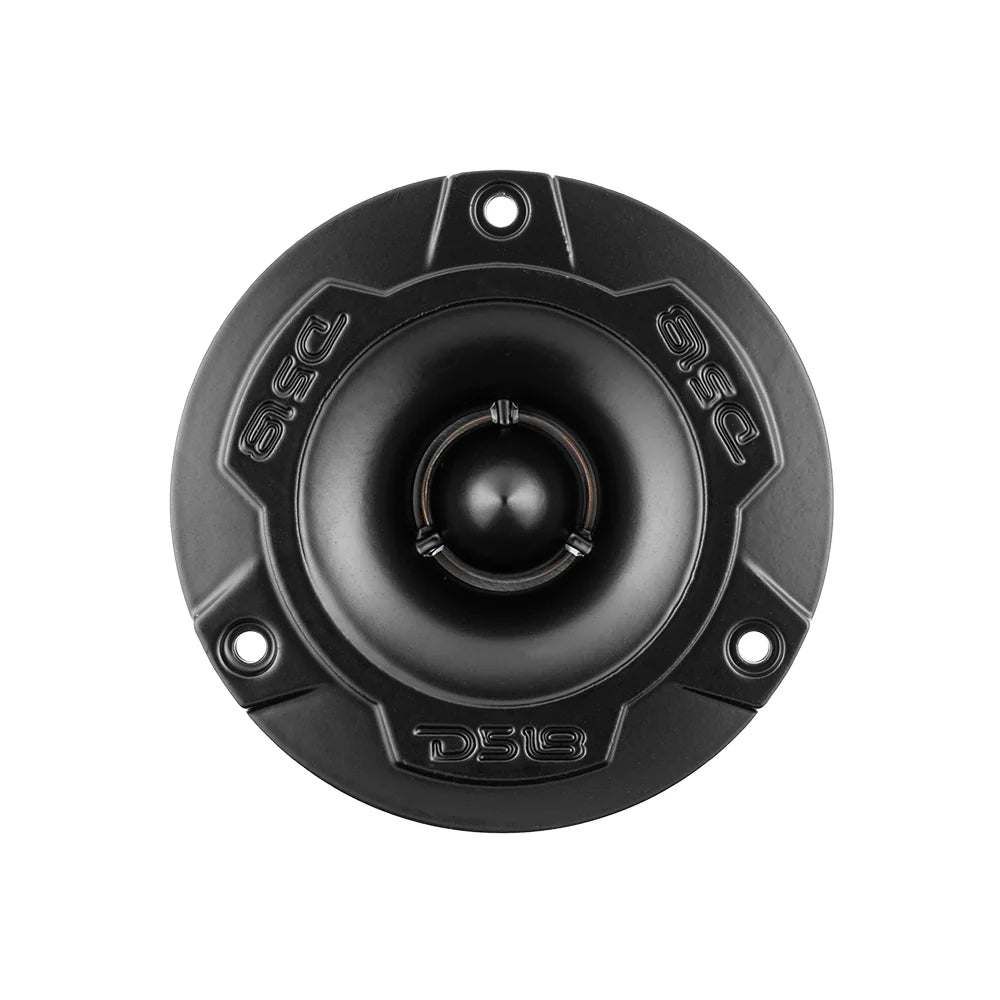

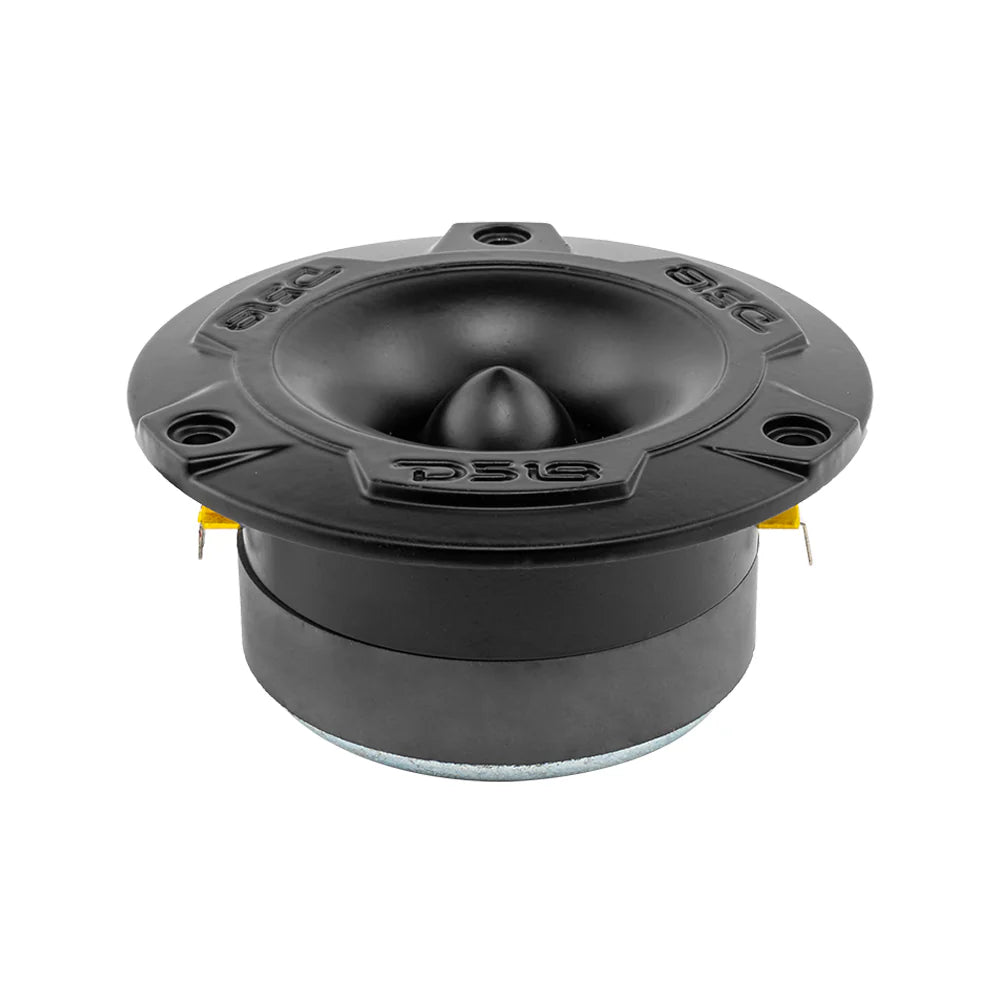

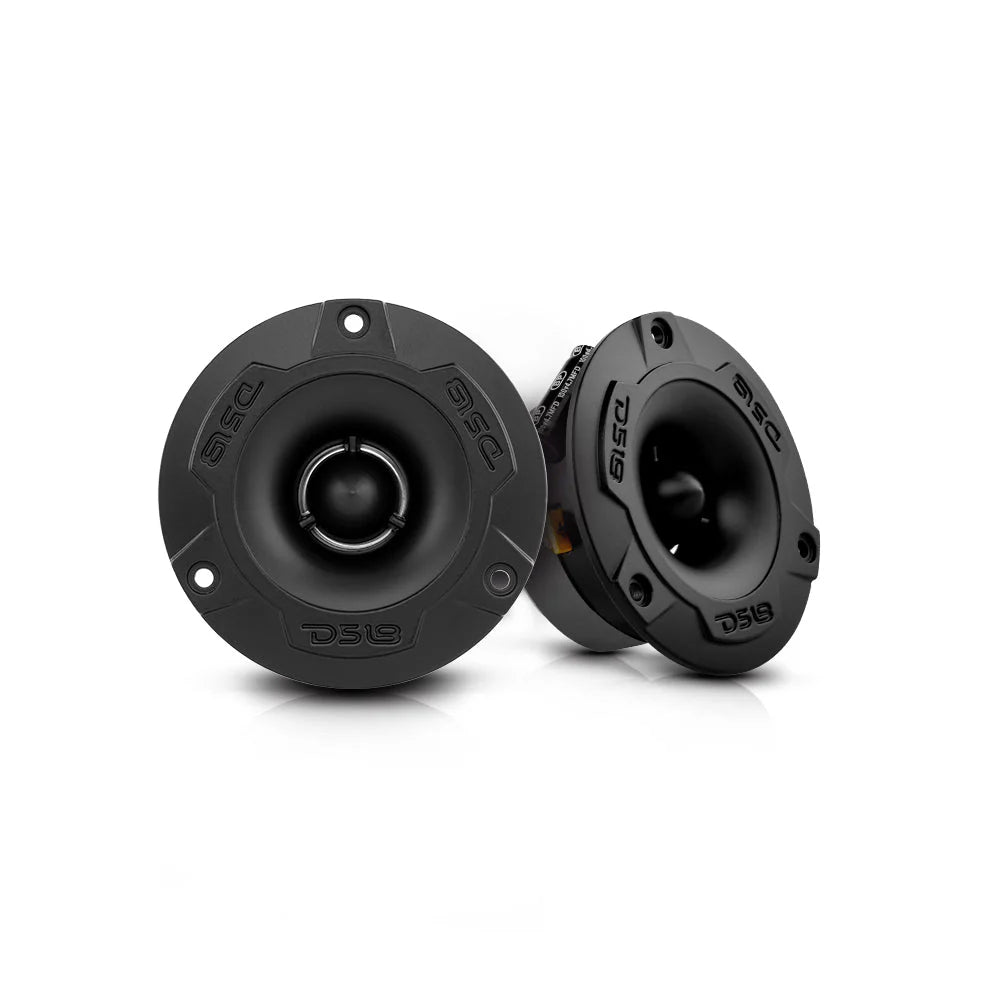

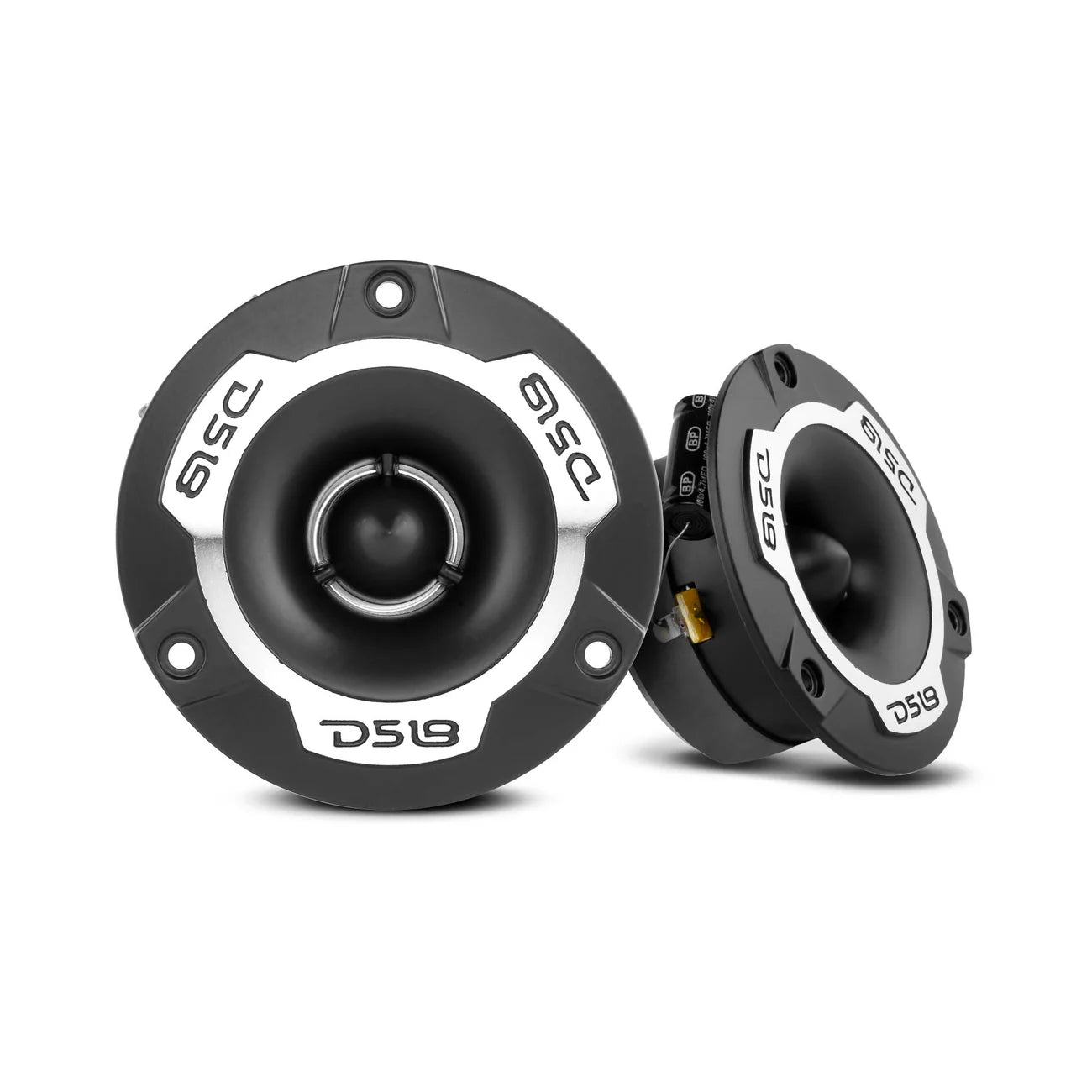

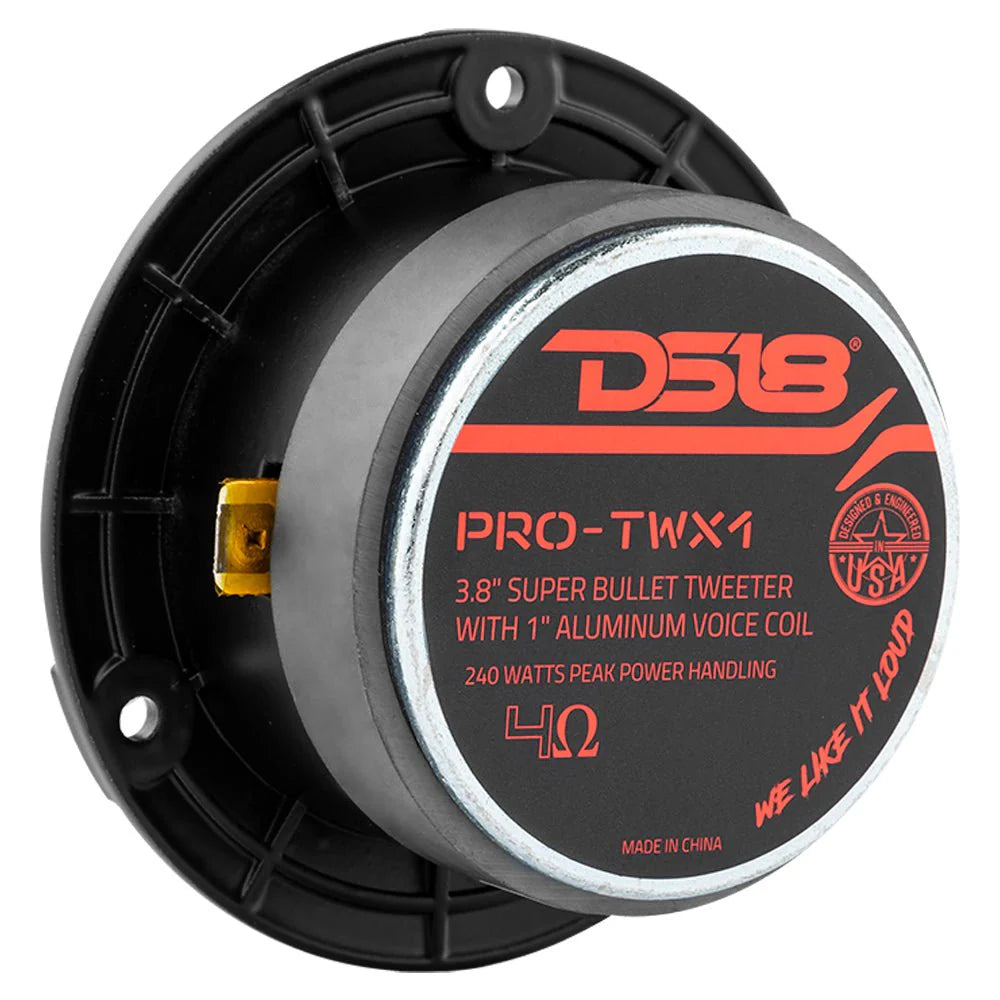

DS18 PRO-TWX1- 3.8" Super Bullet Tweeter 120W RMS 1" Aluminum 4-Ohm Vc

SPECS

SKU
PRO-TWX1/BK
Nominal Diameter
3.8" / 96mm
Nominal Impedance
4 Ohm
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
103 db
Frequency Response
3.5K-20Khz
Recommended Hi Pass Crossover
2KHz
Sold In Pair or Single
Pair

BODY / FEATURES

Filter (Bass Blocker)
N/A
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum

MOTOR

Voice Coil Diameter
1" 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
8 Oz

MEASUREMENT

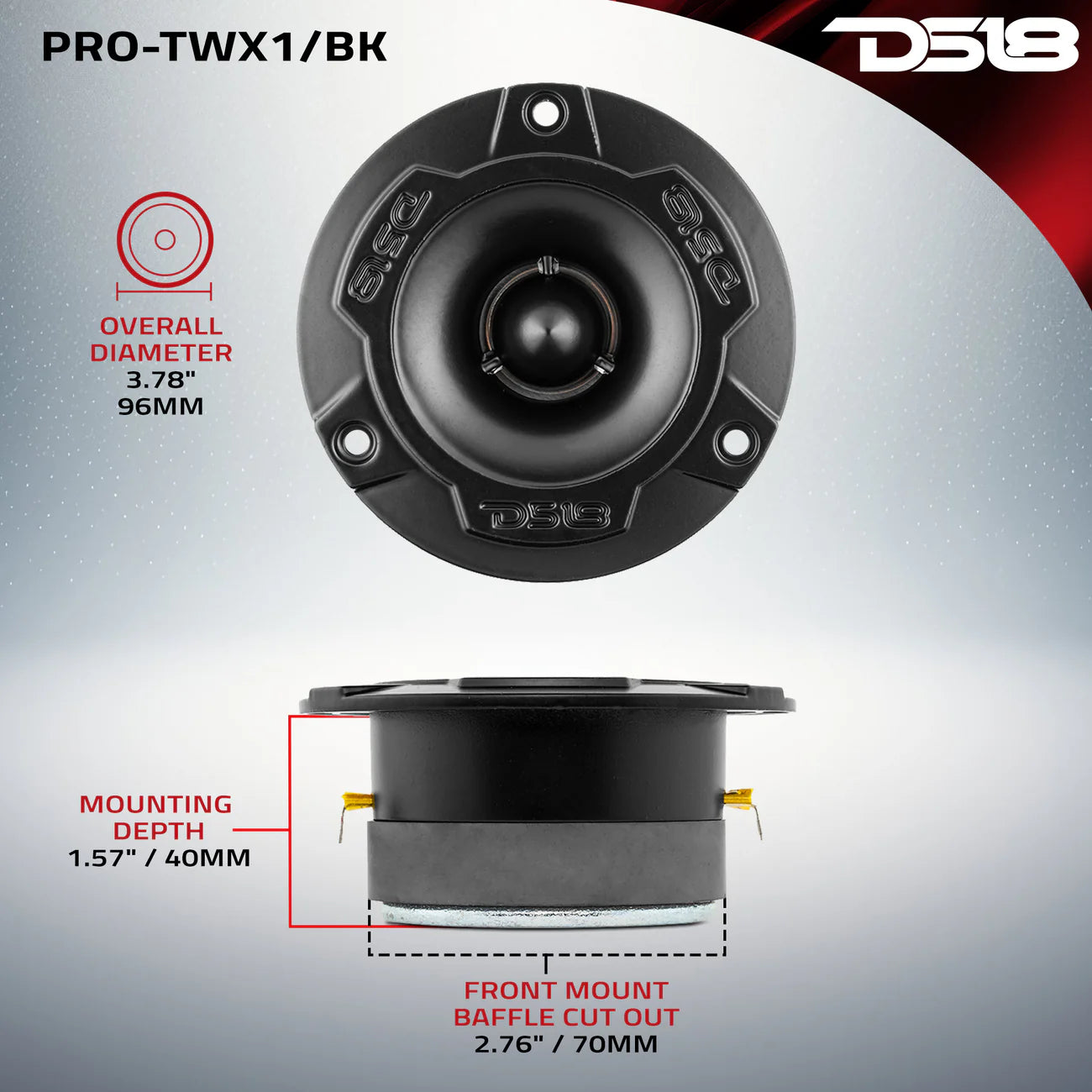

Overall Diameter
3.78" / 96mm
Overall Depth
1.78" / 45mm
Front Mount Baffle Cutout
2.76" / 70mm
Mounting Depth
1.57" / 40mm
Motor Diameter
2.76" / 70mm
Gross Single Unit Weight (lb)
3
Single Unit Box Dimensions W x L x H (Inches)
8.5 x 4.25 x 2.25
Quantity of Units in Master Carton
12
Gross Master Carton Weight (lb)
33
Master Carton Dimensions W x L x H (Inches)
17.25 x 9.25 x 7.5
