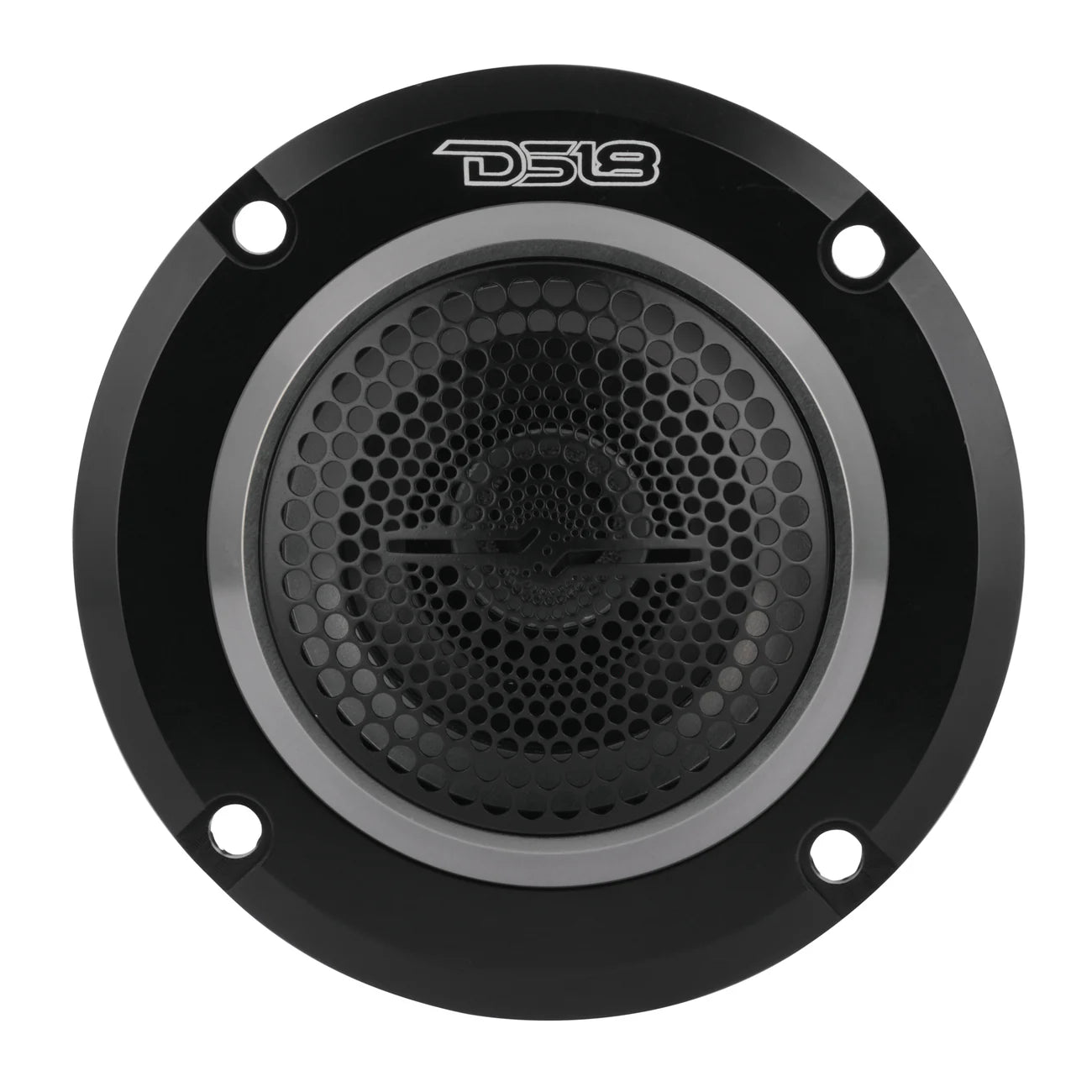

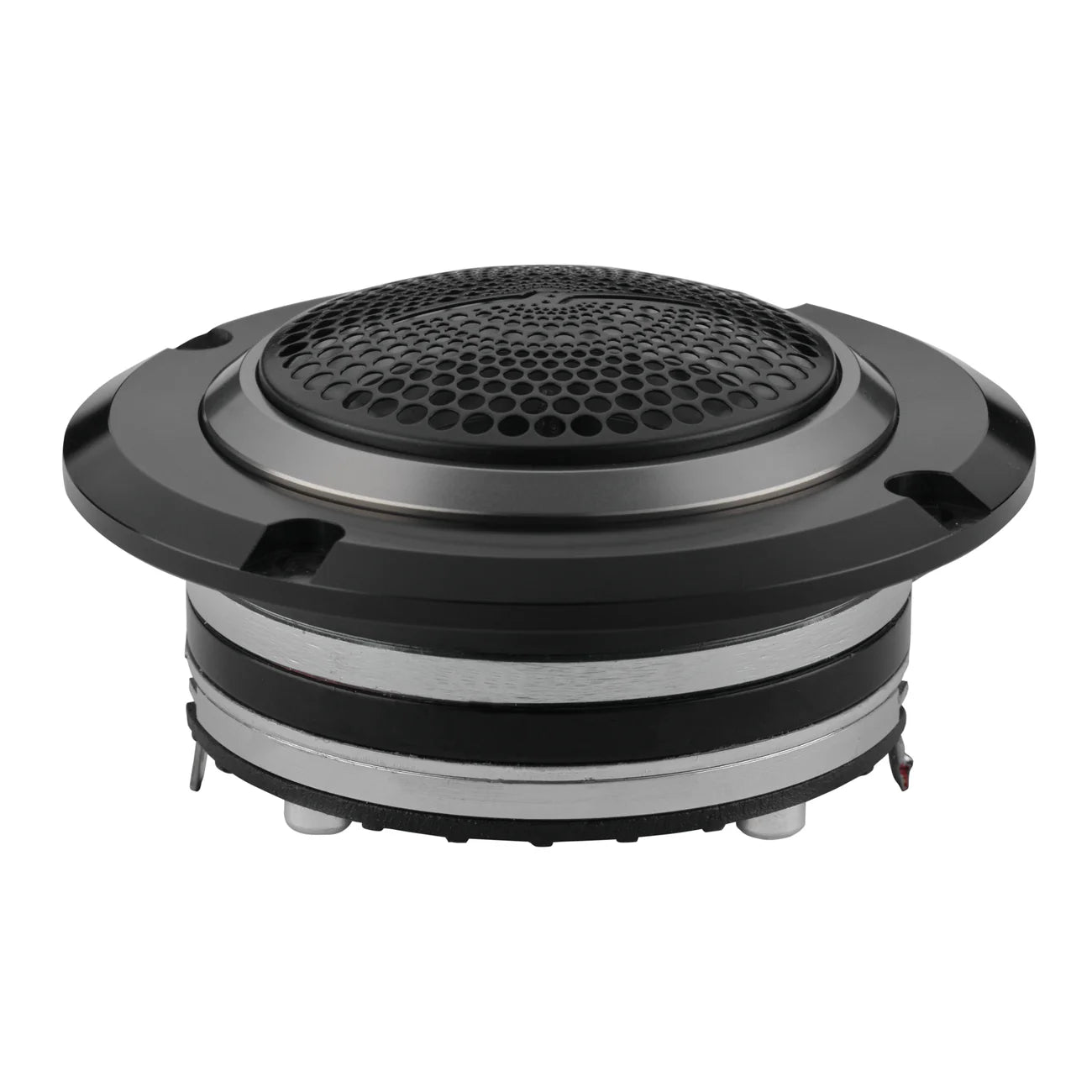

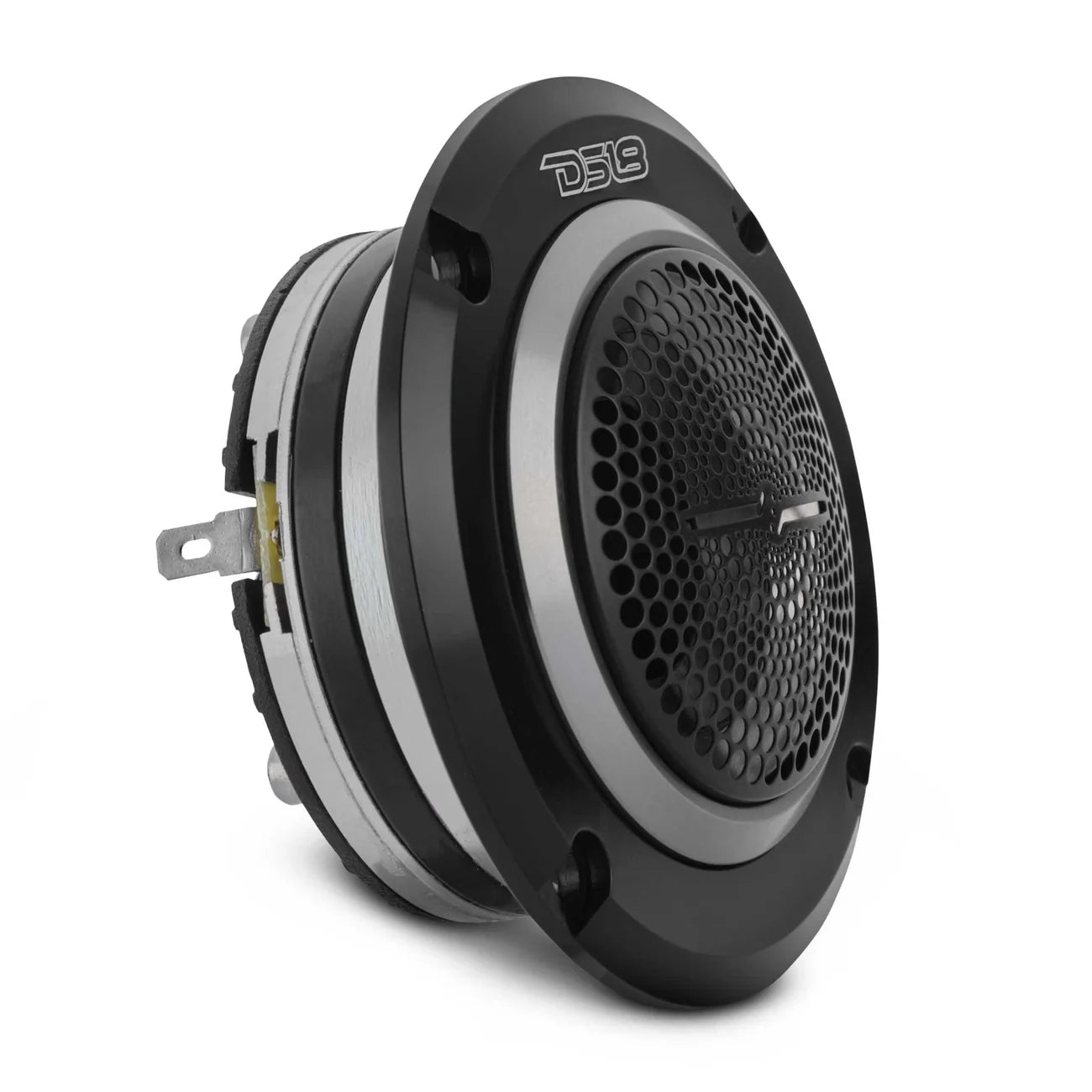

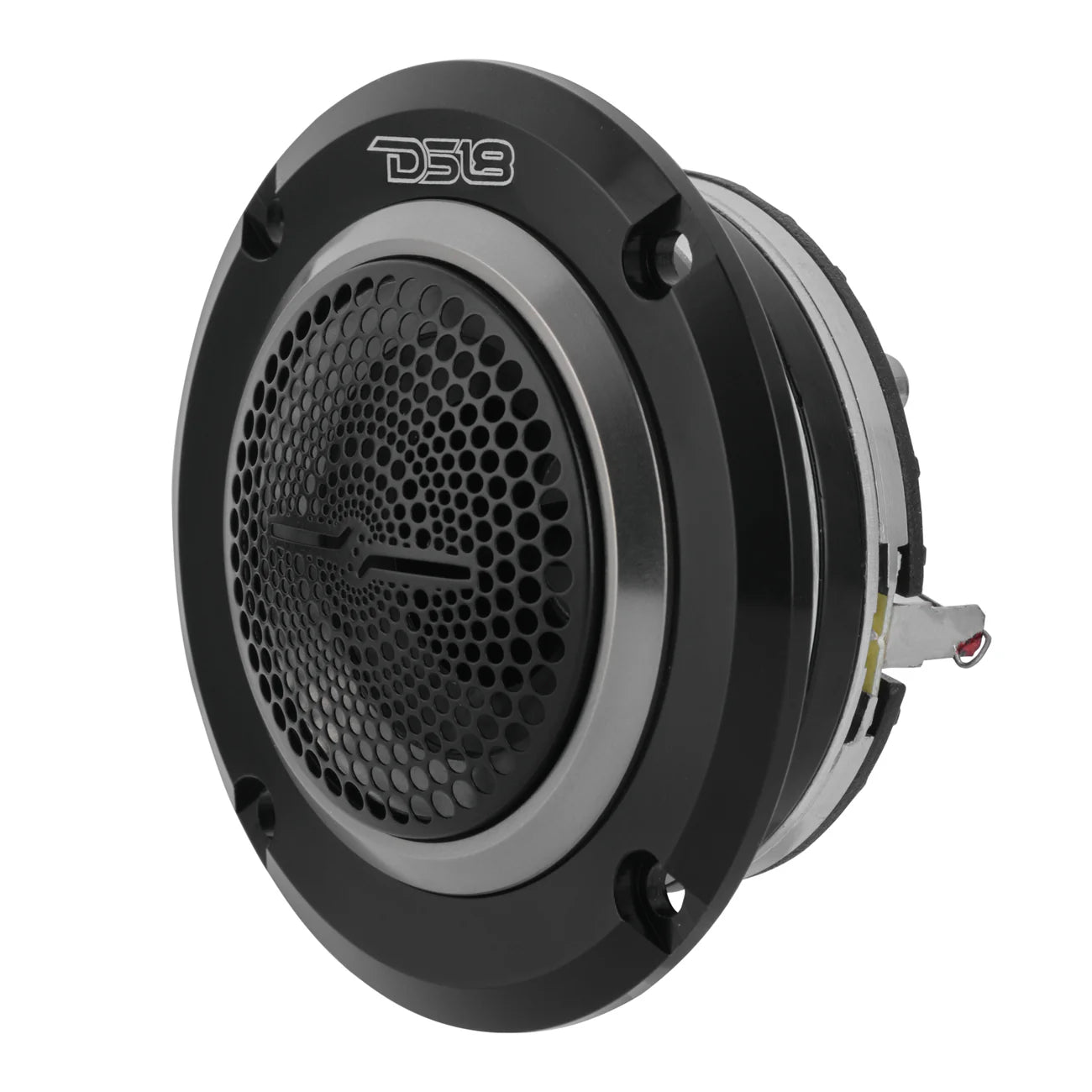

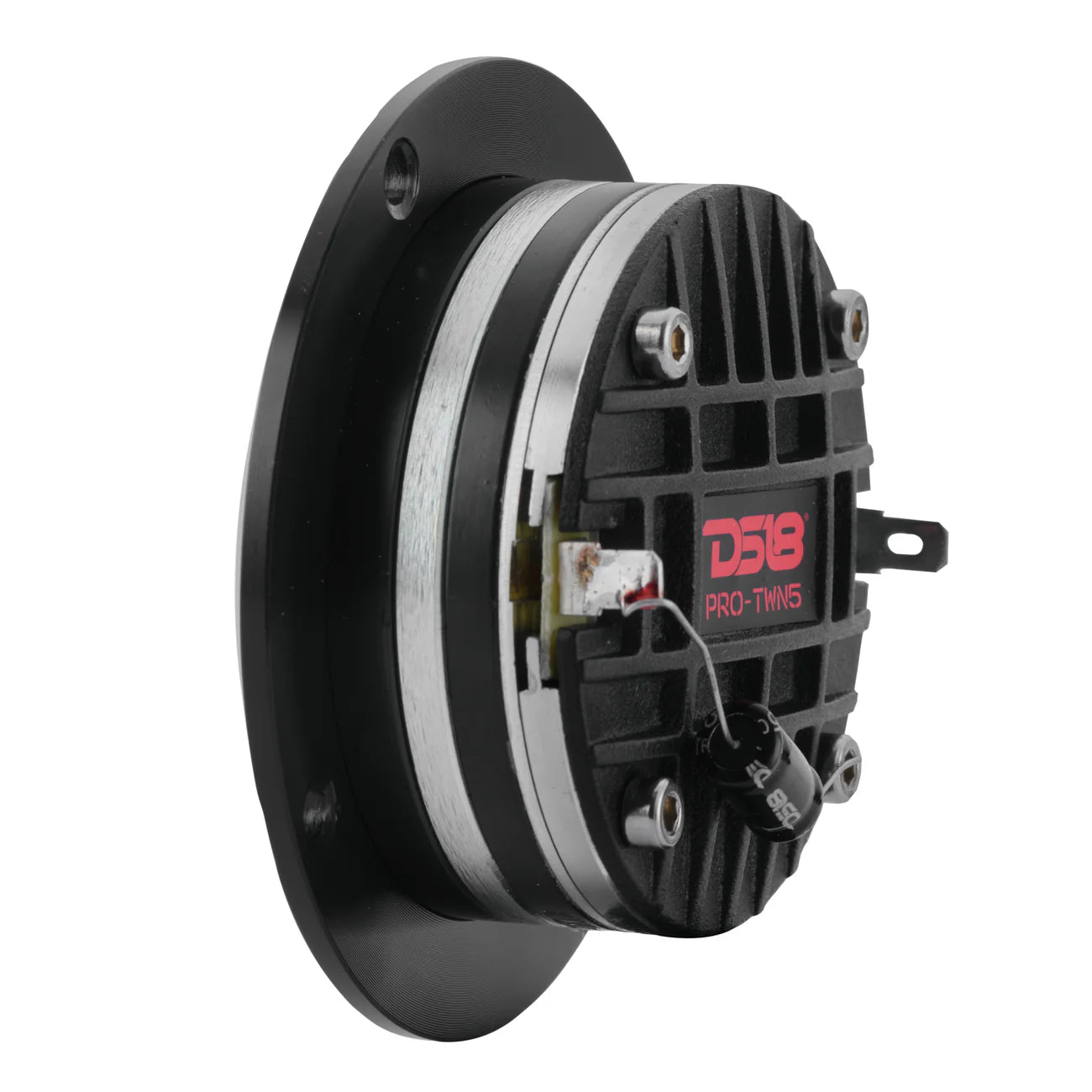

DS18 PRO-TWN5 -3.6" High Compression Neodymium Hybrid Driver/Tweeter 200 Watts 1.5 " Pen 4-Ohm Vc

DS18 PRO-TWN5 -3.6" High Compression Neodymium Hybrid Driver/Tweeter 200 Watts 1.5 " Pen 4-Ohm Vc

$87.95 USD
$87.95 USD
Sale Sold out
Shipping calculated at checkout.

  • KEY FEATURES

    • 3.6" High Compression Hybrid Driver/Tweeter
    • RMS Power: 200 Watts (400 Watts Peak)
    • Impedance: 4 Ohm ~ 107dB
    • Neodymium Magnet
    • Flush Style Mount
    • Easily Repaired With The PRO-TWN5VC

    SPECS

    SKU
    PRO-TWN5
    Nominal Diameter
    3.6"
    Nominal Impedance
    4 Ohm
    Peak Power Handling
    400W
    Program Power Handling
    200W
    AES Power Handling
    100W
    Sensitivity (1w/1m)
    107dB
    Frequency Response
    1.5KHz-20KHz
    Recommended Hi Pass Crossover
    2KHz

    MOTOR

    Voice Coil Diameter
    1.5"/37.8mm
    Voice Coil Former Material
    KSV
    Winding Material
    CCAR
    Diaphragm Material
    PEN
    Magnet Material
    Neodymium
    Magnet Size
    2.75" x 0.2"
    Body Material
    Aluminum
    Bullet Material
    CNC Aluminum

    MEASUREMENT

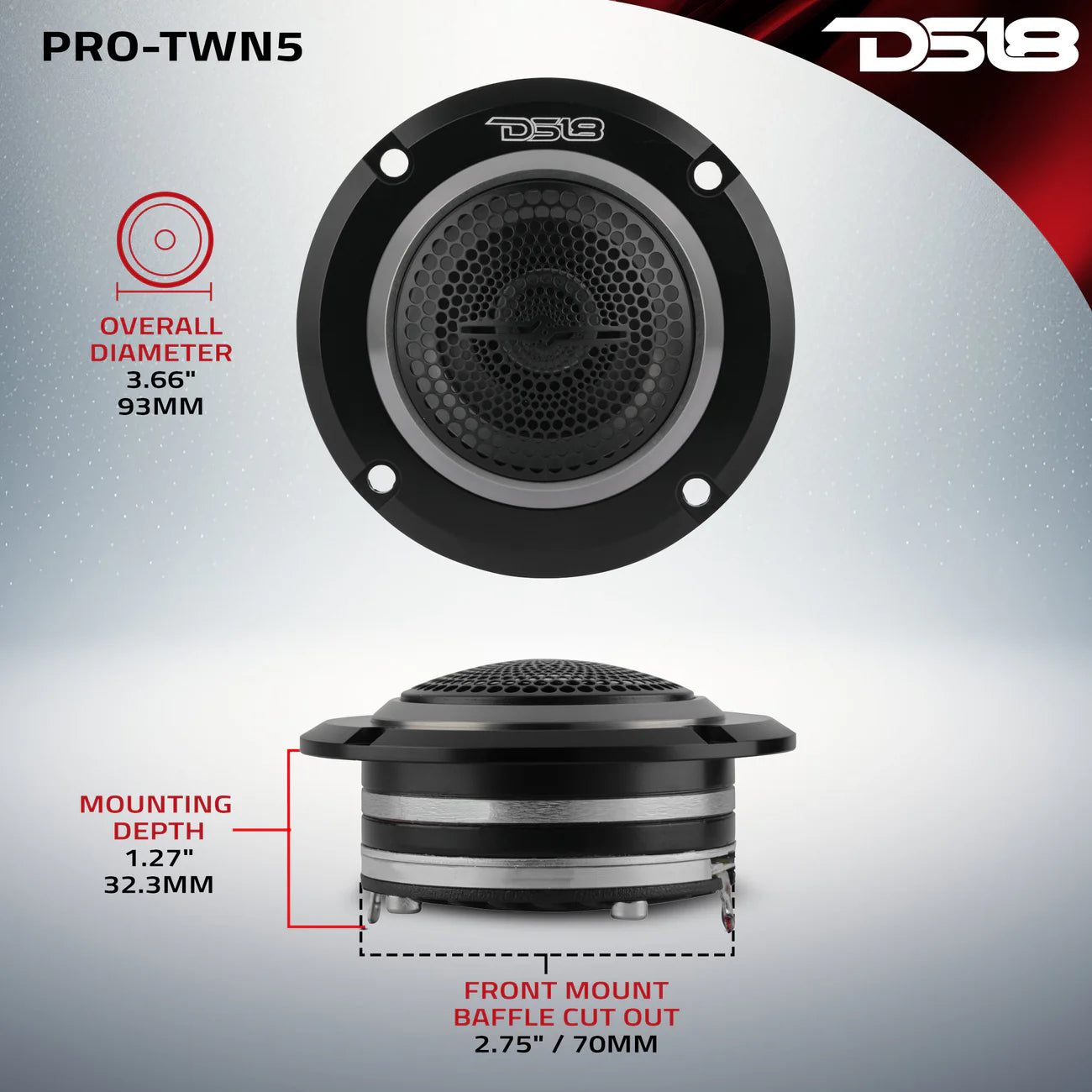

    Overall Diameter
    3.66" / 93mm
    Overall Depth
    2" / 52.2mm
    Front Mount Baffle Cutout
    2.75" / 70mm
    Mounting Depth
    1.27" / 32.3mm
    Gross Single Unit Weight (lb)
    1.5
    Single Unit Box Dimensions W x L x H (Inches)
    4.5 x 4.0 x 2.4
    Quantity of Units in Master Carton
    20
    Gross Master Carton Weight (lb)
    31
    Master Carton Dimensions W x L x H (Inches)
    21.7 x 10.2 x 6.3
