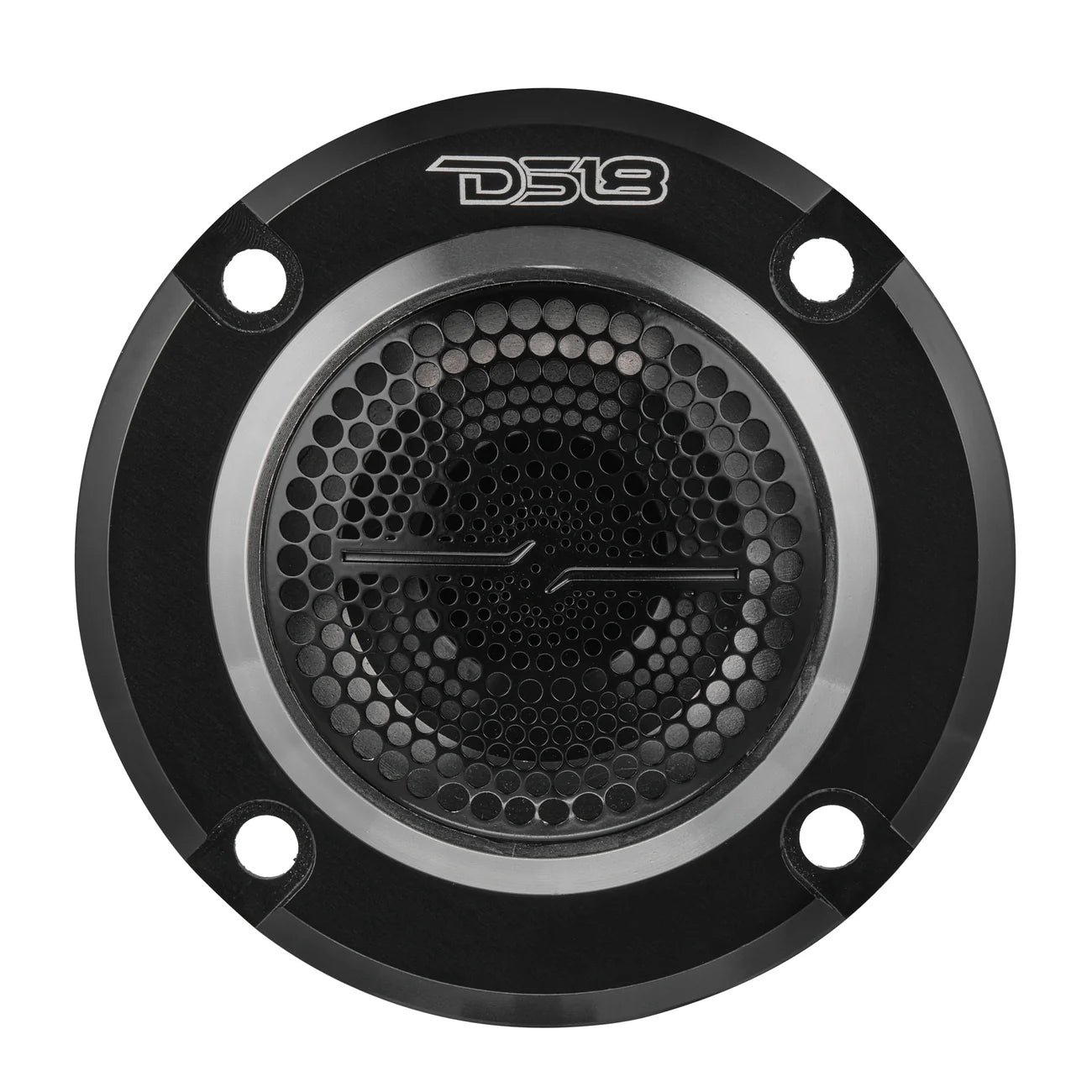

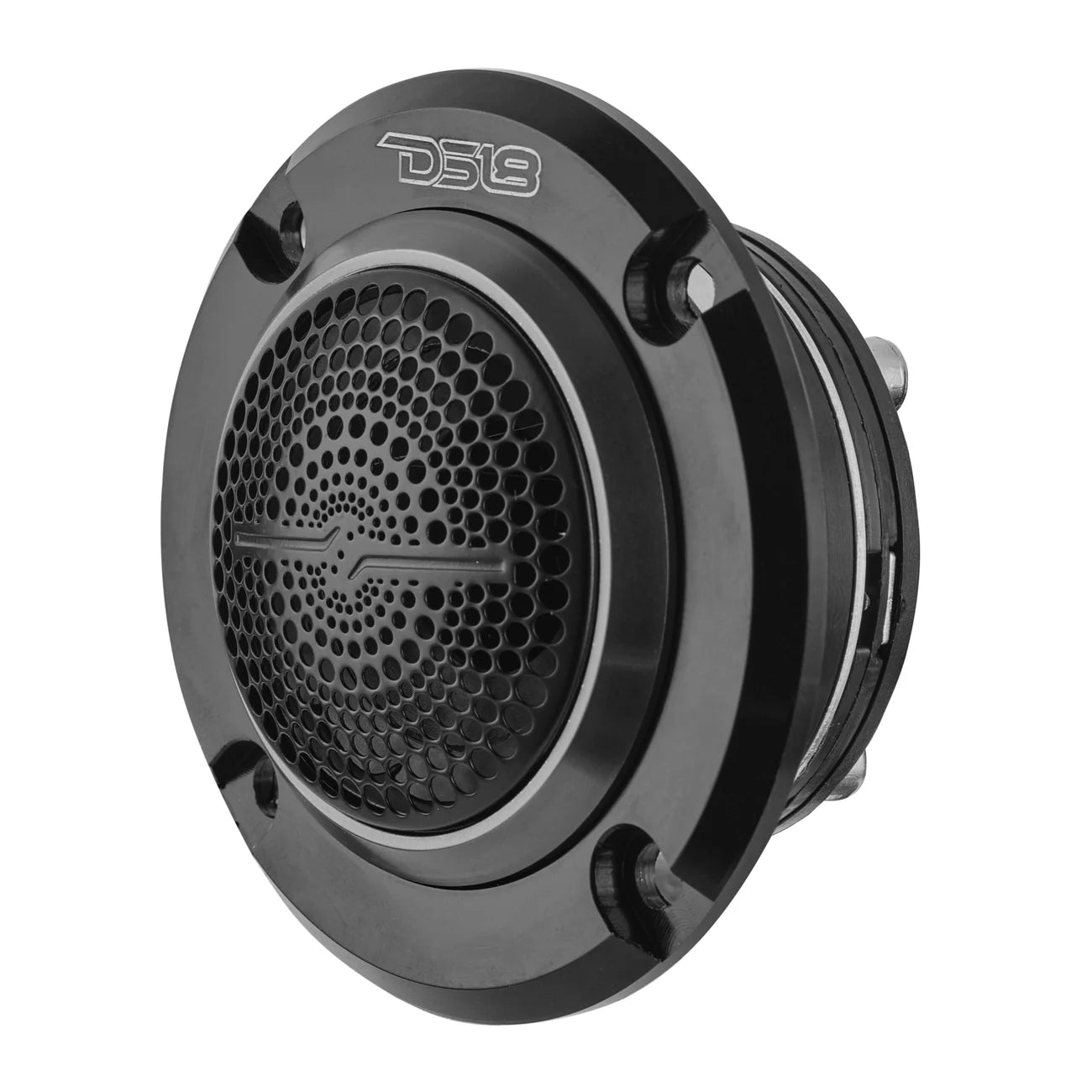

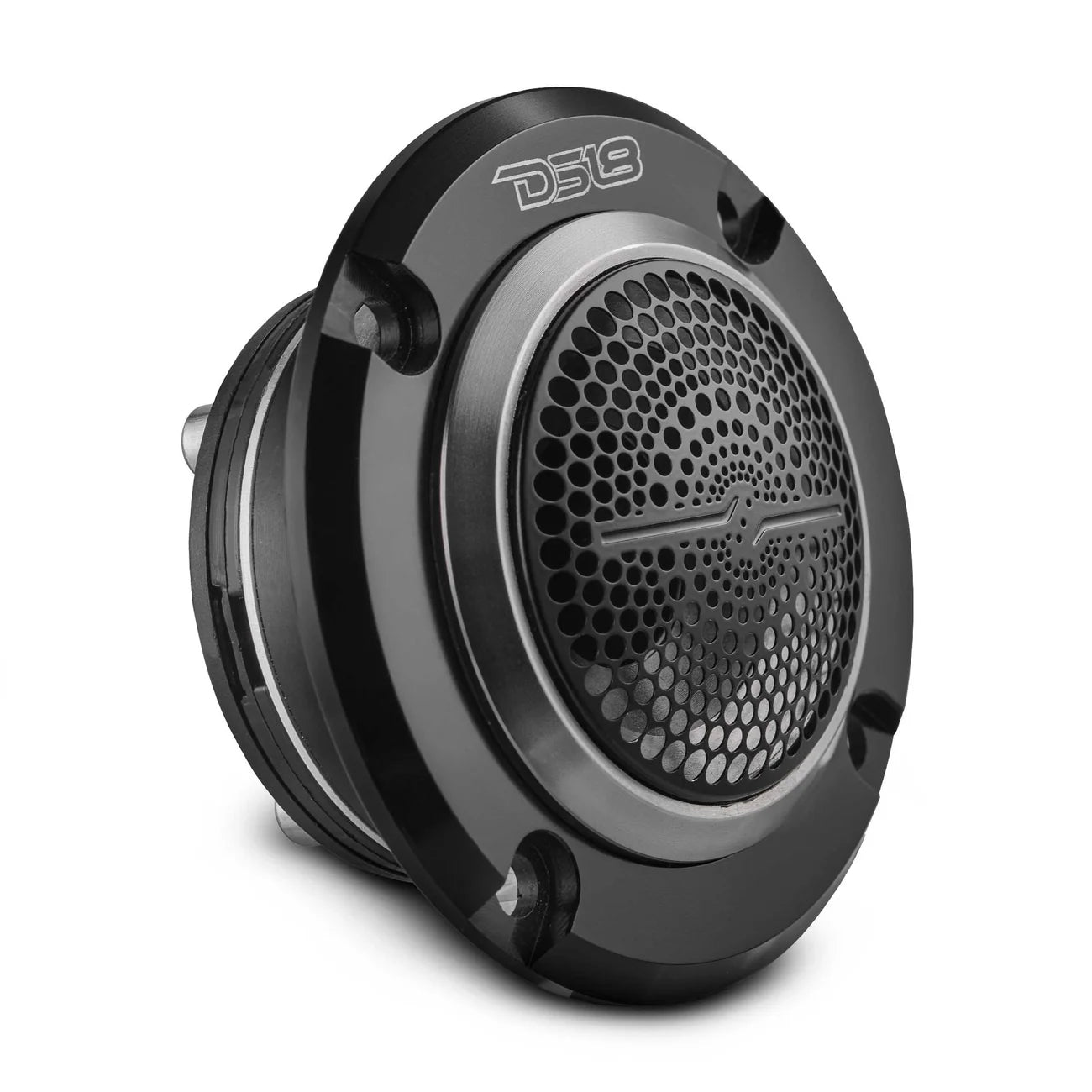

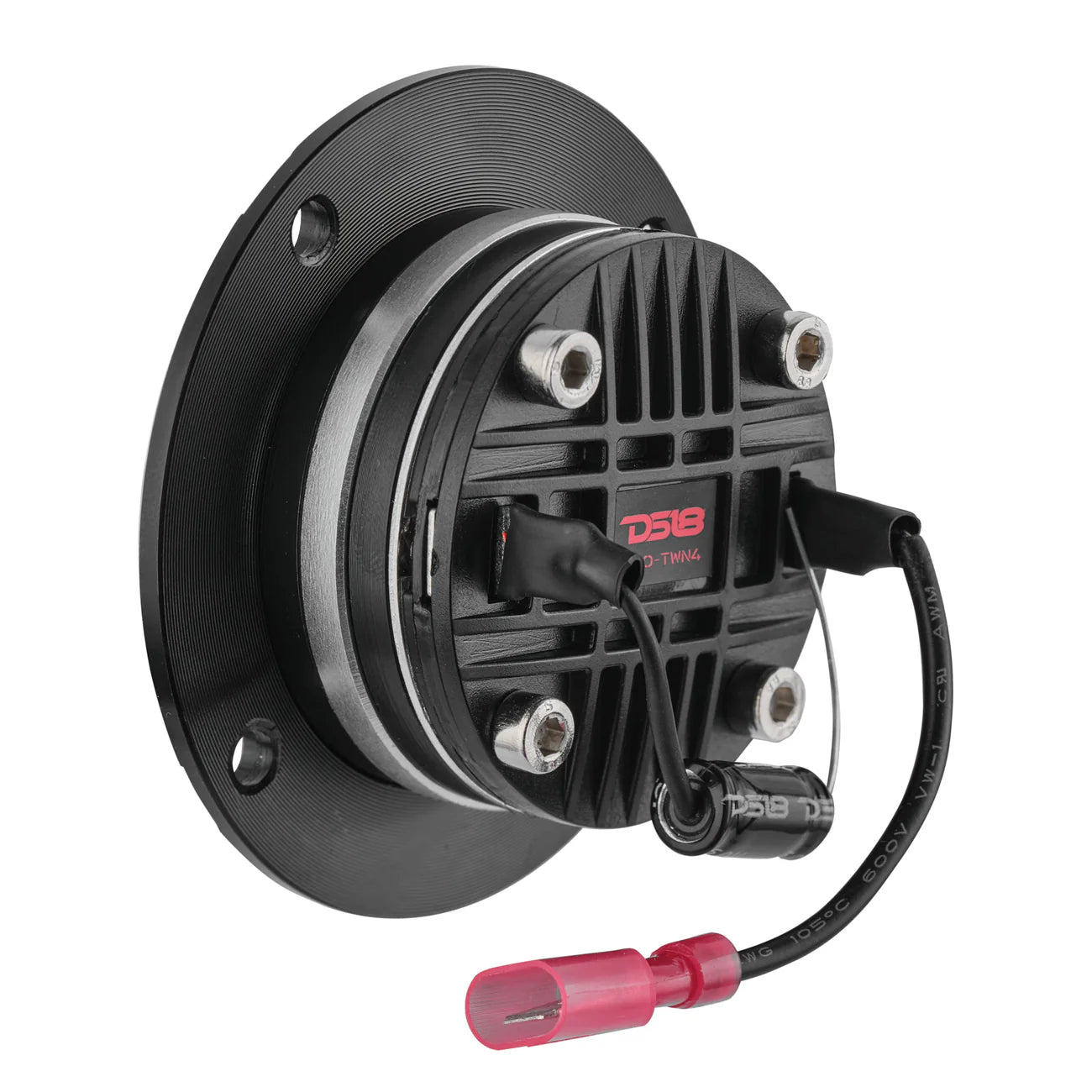

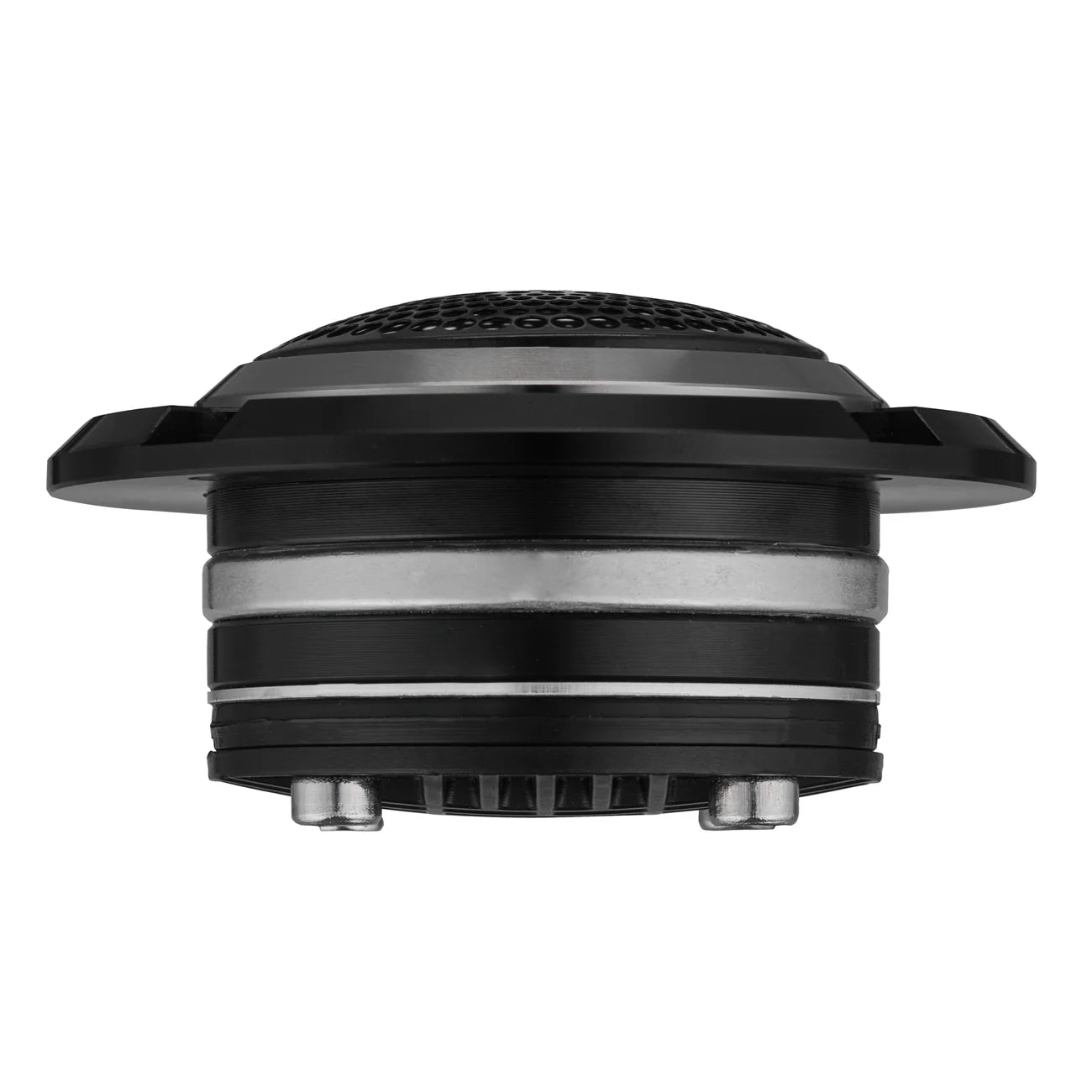

DS18 PRO-TWN4-3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc

SPECS

SKU
PRO-TWN4
Nominal Diameter
3"
Nominal Impedance
4 Ohm
Peak Power Handling
280W
Program Power Handling
140W
AES Power Handling
70W
Sensitivity (1w/1m)
105dB
Frequency Response
1.5KHz-20KHz
Recommended Hi Pass Crossover
2KHz

MOTOR

Voice Coil Diameter
1"/25.4mm
Voice Coil Former Material
KSV
Winding Material
CCAR
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Size
2" x 0.2"
Body Material
Aluminum
Bullet Material
CNC Aluminum

MEASUREMENT

Overall Diameter
2.95"/75mm
Overall Depth
1.81"/45.9mm
Front Mount Baffle Cutout
2.05"/52mm
Mounting Depth
1.13"/28.7mm
Gross Single Unit Weight (lb)
0.8
Single Unit Box Dimensions W x L x H (Inches)
3.8 x 3.3 x 2.2
Quantity of Units in Master Carton
30
Gross Master Carton Weight (lb)
25
Master Carton Dimensions W x L x H (Inches)
18.1 x 9.1 x 7.9
