Cs Pro Audio LLC, DS18

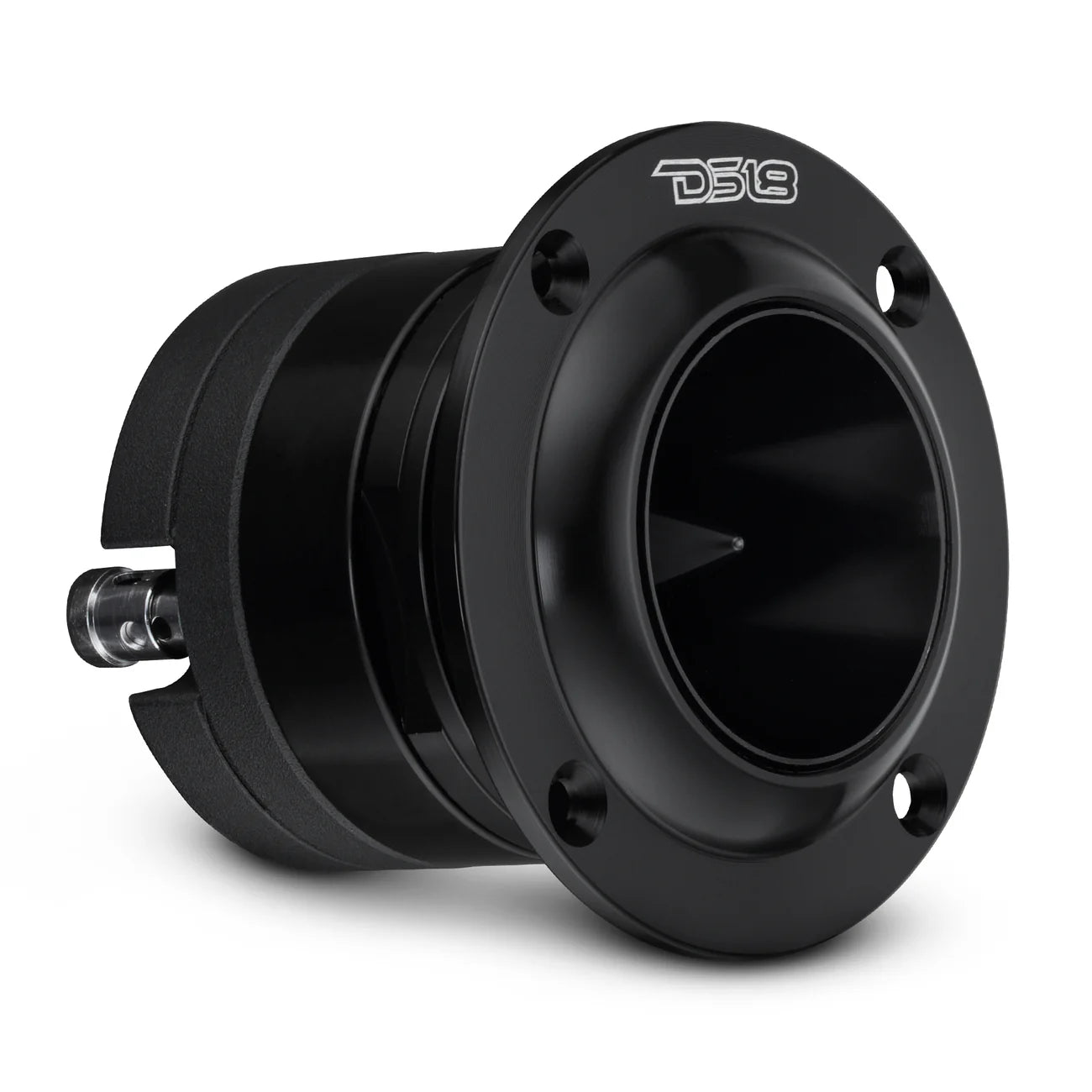

DS18 PRO-TW820- 2.3" High Compression Neodymium Super Bullet Tweeter 100 Watts 1.4" Aluminum 4-Ohm Vc

DS18 PRO-TW820- 2.3" High Compression Neodymium Super Bullet Tweeter 100 Watts 1.4" Aluminum 4-Ohm Vc

$71.95 USD
$71.95 USD
Sale Sold out
Shipping calculated at checkout.

  • KEY FEATURES

    • 2.3" High Compression Super Bullet Tweeter
    • MAX Power: 200 Watts
    • RMS Power: 100 Watts
    • Neodymium Magnet
    • Adjustable Surface Mount / Single
    • Easily Repaired With The PRO-TW820VC

    SPECS

    SKU
    PRO-TW820
    Nominal Diameter
    2.3"-3"
    Nominal Impedance
    4 Ohm
    AES Power Handling
    50W
    Program Power Handling
    100W
    Peak Power Handling
    200W
    Sensitivity (1w/1m)
    105dB
    Frequency Response
    700Hz-20kHz
    Recommended Hi Pass Crossover
    3KHz

    MOTOR

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    KAPTON
    Winding Material
    CCA
    Diaphragm Material
    Aluminum
    Magnet Material
    Neodymium
    Body Material
    Aluminum

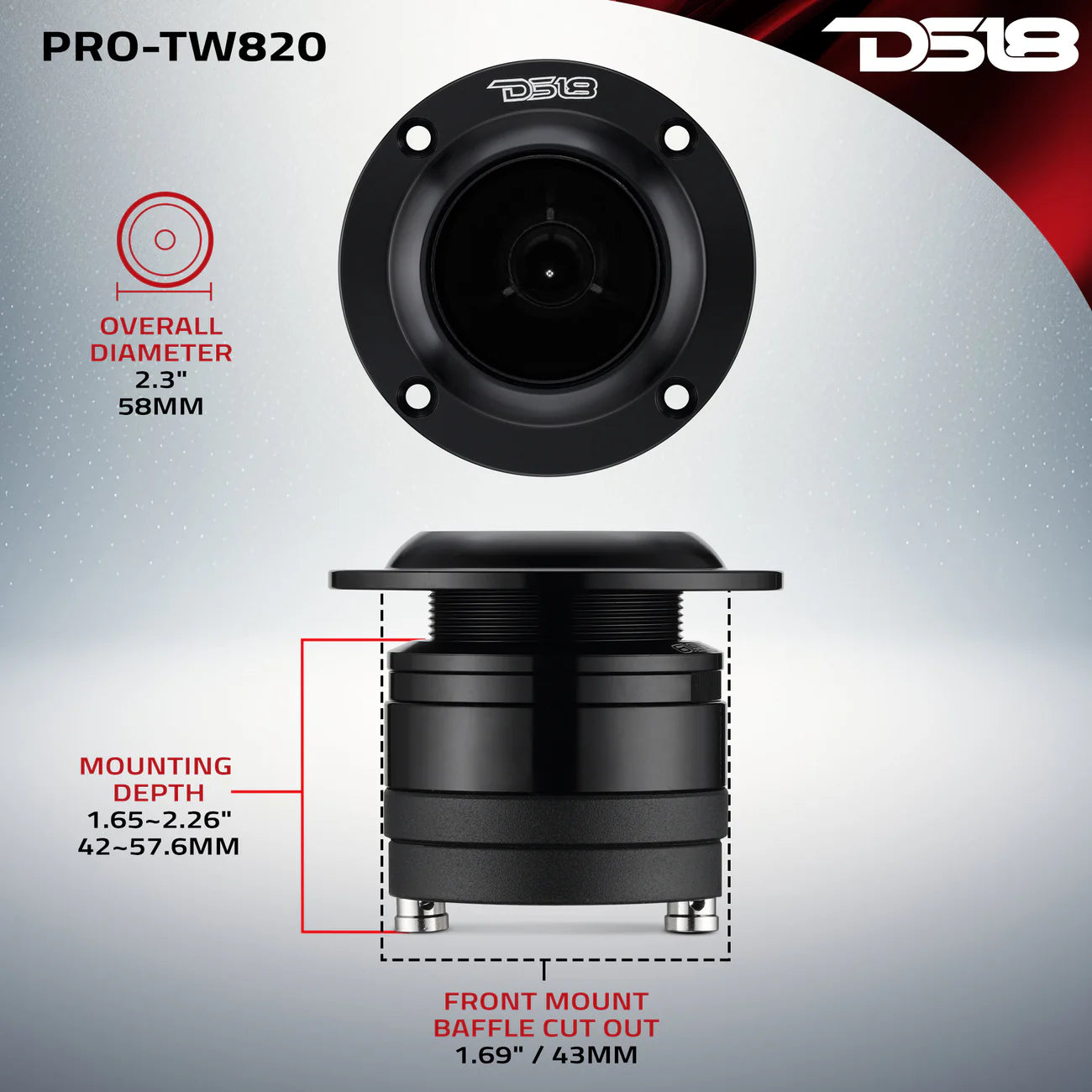

    MEASUREMENT

    Overall Diameter
    2.28" / 58mm
    Overall Depth
    2.67" / 68mm
    Front Mount Baffle Cutout
    1.69" / 43mm
    Mounting Depth
    1.65~2.55" / 42~65mm
    Gross Single Unit Weight (lb)
    1.5
    Single Unit Box Dimensions W x L x H (Inches)
    3.25 x 2.75 x 3
    Quantity of Units in Master Carton
    30
    Gross Master Carton Weight (lb)
    38
    Master Carton Dimensions W x L x H (Inches)
    14 x 10.25 x 7.25

View full details
