SKU PRO-CF6.4SL Nominal Diameter 6.5" / 165mm Nominal Impedance 4 OHMS RMS Power Handing 250 Watts Maximum Power Handing 500 Watts Sensitivity (1w/1m) 95 dB Frequency Response 80Hz-12.5KHz Recommended Hi Pass Crossover 100 Hz
SPECS
Voice Coil Diameter 1.5" / 38.5 mm Voice Coil Former Material Kapton Winding Material CCAW Basket Material Steel Magnet Weight 20Oz
THIELE & SMALL PARAMETERS
Vas 9L / 0.317 ft3 Xmax 2.5 mm Fs 128Hz Qms 15.55 Qes 0.891 Qts 0.842 Re 3.6 OHMS
MEASUREMENTS

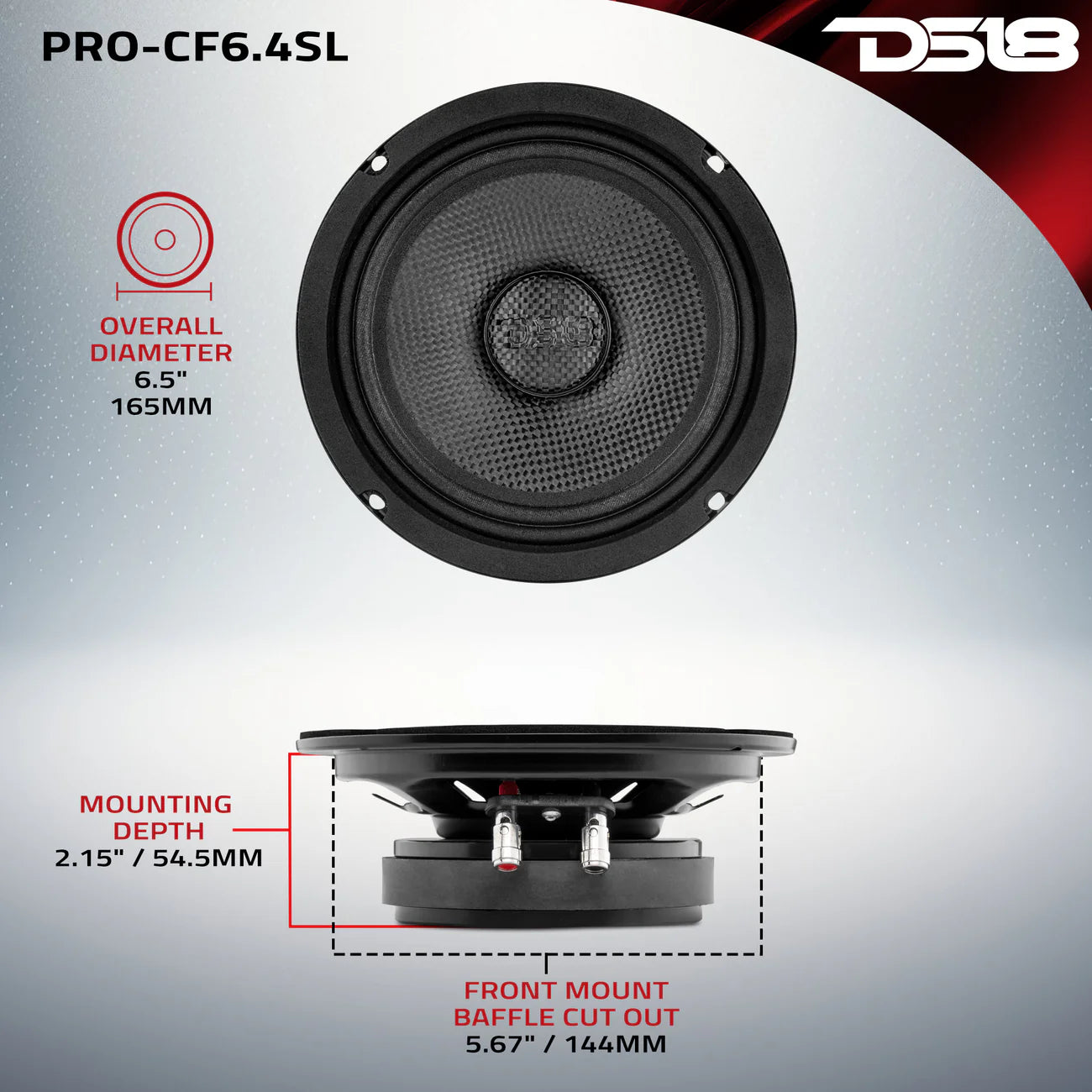

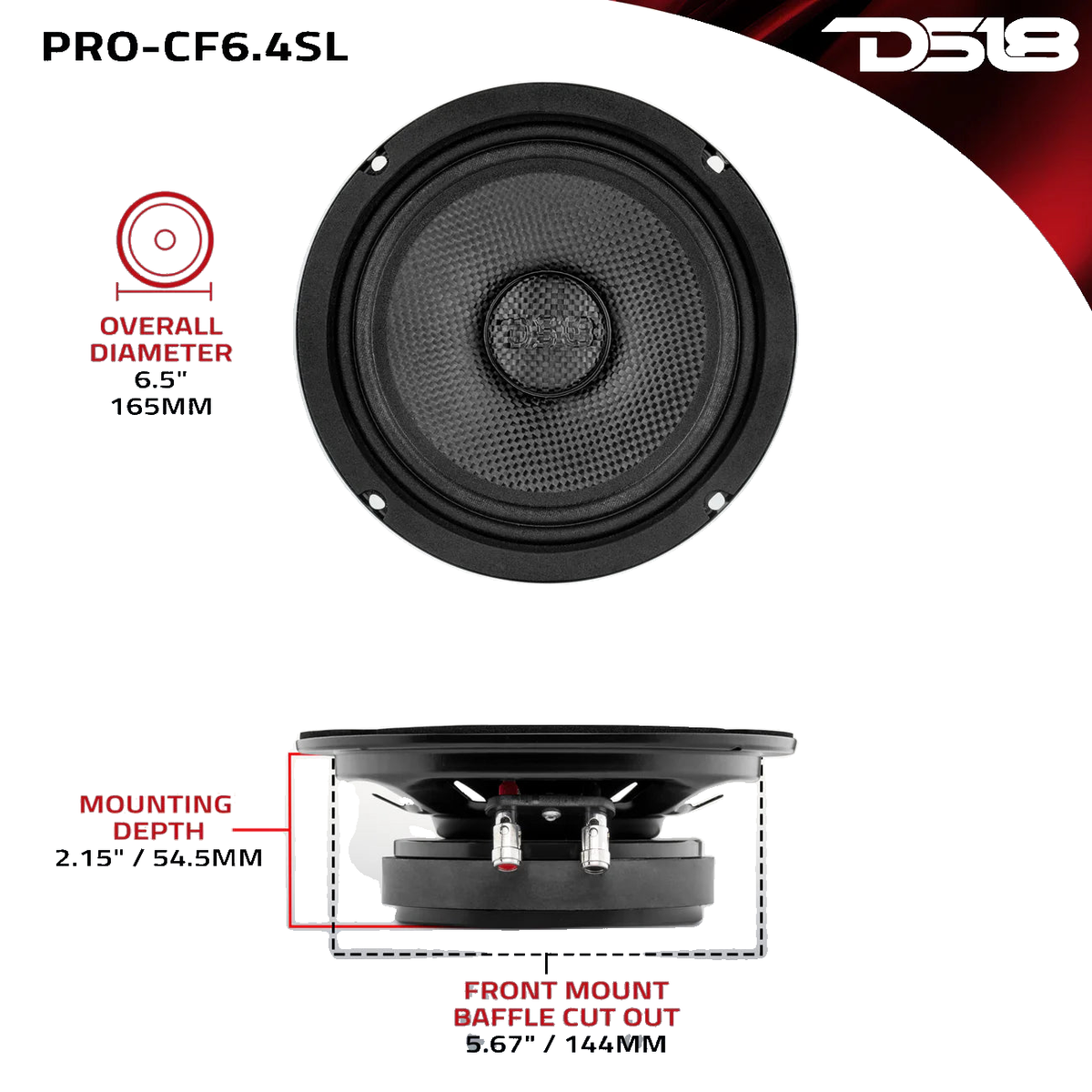

Overall Diameter 6.5" / 165 mm Front Mount Baffle Cutout 5.67" / 144 mm Mounting Depth 2.15" / 54.5 mm Overall Depth 2.38" / 60.5 mm Product Weight 3.5 lbs Product Dimensions 7 x 7 x 3 M/C Weight 30 lbs M/C Dimensions 14.8 x 14.5 x 7 M/C QTY 8 Sold In Piece
