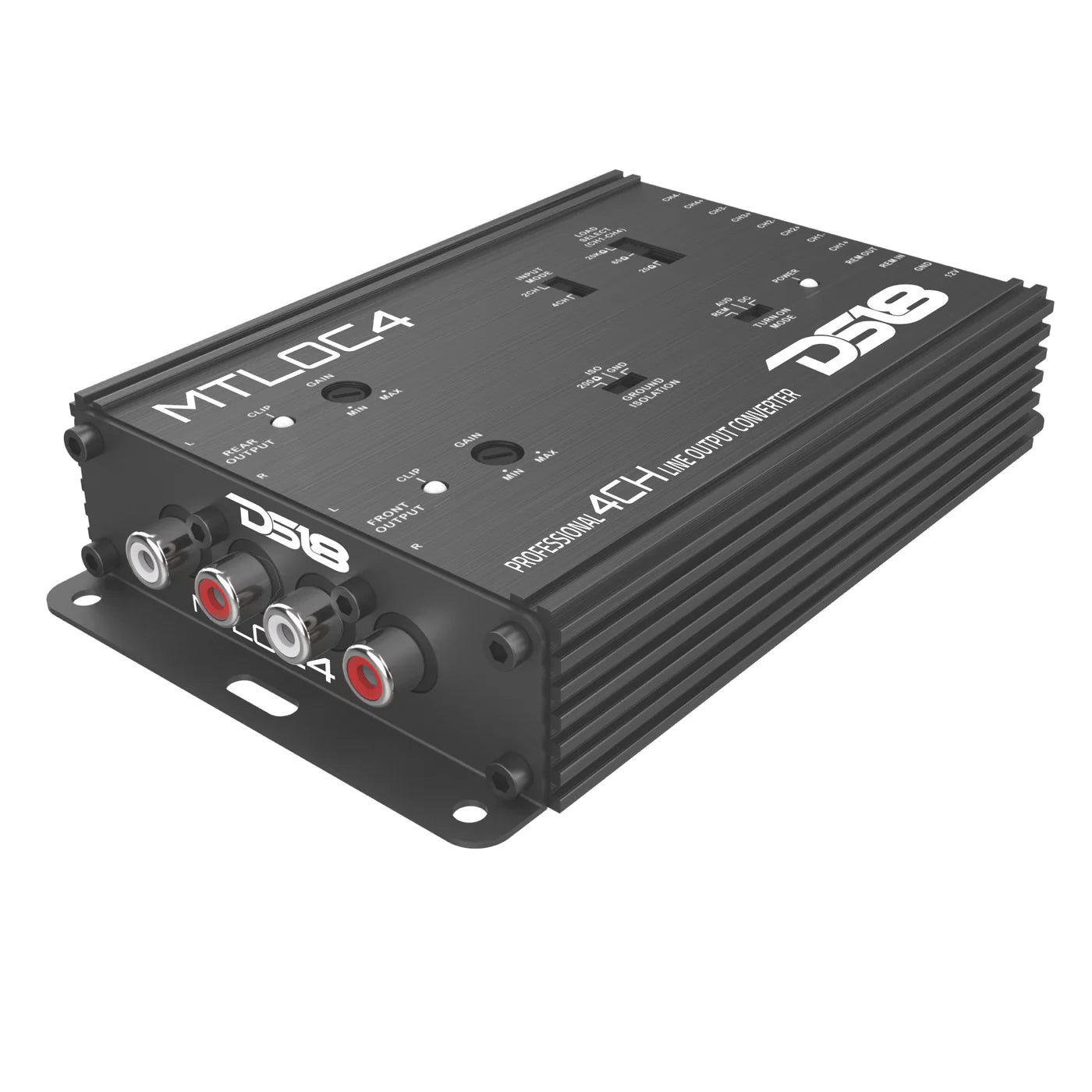

DS18 MTLOC4 - 4-Channel High-to-Low Level Line Output Converter with Remote Turn-On
DS18 MTLOC4 - 4-Channel High-to-Low Level Line Output Converter with Remote Turn-On
Couldn't load pickup availability
PRODUCT OVERVIEW
4-Channel High-to-Low Level Line Output Converter with Remote Turn-On

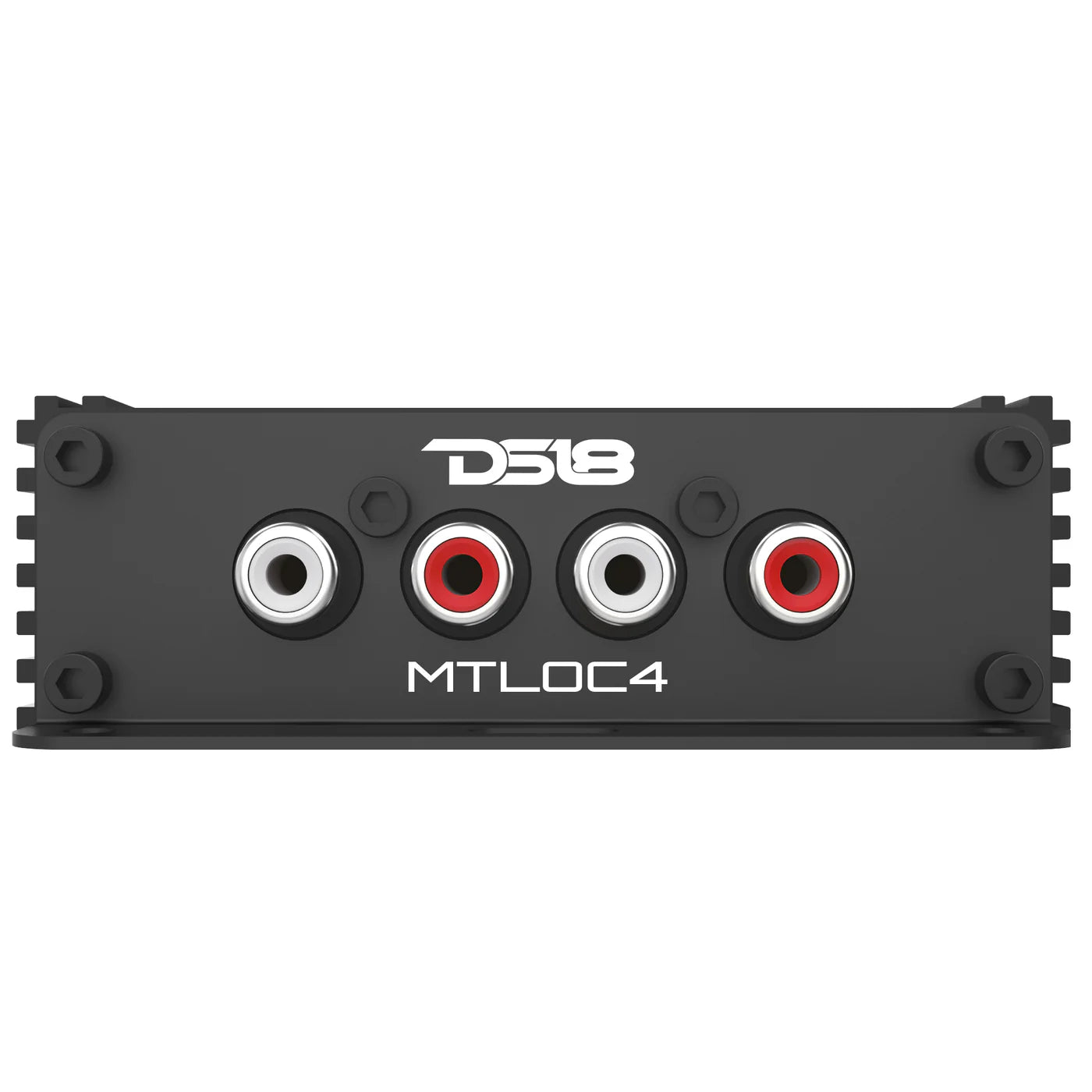

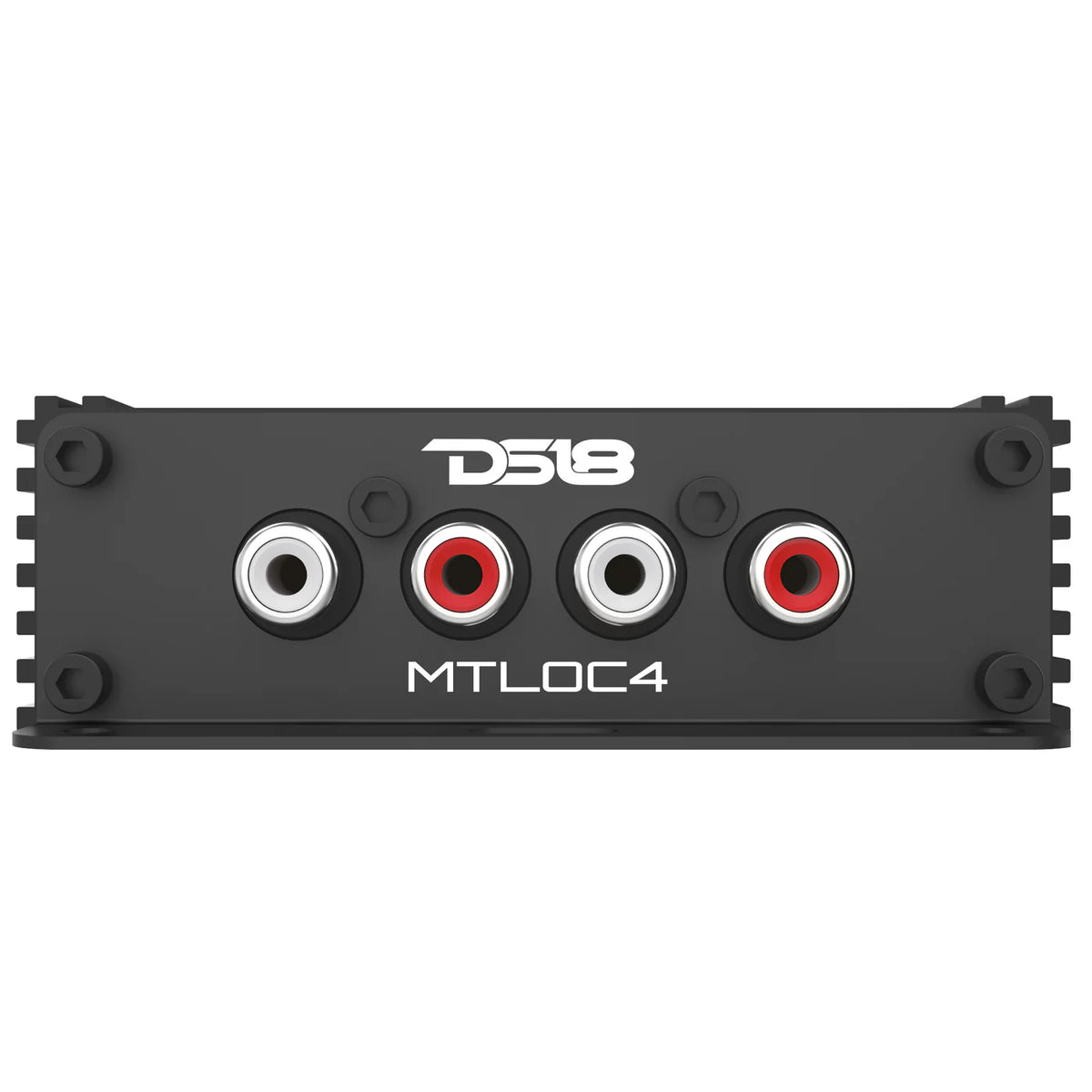

The MTLOC4 converts four factory speaker outputs into four RCA outputs, expanding your upgrade options. It offers selectable input impedance (20, 60, or 20k ohms) to prevent factory system errors.
Effortless Amplifier Activation
Auto turn-on via audio detection, DC offset, or remote trigger allows plug-and-play convenience and reduces installation complexity.
Built Tough and Compact
Constructed with an anodized aluminum shell and surface mount components, the MTLOC4 resists interference and runs cool. Its small footprint fits most vehicle setups.
Crystal-Clear Sound
Delivering less than 0.01% THD from 10Hz to 20kHz, this converter keeps your audio sharp and clean.
SPECIFICATIONS
Maximum Speaker Level Input
Up to 40V (400 watts RMS)
Maximum Preamp Output
Up to 11V
Nominal Conversion Ratio
4:1
Frequency Response
10Hz - 20kHz
Total Harmonic Distortion
0.01%
Signal To Noise Ratio
>110dB
Input Impedance
Selectable 20 / 60 / 20k ohms
Output Impedance
100 ohms
Power Draw
130mA
Recommended Fuse Rating
1A

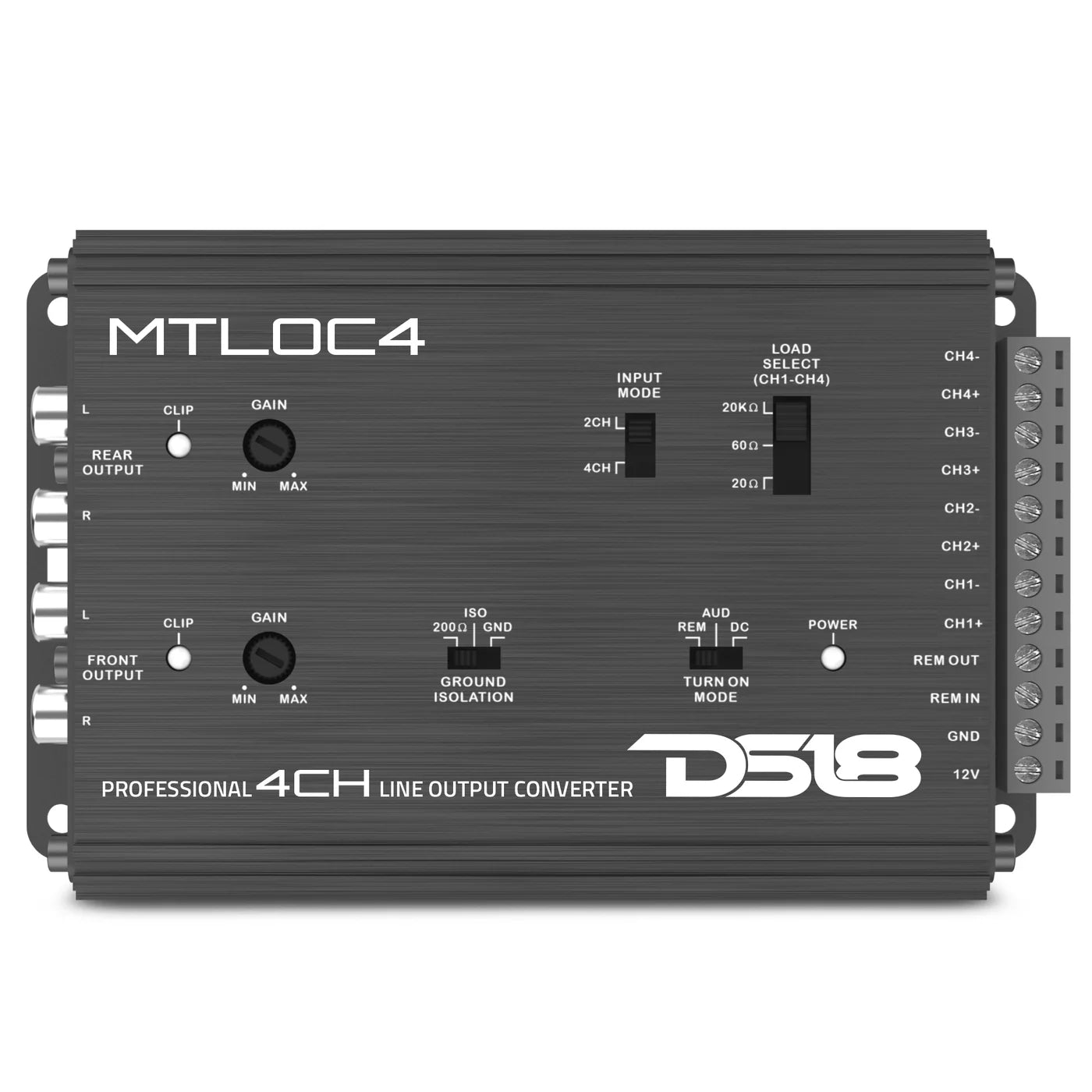

FEATURES
Bass Boost
No
Auto Turn-On
Yes (Audio Sens / REM / DC)
Remote Output
Yes
Level Matching Controls
Yes
Dash Remote Level Control
No
Led Indicators
Power / Clip
Housing Material / Color
Aluminum / Black
Wiring Connector
14ga Quick Connector
Ground Isolation
Selectable (200 ohms / Isolated / Grounded)
Step-Down Method
Transformer
Input Selector
Selectable (2ch / 4ch)
MEASUREMENT
Overall Length
5.7" / 145mm
Overall Width
3.5" / 88mm
Overall Height
1.1" / 28mm
