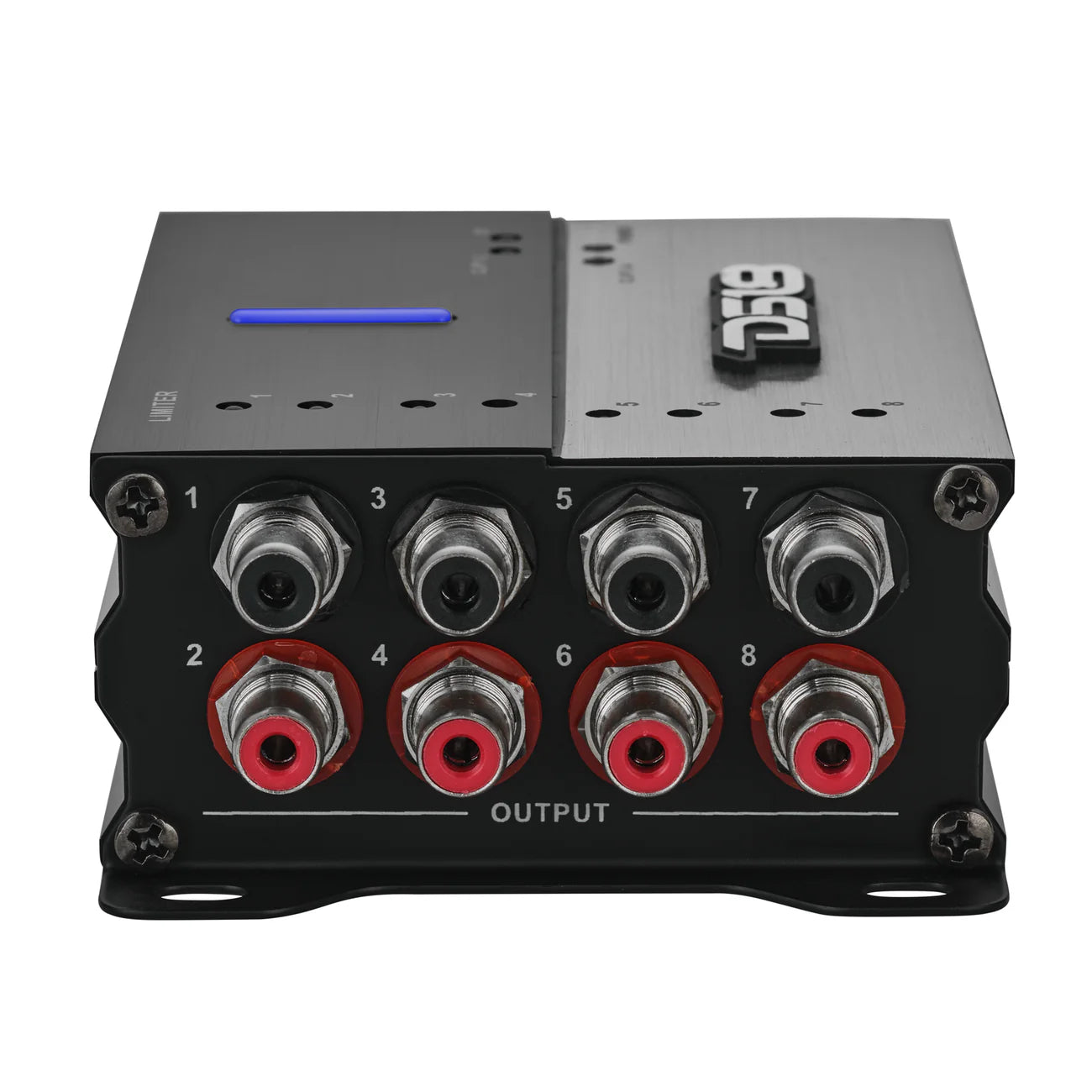

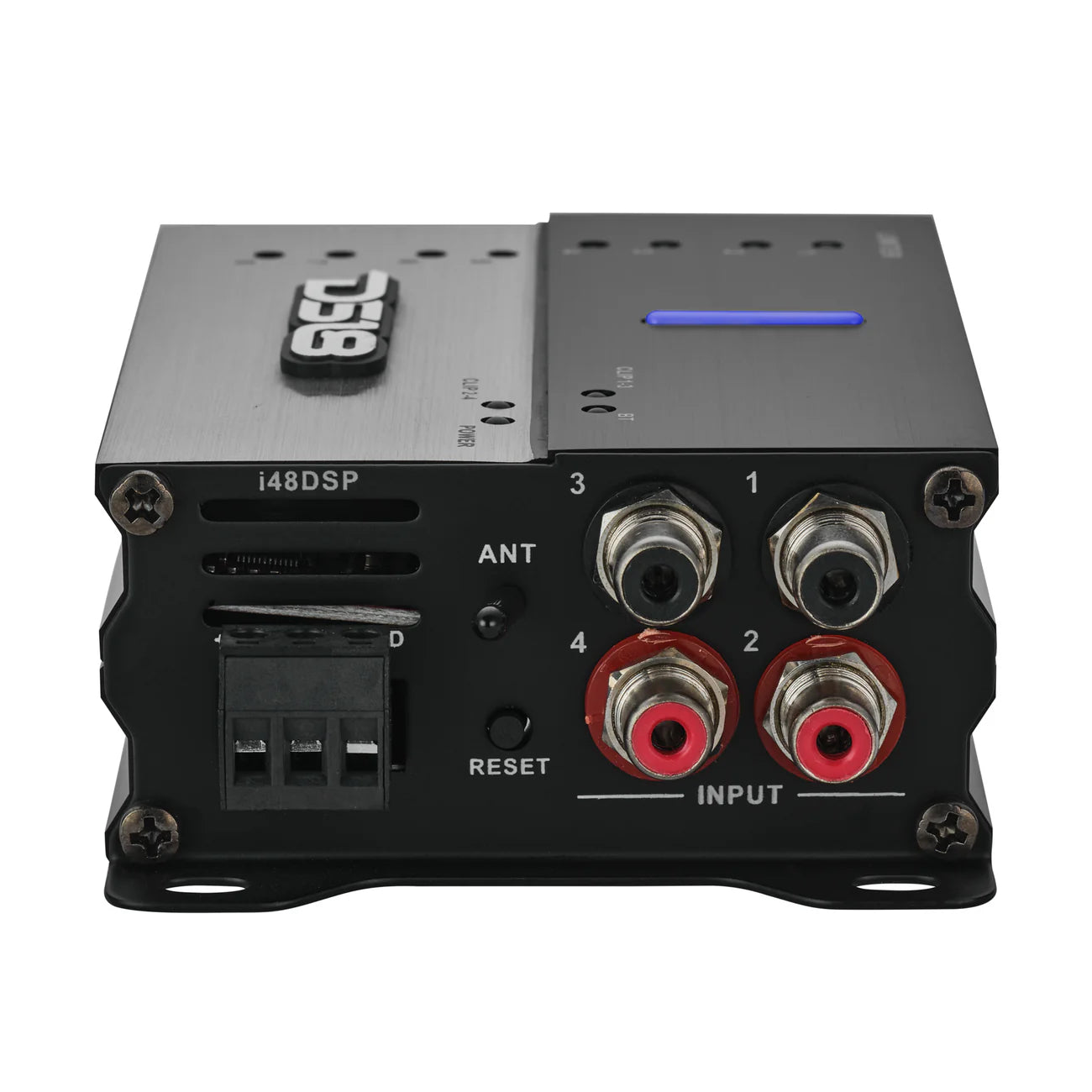

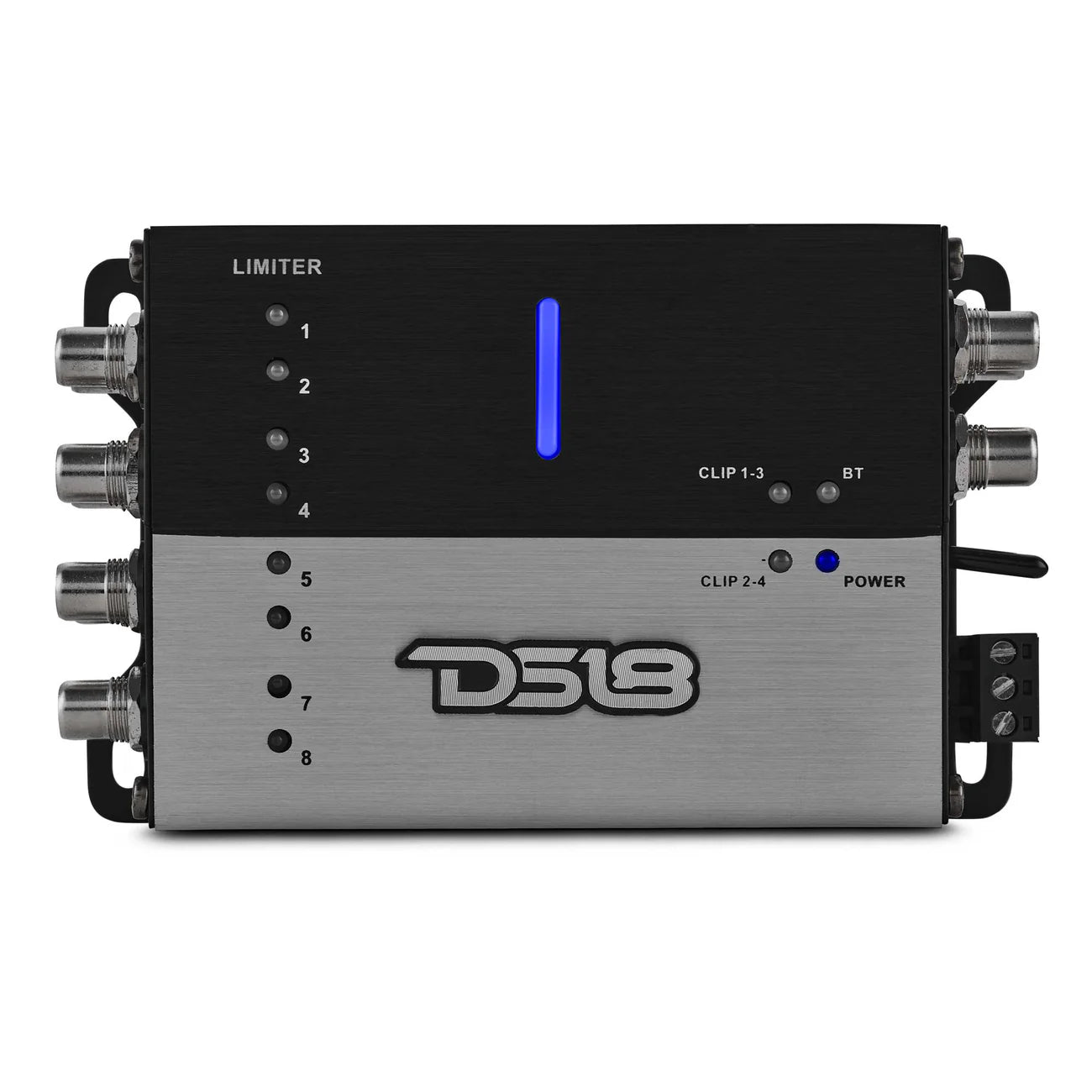

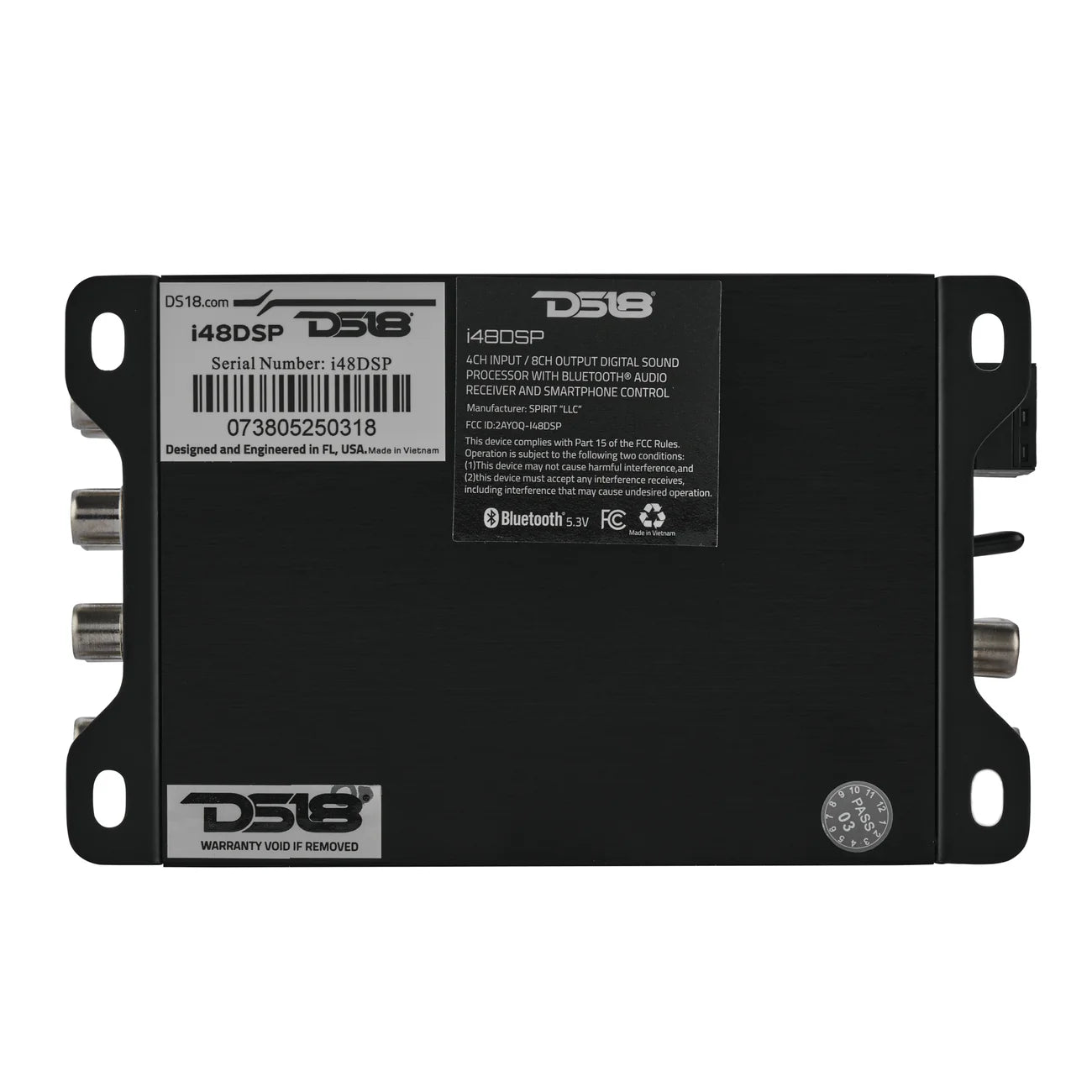

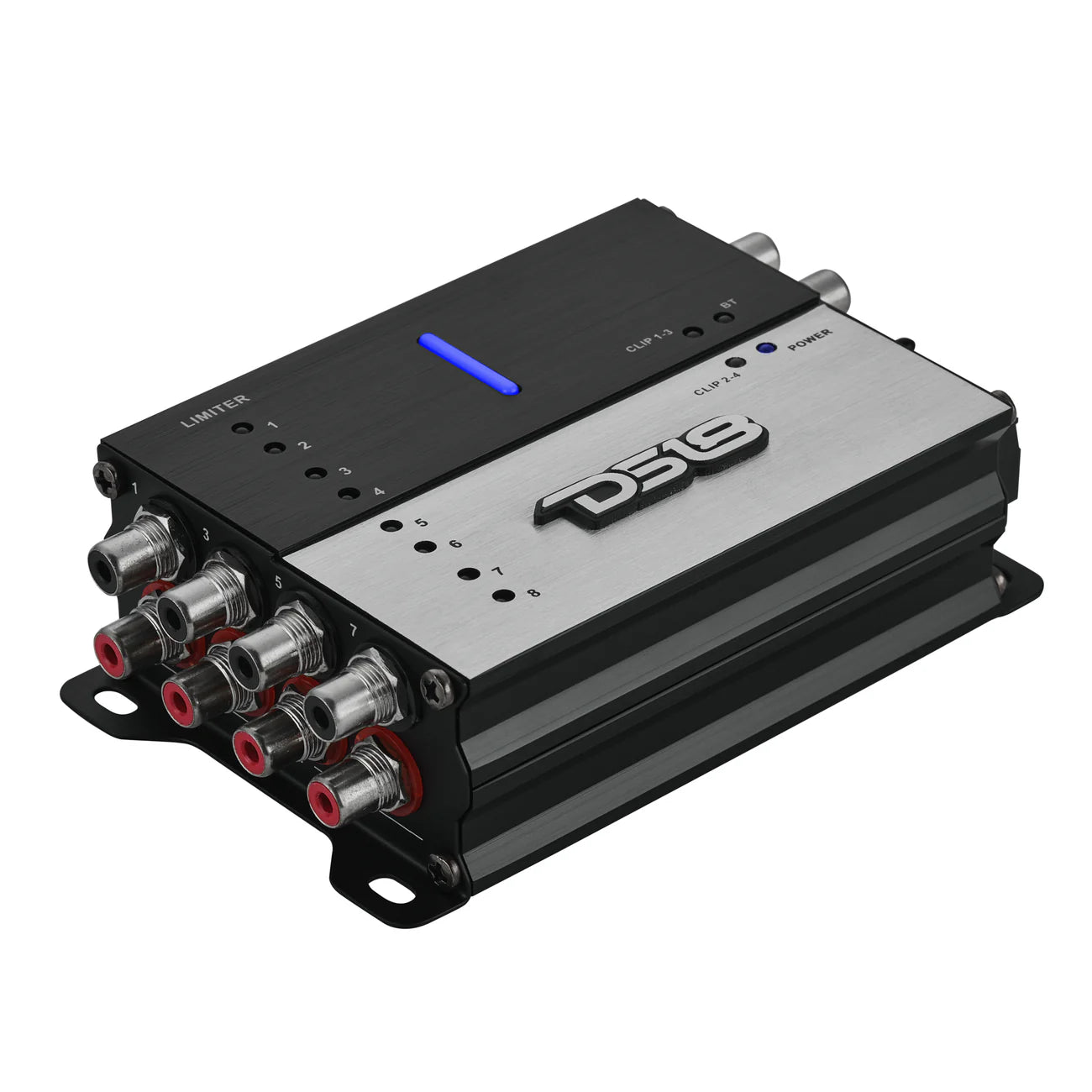

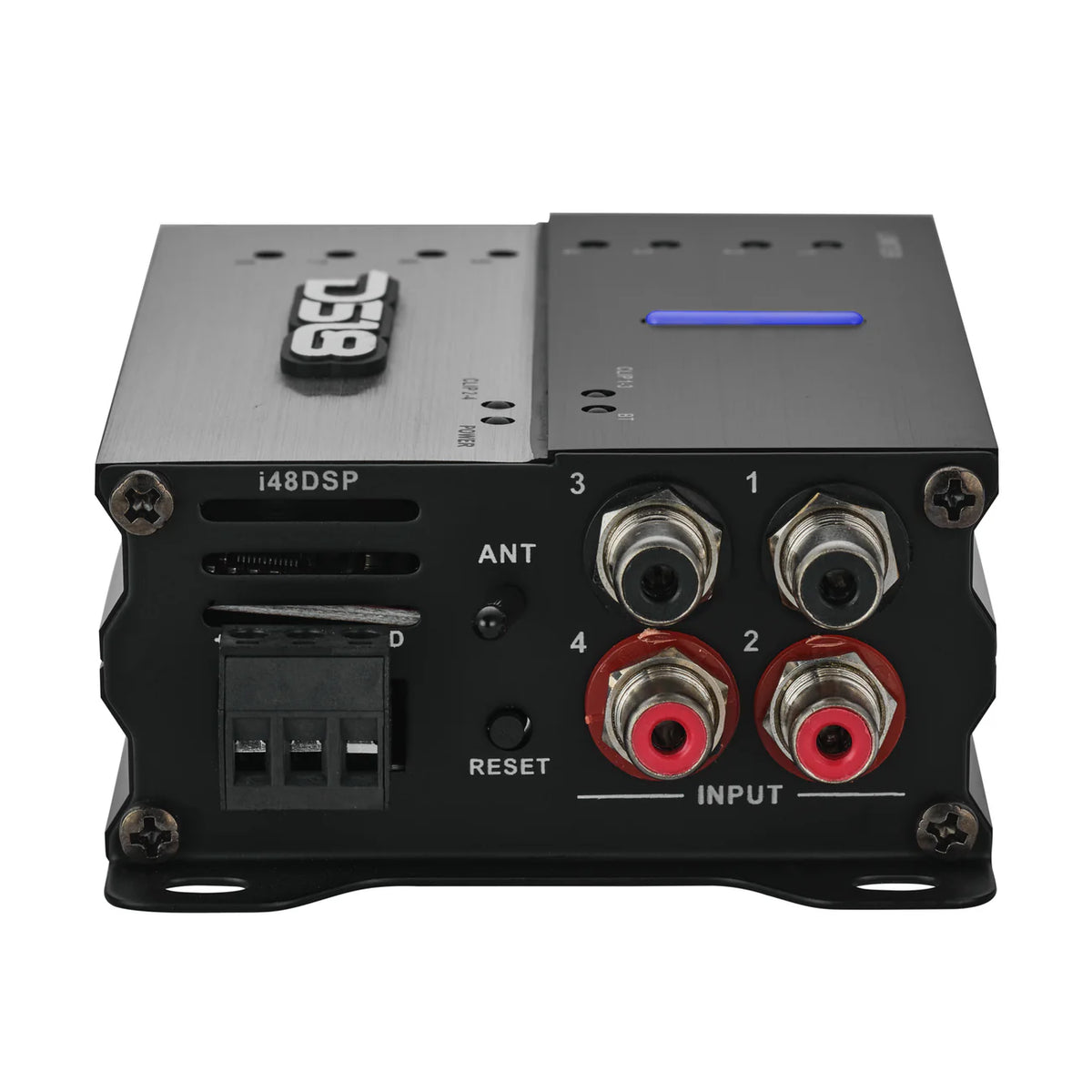

DS18 I48DSP- 4-Input / 8-Output Digital Sound Processor with Bluetooth and App Control

DS18 I48DSP- 4-Input / 8-Output Digital Sound Processor with Bluetooth and App Control

$249.95 USD
$249.95 USD
Sale Sold out
Shipping calculated at checkout.

  • KEY FEATURES

    • 4 RCA inputs and 8 fully configurable RCA outputs
    • Bluetooth 5.1 iOS/Android app control
    • 96kHz/32-bit sampling rate with AKM DSP chip
    • 31-band parametric EQ per channel, crossover and limiter control
    • Output up to 3.3V with 101dB S/N ratio and <0.04% THD

    GENERAL FEATURES

    Operating Voltage
    9.5~15V
    Power Consumption
    300mA
    Recommended Fuse Rating
    1A
    Power Input Terminal Size
    16Ga
    LED Indicator
    Power / BT / Clip / Limiter
    Voltmeter
    Yes (App)
    Remote Turn-on (Input)
    Yes
    RCA Connector Type
    Tiffany
    Housing Material
    Aluminum
    Body Color / Finish
    Black / Silver Brushed
    Compact Size to Easy Installation for Any Applications
    Yes
    PCB with Anti-Corrosion Protection Coating
    Yes
    Surface Mount Component Technology
    Yes
    Smartphone APP Connectivity
    Yes, Android and Apple devices
    Settings Presets
    Yes, (6 presets / Local Device)

    AUDIO SPECIFICATIONS

    Frequency Response
    20Hz-20KHz
    S/N Ratio
    101dB
    THD
    0.04%
    Input Sensitivity (Low-Level)
    200mv-6V
    Output Voltage
    Up to 3.3V
    Balanced Input Noise Rejection
    94dB
    Stereo Separation
    93dB
    Time Alignment
    0~20ms
    DSP Chip
    AKM AK7735
    Sampling Rate
    96KHz/32bit
    Signal Conversion AD/DA
    CS4344
    BT Audio Receiver
    5.3v
    BT Audio Codec
    SBC / ACC
    Noise Gate
    Yes, adjustable (-60~-120dB)
    Routing Channels
    Yes, Adjustable with Mixing

    EQUALIZER SECTION

    Type of Equalizer
    Parametric (Each CH) / Graphic (General)
    Number of Bands
    31 (Each CH / General)
    Frequency Point
    Selectable (Each CH)
    Boost/Cut
    18dB(+/-)
    Q Factor
    0.3~15 (Each CH)

    CROSSOVER SECTION

    Crossover Ways
    8 (Each CH)
    Crossover Slopes
    ButterWorth 6~48dB/Oct / Bessel 12~48dB/Oct / Linkwitz 12~48dB/Oct
    Frequency Cut-off
    Selectable 20Hz-20KHz (HPF/LPF/BAND-PASS)
    Phase (Polarity)
    0?/180? Selectable (Each CH)

    LIMITER SECTION

    Channels
    8 (Each CH)
    Threshold
    6~-60dB
    Attack
    0~200ms
    Release
    0~990ms
    Auto Mode
    Yes (Attack and Release)

    MEASUREMENTS

    Overall Length
    5.3" / 135mm
    Overall Width
    3.25" / 83mm
    Overall Height
    1.3" / 34mm
