Cs Pro Audio LLC, DS18

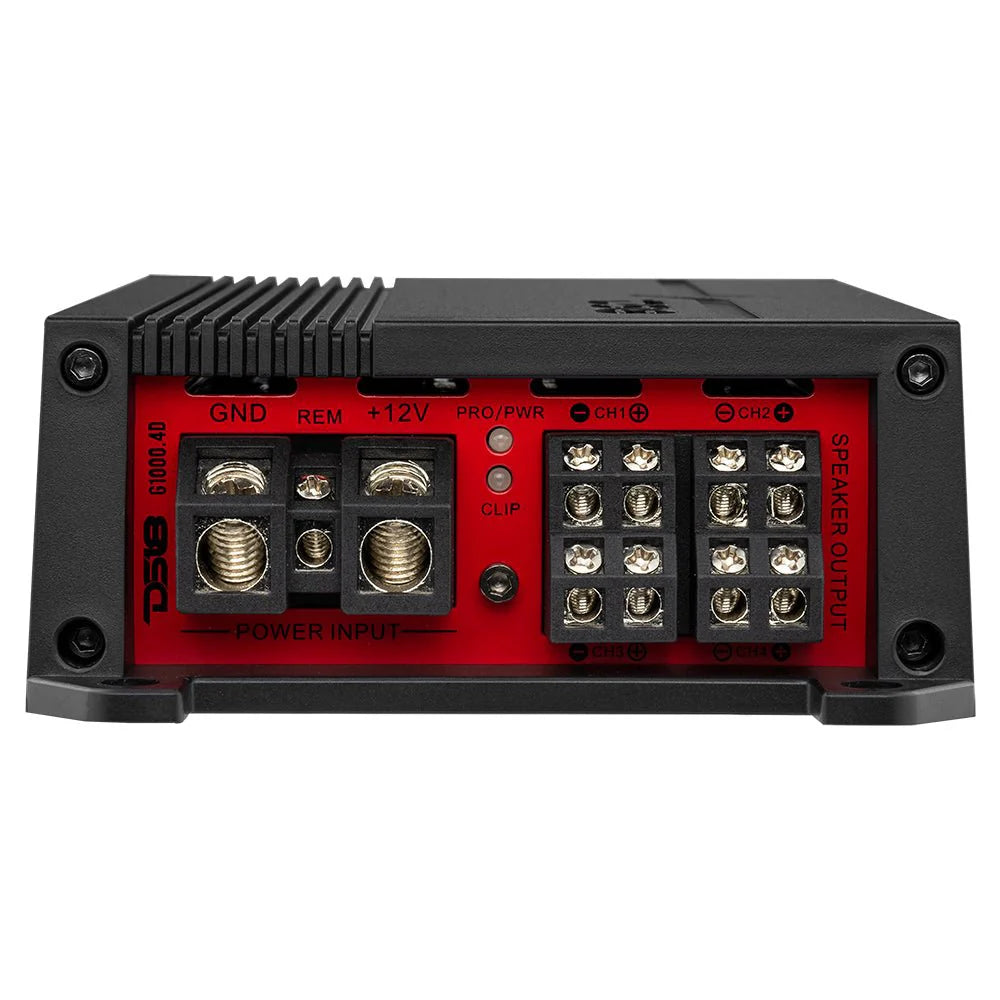

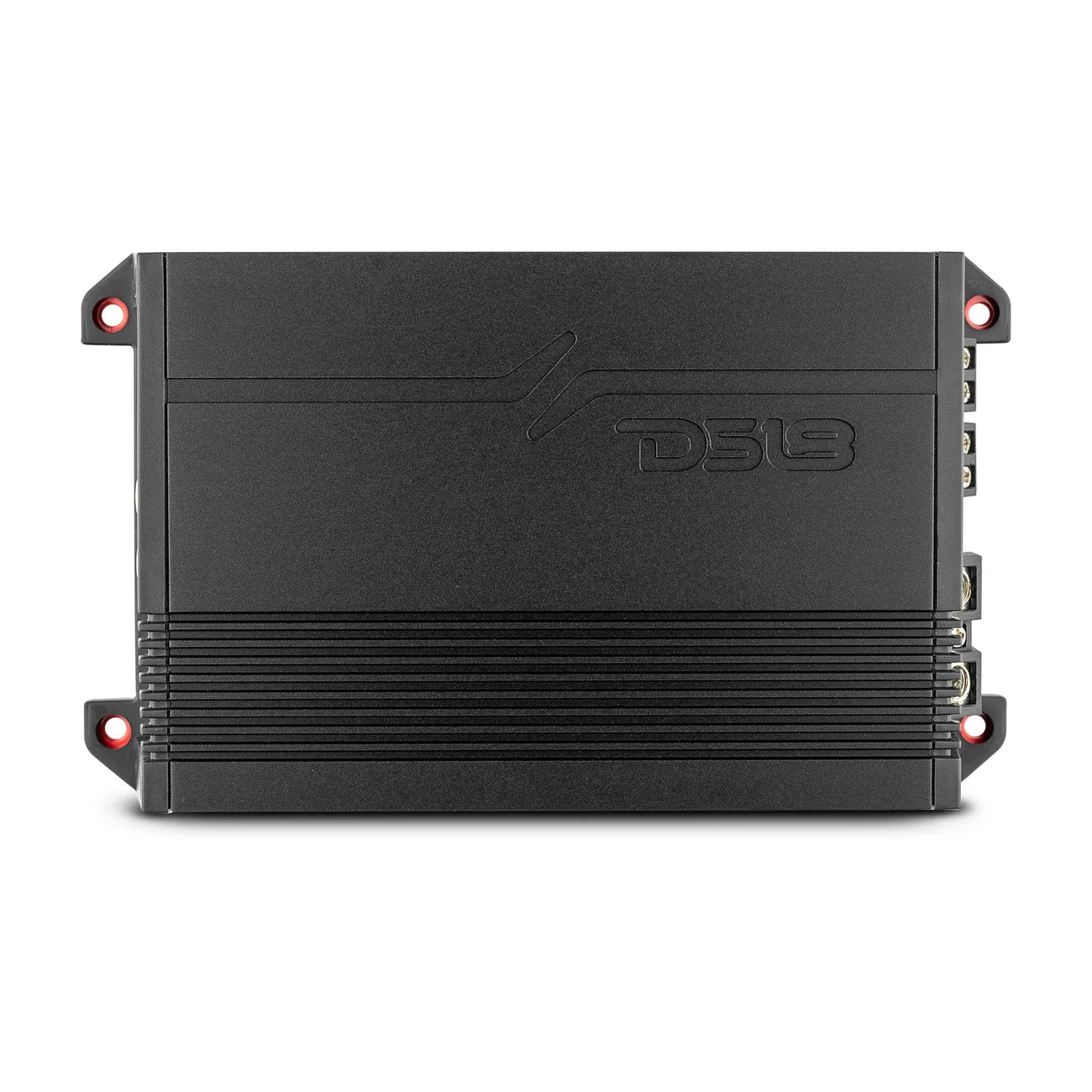

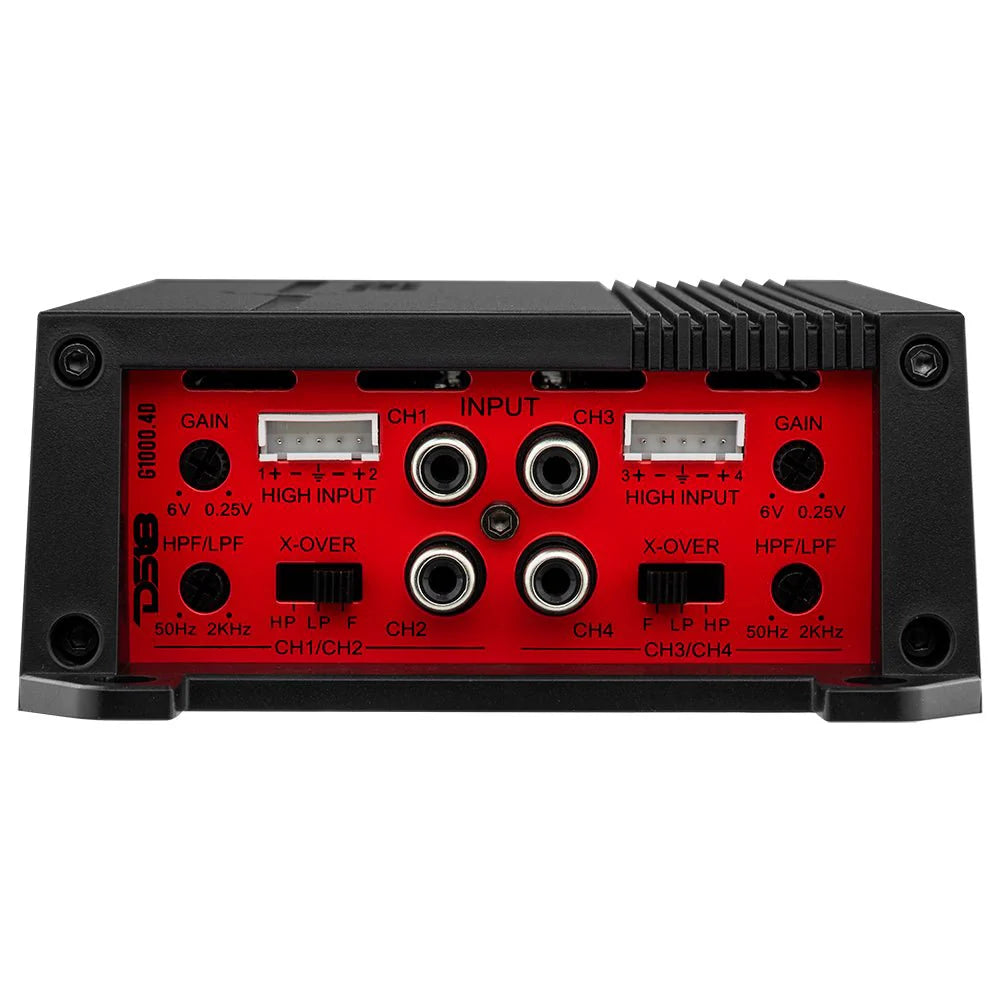

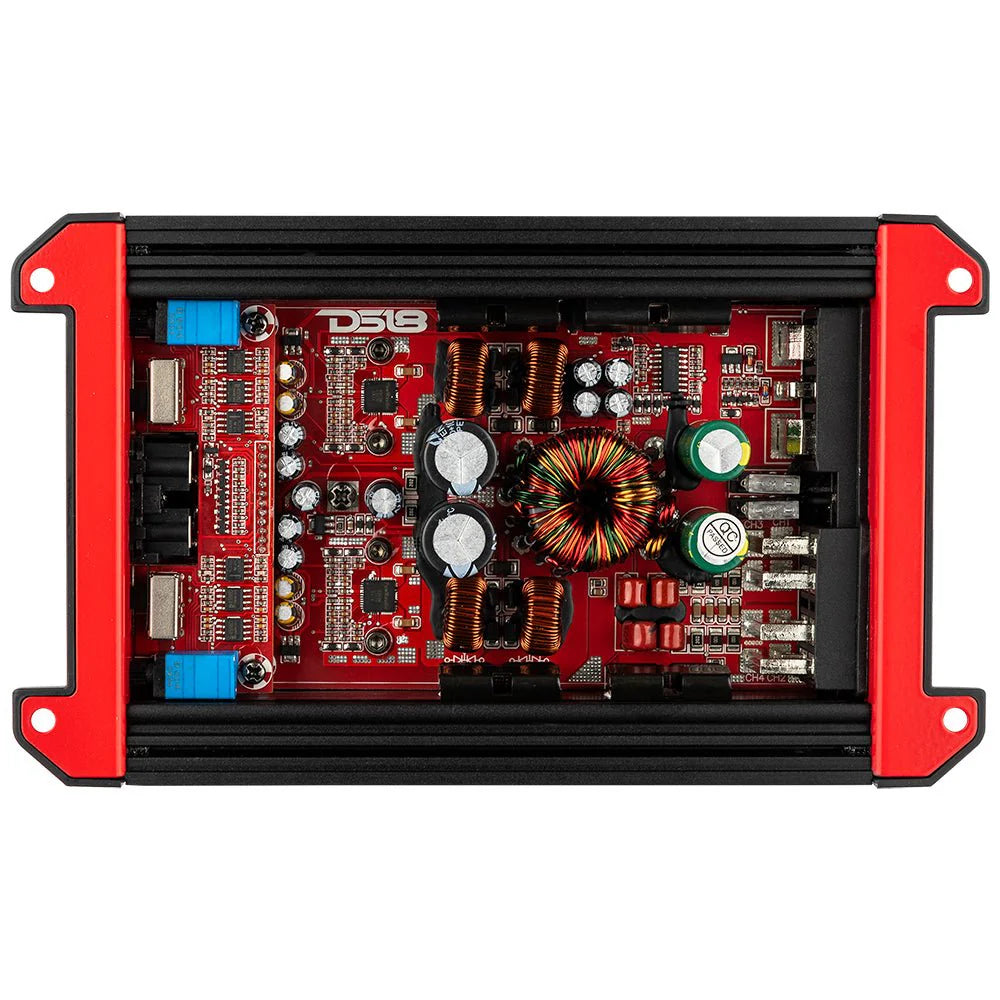

DS18 G1000.4D- GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 90W RMS @ 4-Ohm

DS18 G1000.4D- GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 90W RMS @ 4-Ohm

$179.95 USD
$179.95 USD
Sale Sold out
Shipping calculated at checkout.

  • KEY FEATURES

    • 4 Channel Full Range
    • Class D
    • 2 ~ 4 Ohm Stable
    • 4 x 90 Watts @ 4 Ohm
    • Power/Protection/Clip Indicator
    • Built in Crossover

    SPECS

    SKU
    G1000.4D
    Total Watts (Peak)
    1000W
    RMS Power @ 4 Ohm
    4 x 90W
    RMS Power @ 2 Ohm
    4 x 150W
    RMS Power @ 4 Ohm Bridge
    2 x 300W

    AUDIO

    Frequency Response
    20Hz-20Khz
    Signal to Noise Ratio
    >90dB
    Efficiency @ 4 Ohm
    0.92
    Damping Factor
    78
    Input Impedance
    22K
    Channel Separation
    55 dB
    Total Harmonic Distortion (THD)
    0.01%
    Low Level Input Range
    0.25 - 6 V
    High Level Input
    Yes
    Selectable X-over
    LPF/FLAT/HPF
    X-over Filter Range
    50Hz-2KHz

    FEATURES

    Amplifier Class
    Digital (D)
    Amplifier Type
    4 CH Full Range
    Number Of Channels
    4 CH
    Minimum Impedance
    2 Ohm St / 4 Ohm Bridge
    Led Indicator
    Power | Protection | Clip
    Power Input Terminal Size
    4 GA
    Fuse Size
    2 X 25A
    Thermal Protection
    Yes
    Over-Load Protection
    Yes
    Dc Output Protection
    Yes
    Short Circuit Output Protection
    Yes
    Voltage Input Protection
    Yes
    Clipping Protection
    Yes
    Body Color | Finish
    Matte Black

    MEASUREMENT

    Overall Length
    8.1" / 205mm
    Overall Wide
    4.72" / 120 mm
    Overall Height
    1.96" / 50 mm
    Heatsink Length
    6.2" / 158 mm
    Gross Single Unit Weight
    1.2 Kg
