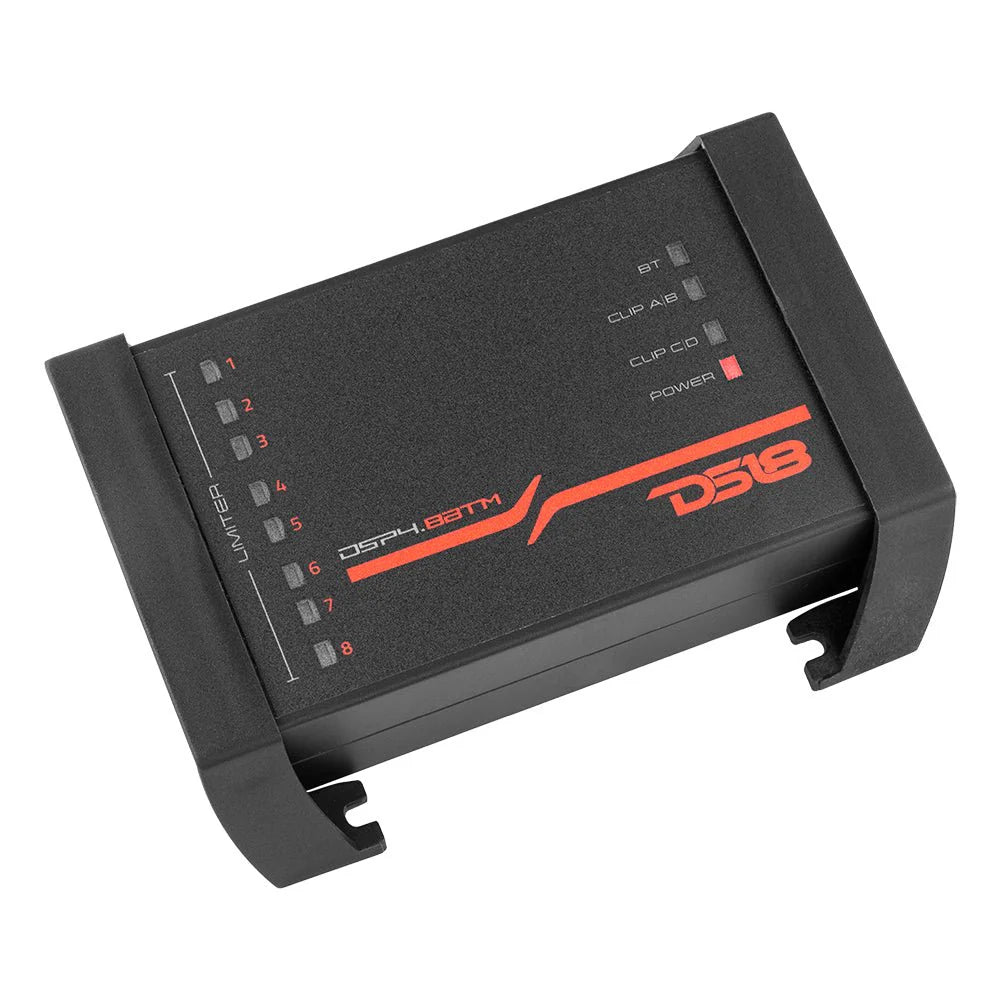

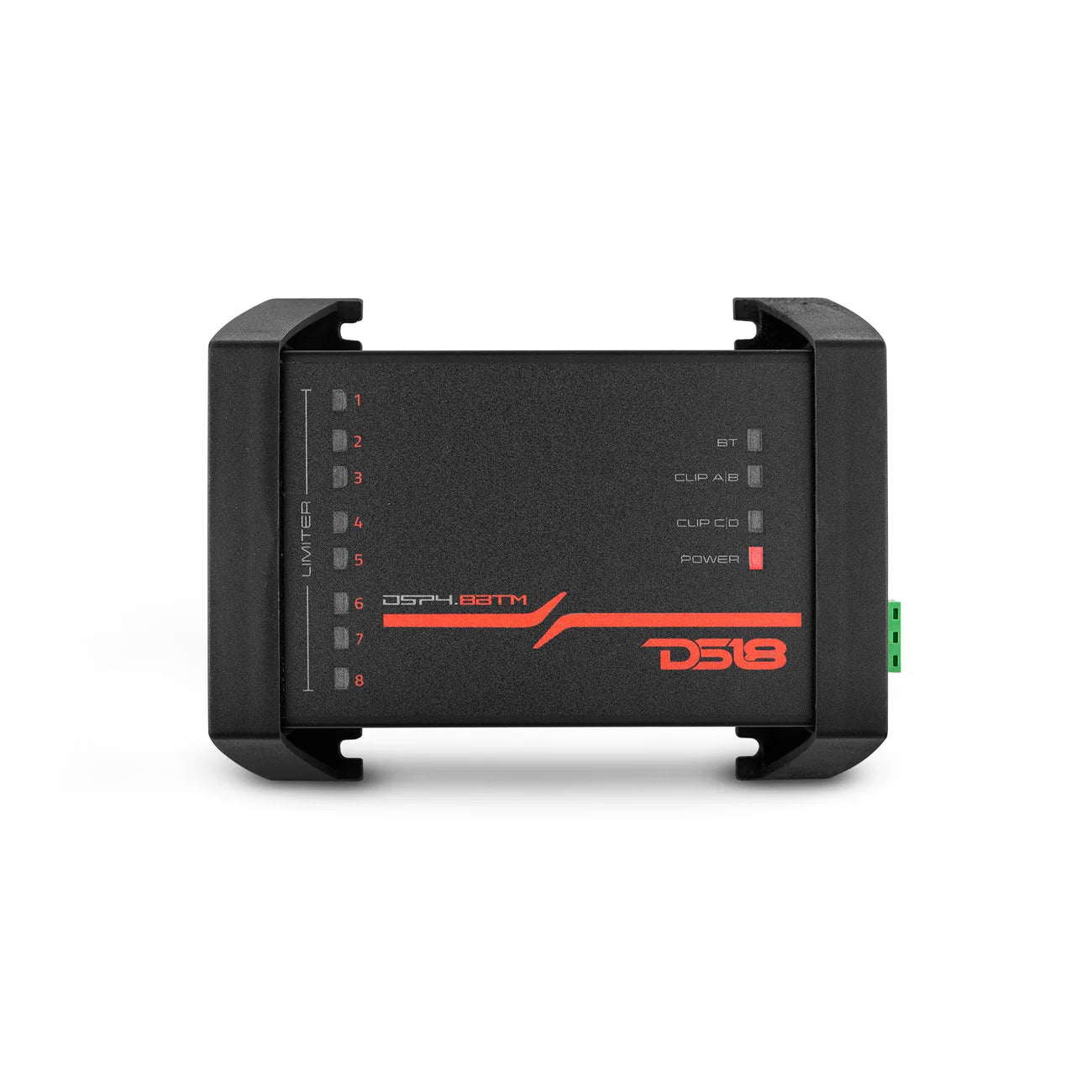

DS18 DSP4.8BTM- 4-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth

DS18’s DSP4.8BTM is the ultimate audio customization tool: with four input channels, powerful filtration tools, and app-driven signal tuning, you have everything you need to build your perfect soundstage.

Total Audio Control
The DSP4.8BTM gives you fine-grain control over your entire system—from sub to tweeter. Four input channels feed eight fully customizable outputs, each with independent settings that can be sculpted for any setup.

• KEY FEATURES

  • Digital Sound Processor
  • 4 Channel In
  • 8 Channel Out
  • Bluetooth Connectivity Via App
  • IOS and Android Compatible
  • Coated PCB



  SPECS

  Routing Options
  A / B / C / D / A+B / A+C / B+C
  GAIN
  Gain
  General Gain
  -53 to 0dB
  Channel Gain
  -33 to +9dB
  Cutoff Frequency
  20Hz to 20KHz
  Types of Cuts
  Linkwitz-Riley / Butterworth / Bessel
  Attenuations
  6 / 12 / 18 / 24 / 36 / 48dB/OCT
  Polarity Inversion Phase
  0 or 180º
  Memories
  3 - 100% Configurable
  Power Supply Voltage DC
  10~15VDC
  Maximum Consumption
  300mA
  Input Equalization Bands
  15 Bands
  Gain
  -12 to +12dB


  CHANNEL EQUALIZER (EQ CHANNEL)

  Equalization Bands
  8 Parametric per Channel
  Gain
  -12 to +12dB
  Q Factor
  0.6 to 9.9


  TIME ALIGNMENT (DELAY) / LIMITER

  Time
  0 to 18.95ms
  Distance
  0 to 6500mm
  Threshold
  -54 to +6dB
  Attack
  1 to 200ms
  Release
  1 to 988ms

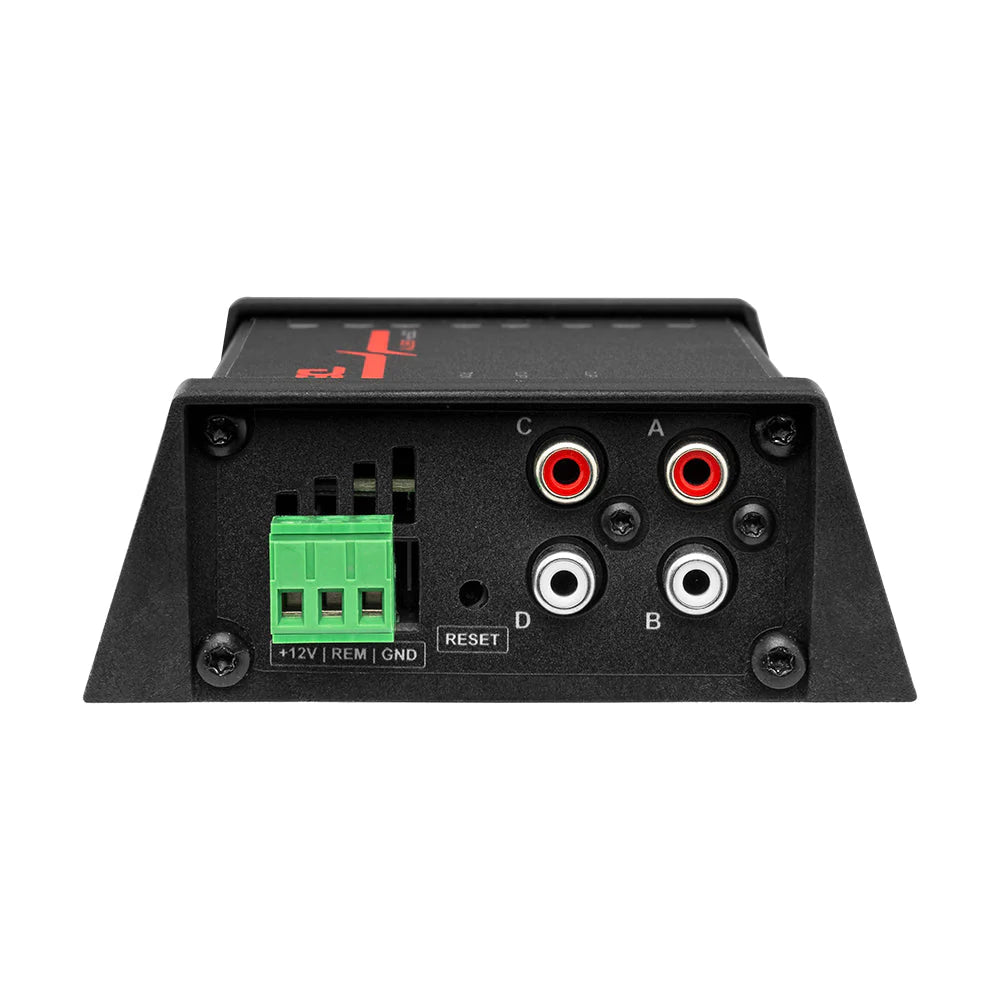

  INPUT A/B/C/D

  Input Channels
  4
  Type
  Electronically Symmetrical
  Connectors
  RCA
  Max Input Level
  4.00Vrms (+14dBu)
  Input Impedance
  100K Ω

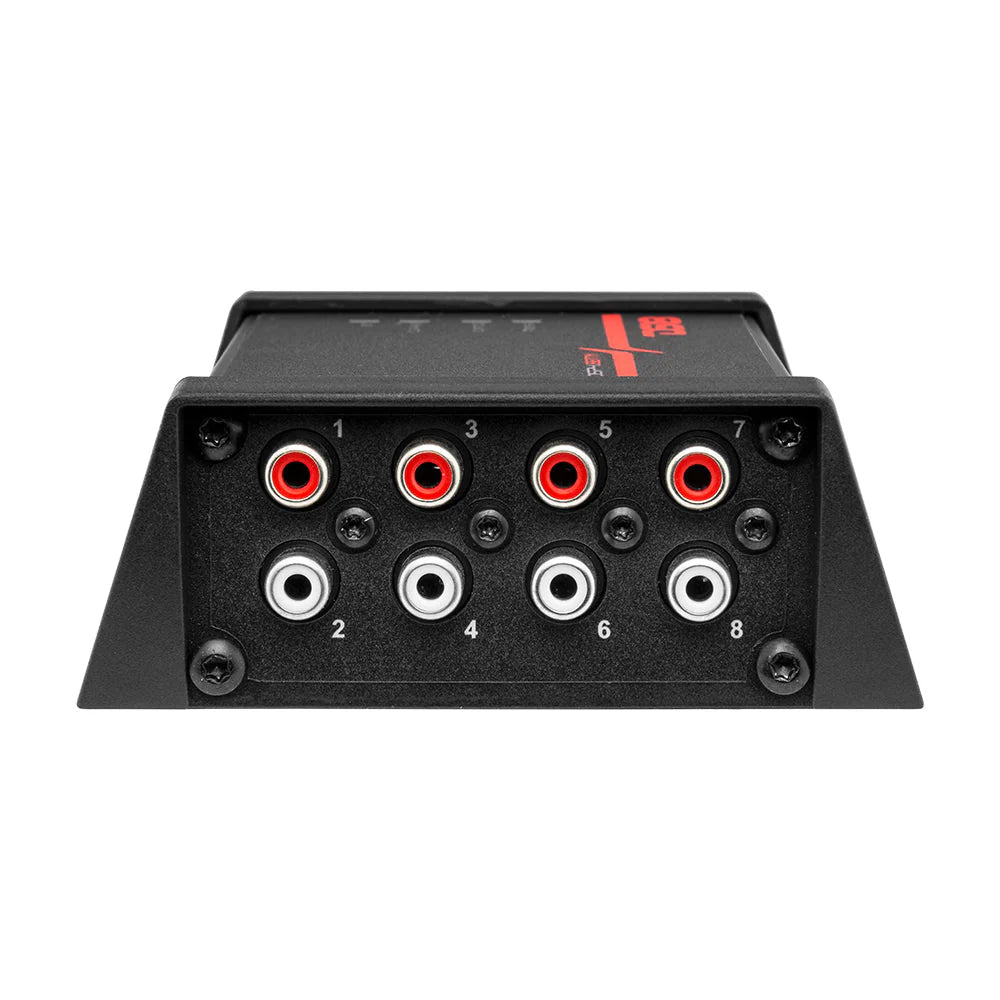

  Output Channels
  8
  Connectors
  RCA
  Type
  Electronically Symmetrical
  Max Input Level
  3.50Vrms (+13dBu)
  Output Impedance
  100 Ω


  DSP

  Frequency Response
  10Hz to 24KHz (-1dB)
  THD+N
  <0.01%
  Signal Latency
  <0.6ms
  Bit Rate
  32Bits
  Sampling Frequency
  96KHz


  DIMENSION / SHIPPING INFO

  Length x Depth x Height
  5.6" x 4.25" x 1.6"
  Weight
  277g / 9.7Oz
  Dimensions Single Box L x W x H (Inches)
  6.25 x 4.75 x 2.25
  Weight (lb)
  1
