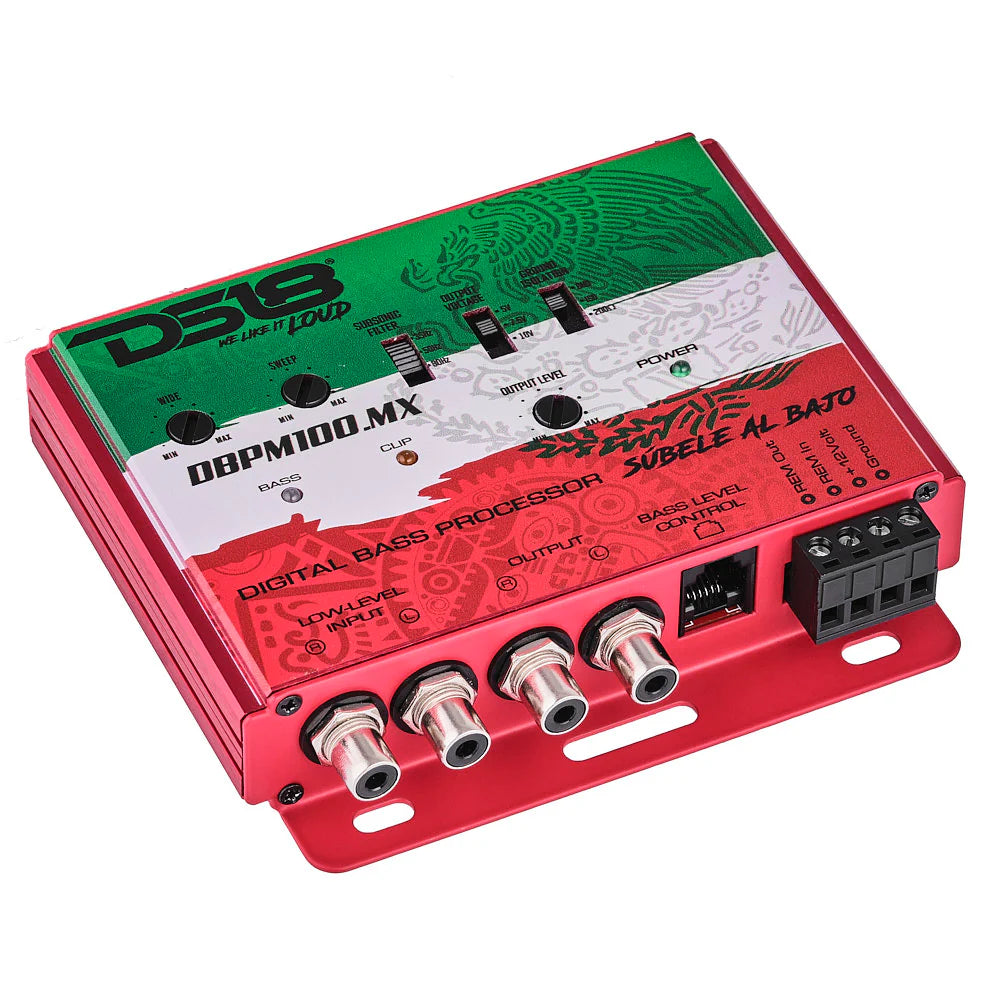

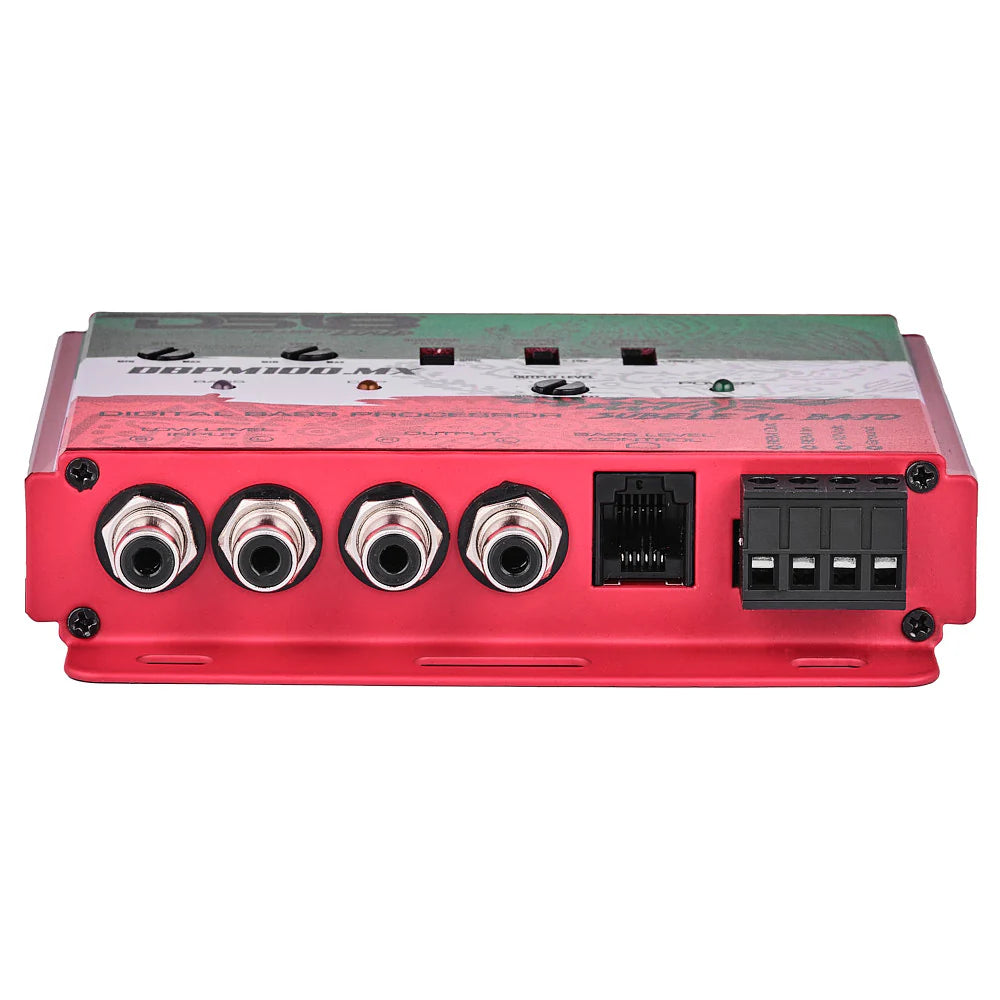

DS18 DBPM100.MX- Digital Bass Processor - Mexico Design
DS18 DBPM100.MX- Digital Bass Processor - Mexico Design
Couldn't load pickup availability
-
KEY FEATURES
- Digital Bass Restoration Processor
- Limited Edition Mexican Flag Design
- 2 Channel Preamp Input / Output
- Fully Adjustable Sweep & Width Controls
- Subsonic Filter Selectable at 35Hz, 50Hz, or 80Hz
- 5V / 7.5V / 10V Selectable Output Voltage

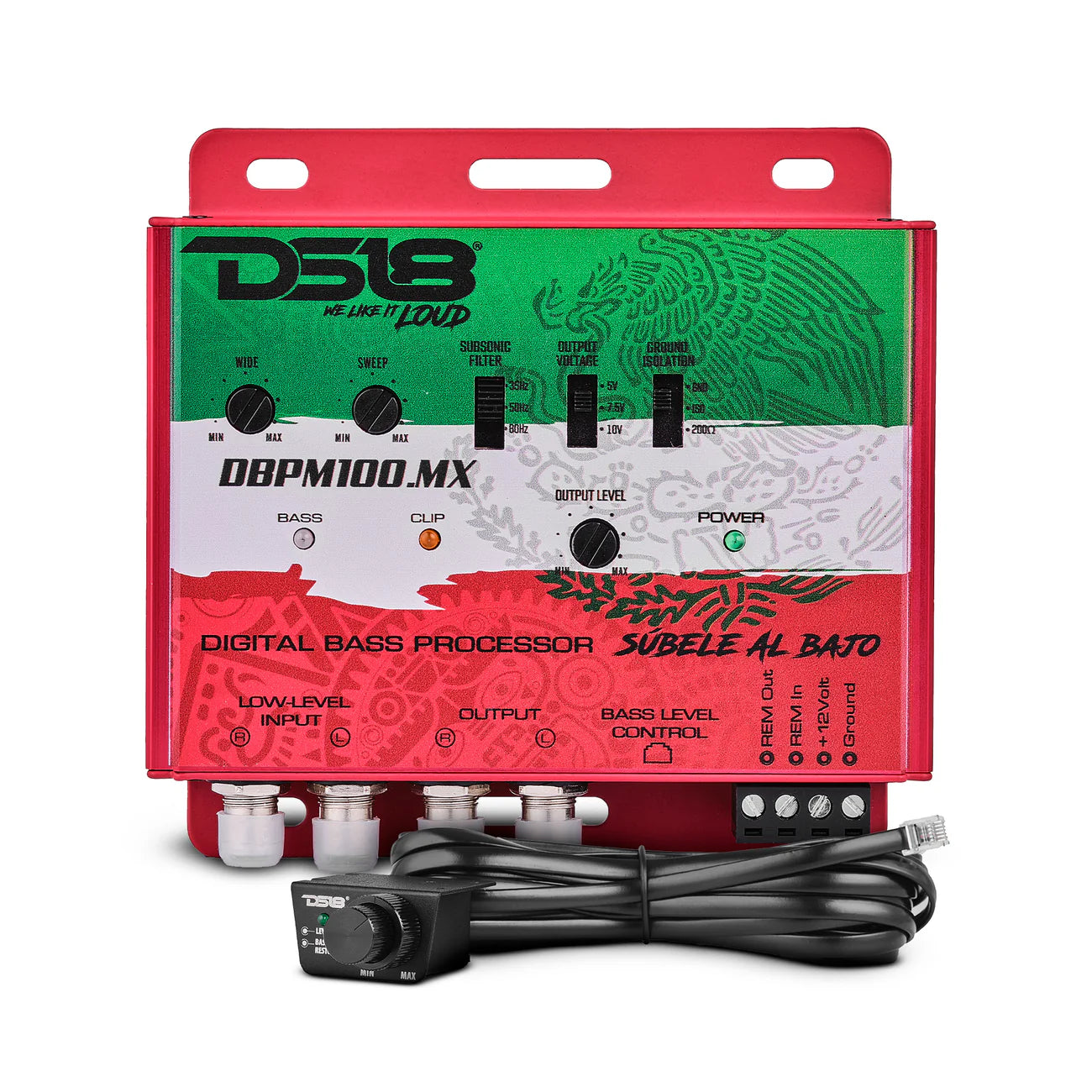

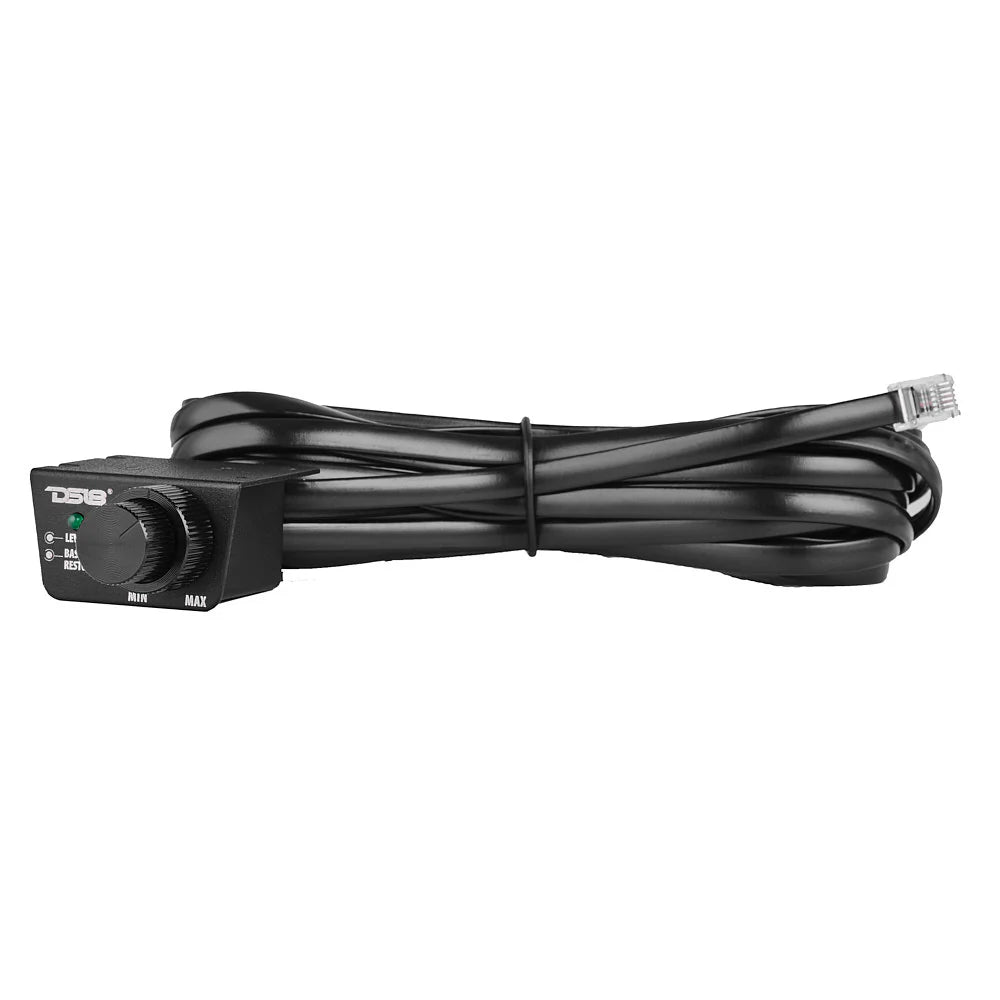

- Includes Dash-Mount Dual Knob Remote With Clip Indicator LED
- High-Level Inputs with Balanced Noise Rejection (Perfect for OEM Integration)
- Compact Aluminum Chassis with Anti-Corrosion PCB
GENERAL FEATURES
SKU
DBPM100.MX
Operating Voltage
8-17V
Power Consumption
0.24A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer / Clip
Ground Isolation Switch
Yes (GND/ISO/200Ω)
Hi-Level Speaker Input
No
Auto Turn-on Function
No
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red/Green/White (Mexico Theme)AUDIO SPECIFICATIONS
Frequency Response
10Hz-20kHz
S/N Ratio
120dB
THD
0.0022%
Input Sensitivity (Low-Level)
<10V
Input Sensitivity (Hi-Level)
N/A
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
100ohms
Balanced Input Noise Rejection
>60dB
Stereo Separation
>80dBCROSSOVER SECTION & BASS PROCESSOR
Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (35/50/80Hz)
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~3EXTRA FEATURES
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
YesMEASUREMENTS
Overall Length
4.72" / 120mm
Overall Width
4.4" / 113mm
Overall Height
1" / 26mm
