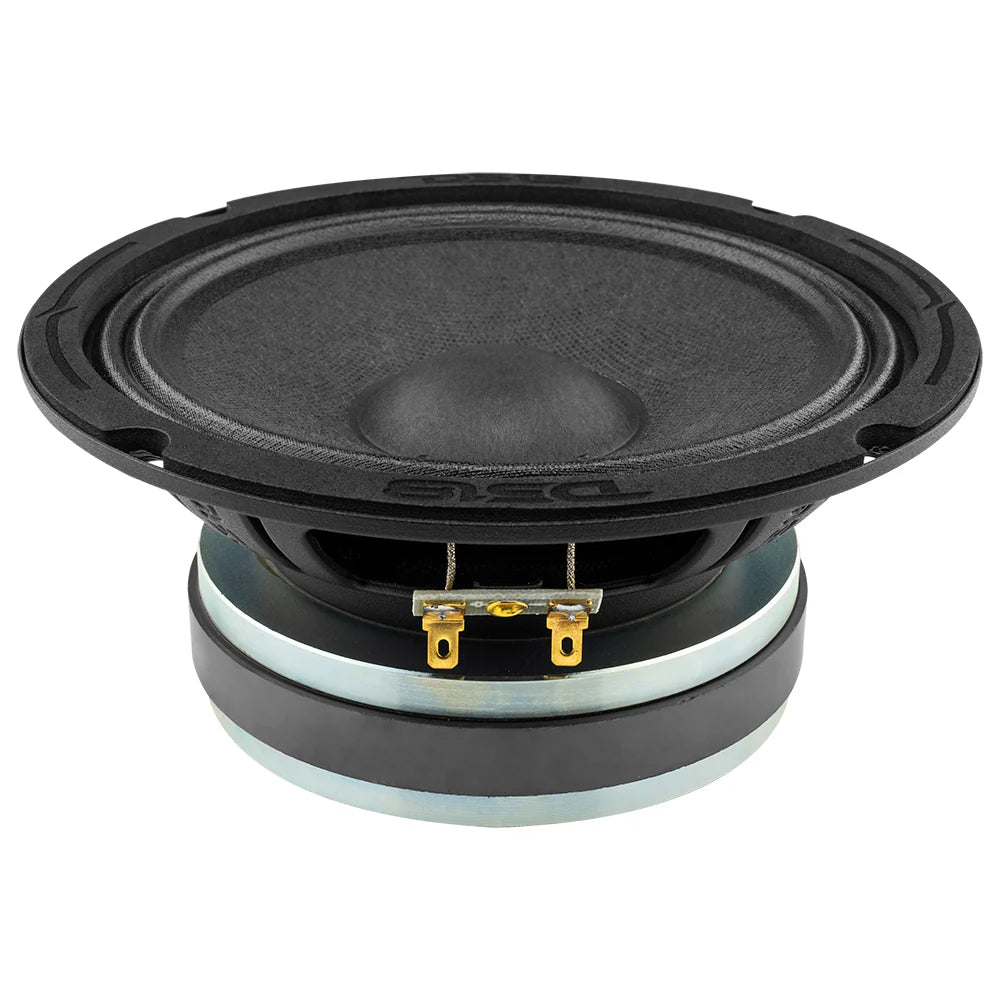

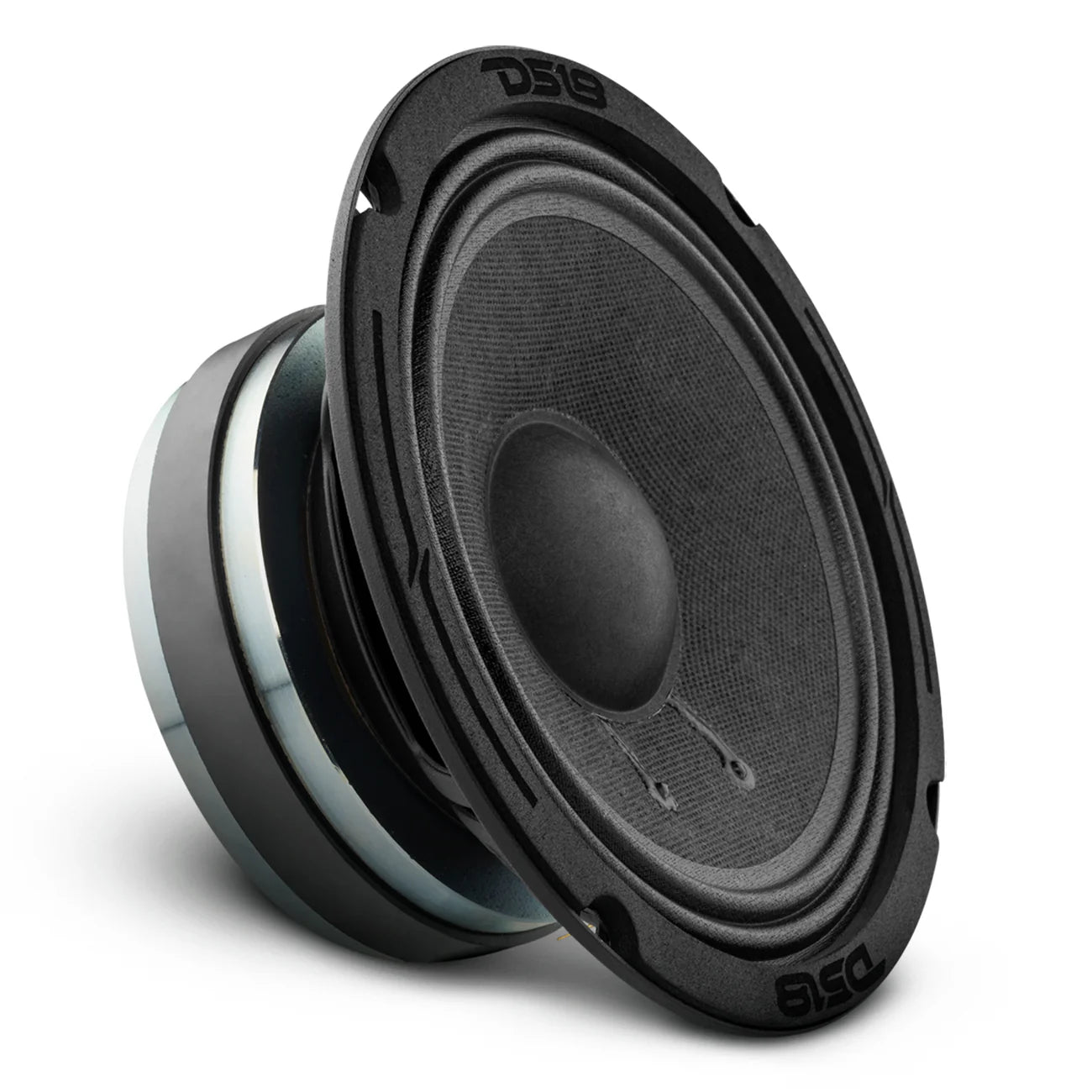

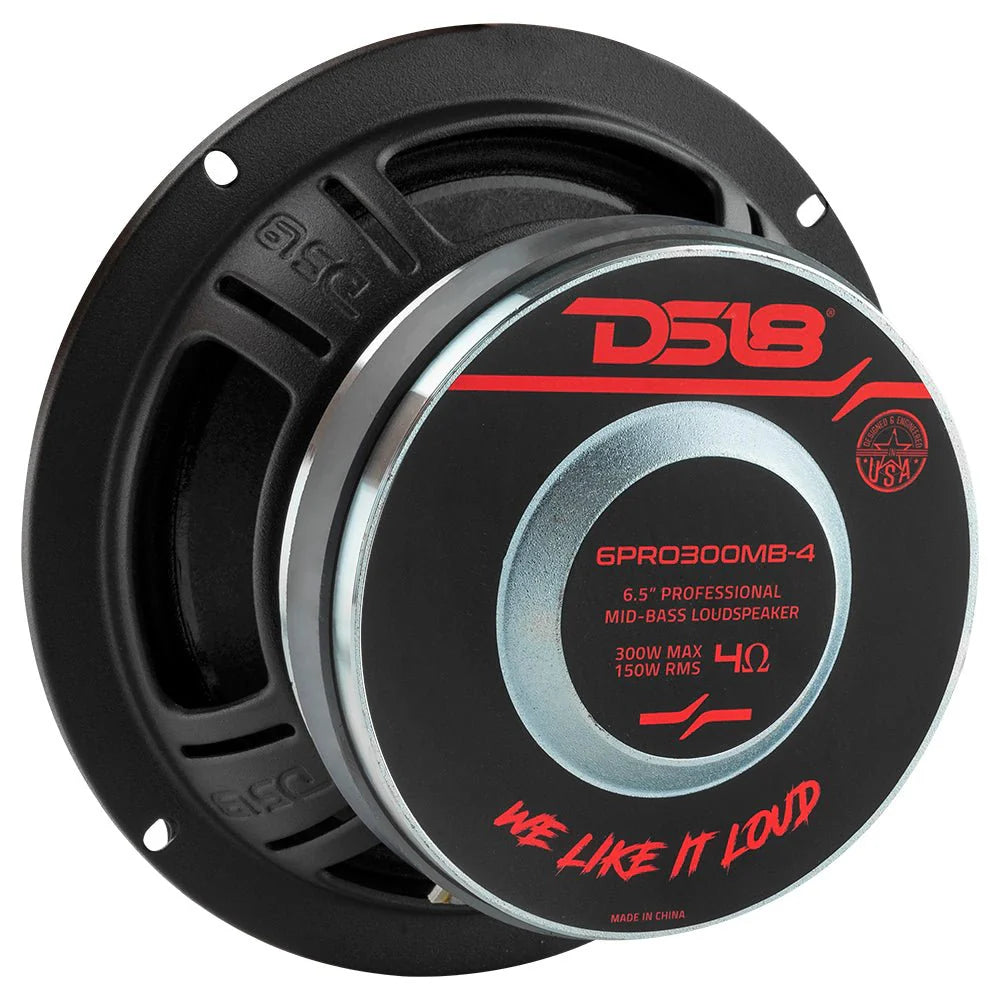

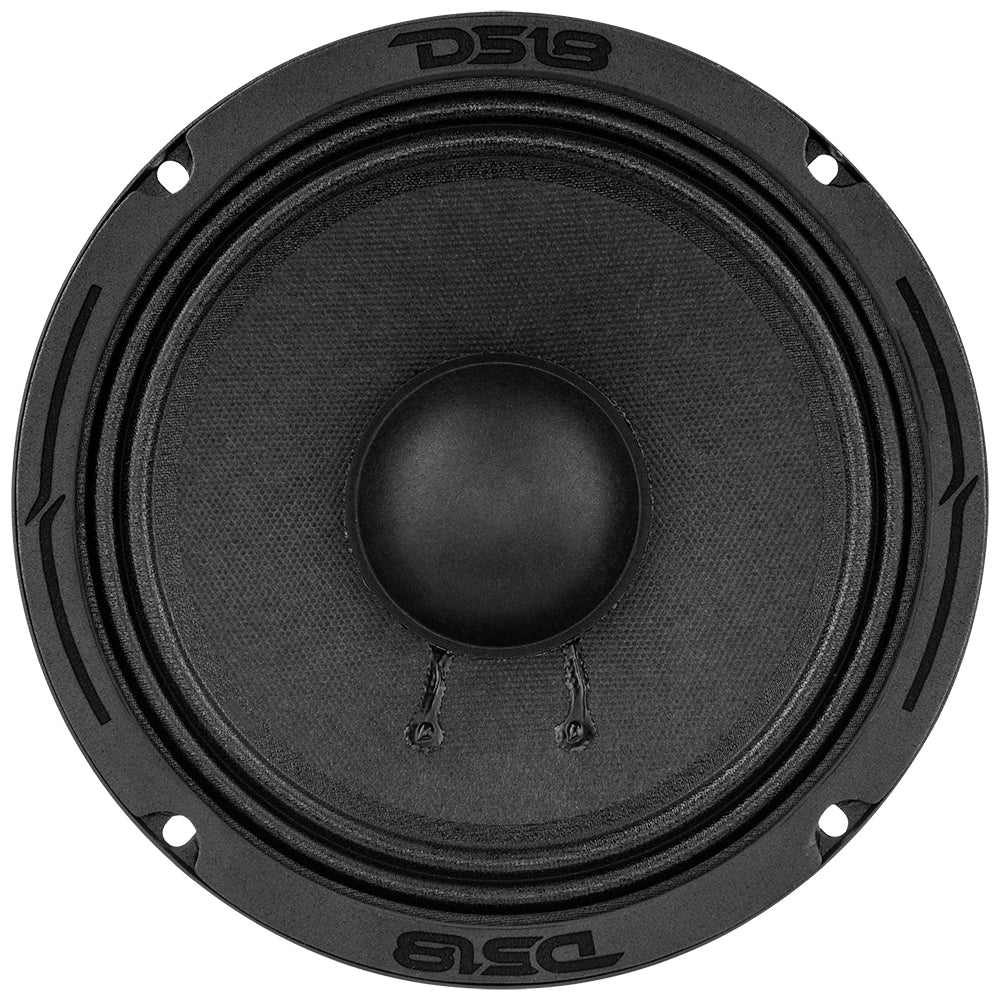

DS18 6PRO300MB-4-6.5" Mid-Bass Loudspeaker 150 Watts Rms 4-Ohm

SPECS

SKU
6PRO300MB-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm
RMS Power Handling
150W
Maximum Power Handling
300W
Sensitivity (1w/1m)
96 dB
Frequency Response
80Hz-6KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No

MOTOR

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Satin Black
Magnet Material
Ferrite
Magnet Weight
20oz
Displacement Volume
0.32L / 0.011ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
2.79L / 0.098ft3
Excursion (one way) Xmax
9.4mm
Free Air Resonance Fs
142Hz
Mechanical Factor Qms
2.09
Electrical Factor Qes
0.47
Total Factor Qts
0.39
Moving Mass Mms
10.85g
Compliance Cms
0.12mm/N
Bl Factor Bl
8.47
Voice Coil Inductance Le
0.16mH
Diaphragm Area Sd
130.7cm2
DC Resistance Re
3.5ohms

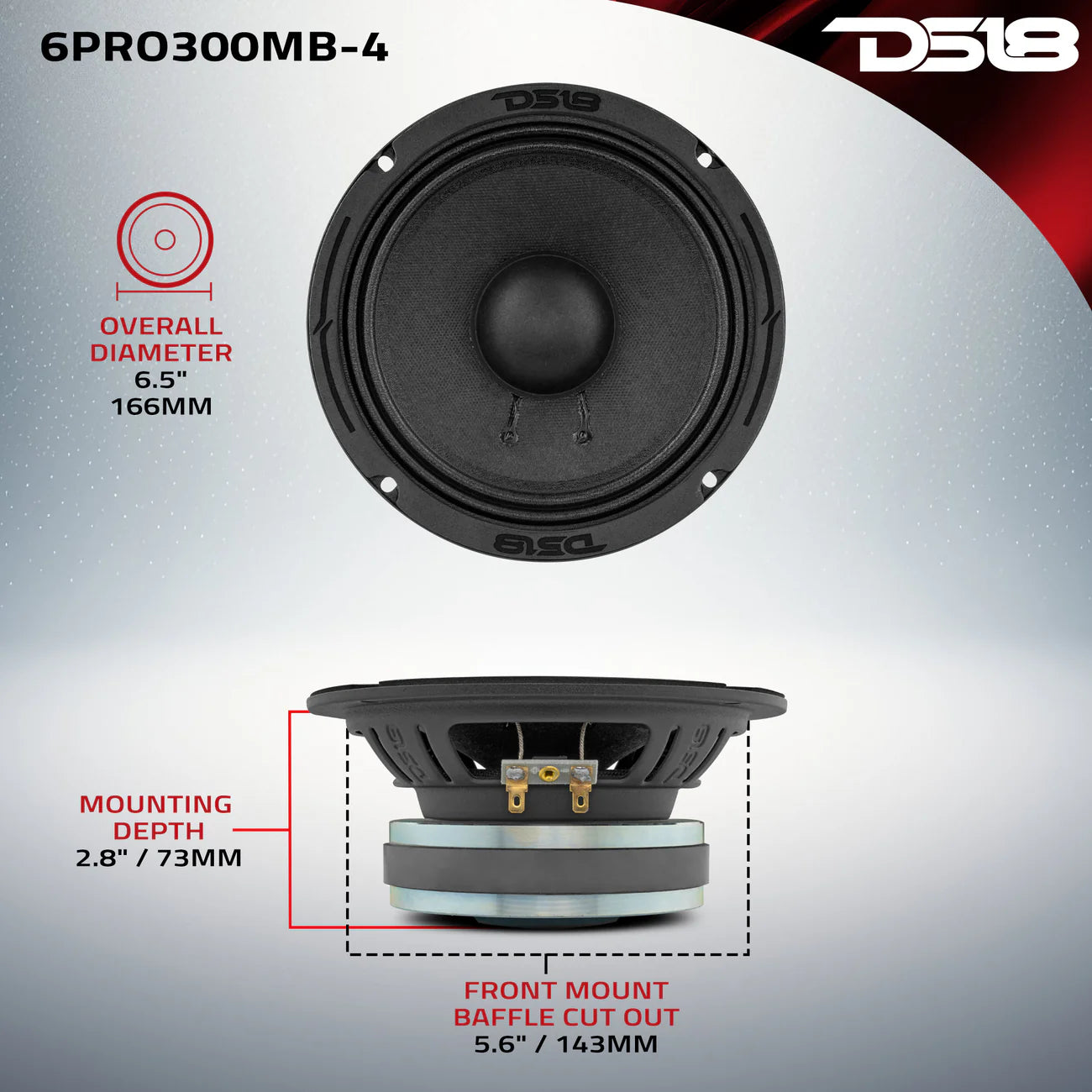

MEASUREMENTS

Overall Diameter
6.5" / 166mm
Overall Depth
3.1" / 79mm
Front Mount Baffle Cutout
5.6" / 143mm
Mounting Depth
2.8" / 73mm
Motor Diameter
4.5" / 115mm
Gross Single Unit Weight (lb)
5
Dimensions W x L x H (Inches)
7.25 x 7.25 x 3.5
Quantity of Units in Master Carton
8
Gross Master Carton Weight (lb)
40
M/C Dimensions W x L x H (Inches)
15 x 15 x 7.75
