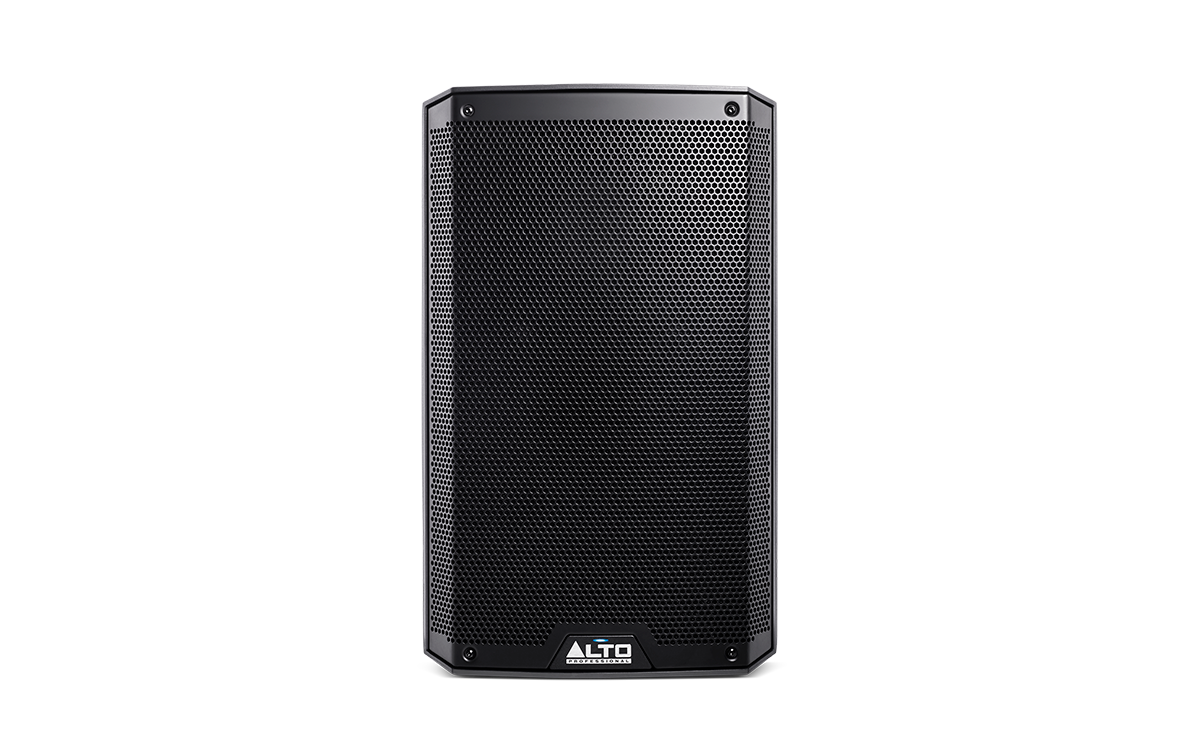

Alto TS310 2000-WATT 10-INCH 2-WAY POWERED LOUDSPEAKER

The new Alto Professional Truesonic TS3 Series does everything you demand in a no-compromise family of professional loudspeakers. These speakers solve every performance and installation challenge you have. They are high-performance in every sense: Their new transducers and amplifiers enable them to play extremely loud and clear, without compromise or restriction. And they are “high-performance” from a concept and manufacturing standpoint—we made sure that every aspect of their design outperformed what it had to do. The end result are loudspeakers that achieve a level of excellence and refinement that defies expectations. Defies your expectations.

TECH INFORMATION

• Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
• LF Driver: 10-inch (254 mm) LF driver, 2.5-inch (65 mm) high-temperature voice coil
• HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision waveguide
• Crossover: 2.5 kHz
• Maximum SPL: 129 dB peak, 126 dB continuous (dB SPL @ 1 m)
• Frequency Response: 54 - 20 kHz (+/- 3 dB)
• Frequency Range: 48 Hz - 22 kHz (-10 dB)
• Horn Coverage: 90° H x 60° V nominal
• Equalization: Contour Switch Low and High Frequency +3dB Boost
• Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
• Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
• Indicators: 2 x Power LED (front and rear), Clip limiter LED
• Protection: Electronic clip, Thermal and transducer overdrive protection
• Power Connection: IEC with Mains Fuse
• AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
• Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
• Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB810 bracket, Flown application with integral M10 suspension points, Wedge monitor
• Dimensions: (H x W x D): 20.6” x 12.6” x 11.8” / 524mm x 320mm x 300mm
• Weight Net Weight: 26.1 lbs. / 11.9 kg.
• Design Origin: Designed and tuned in the USA
• Accessories: TSB810 Bracket, TS210 Cover
