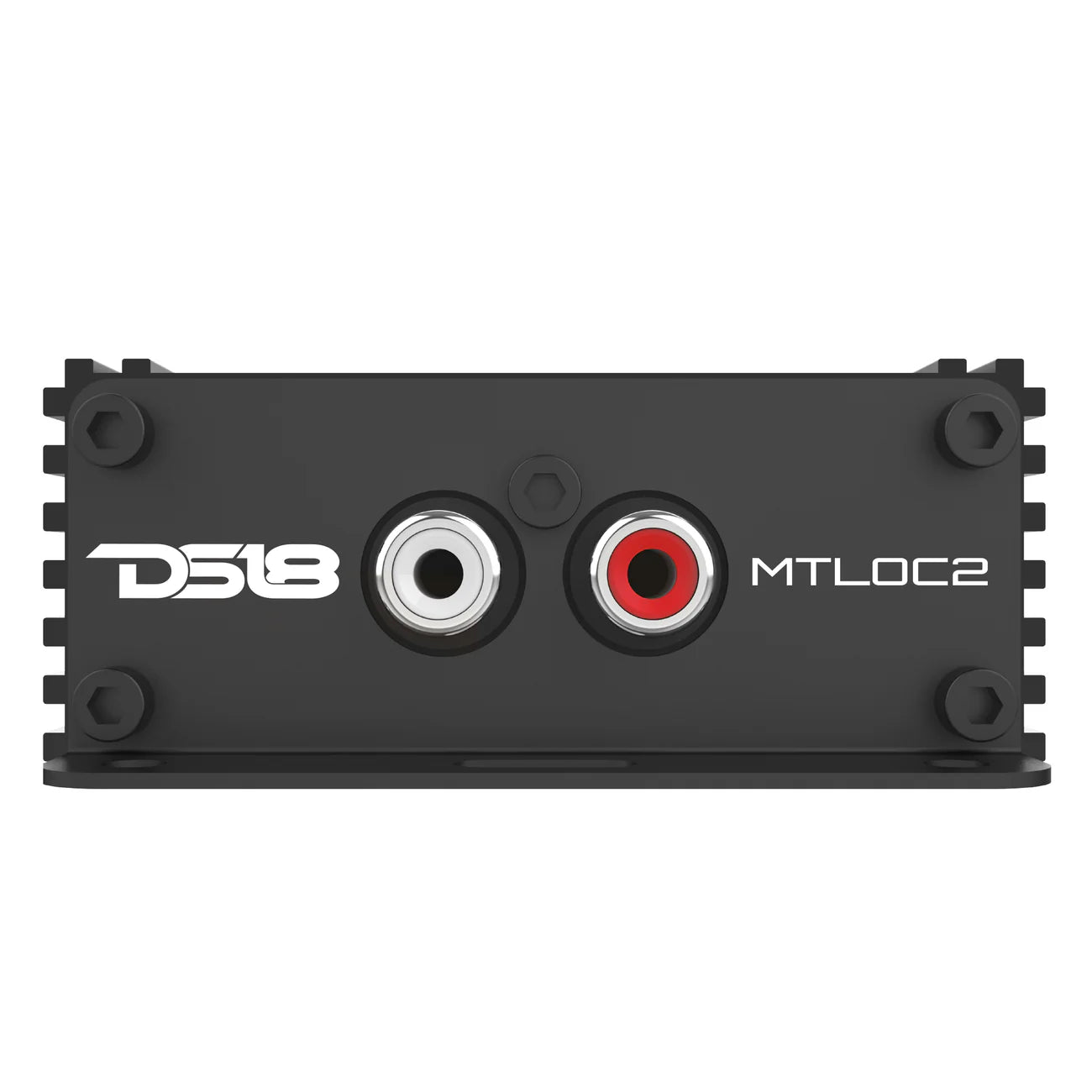

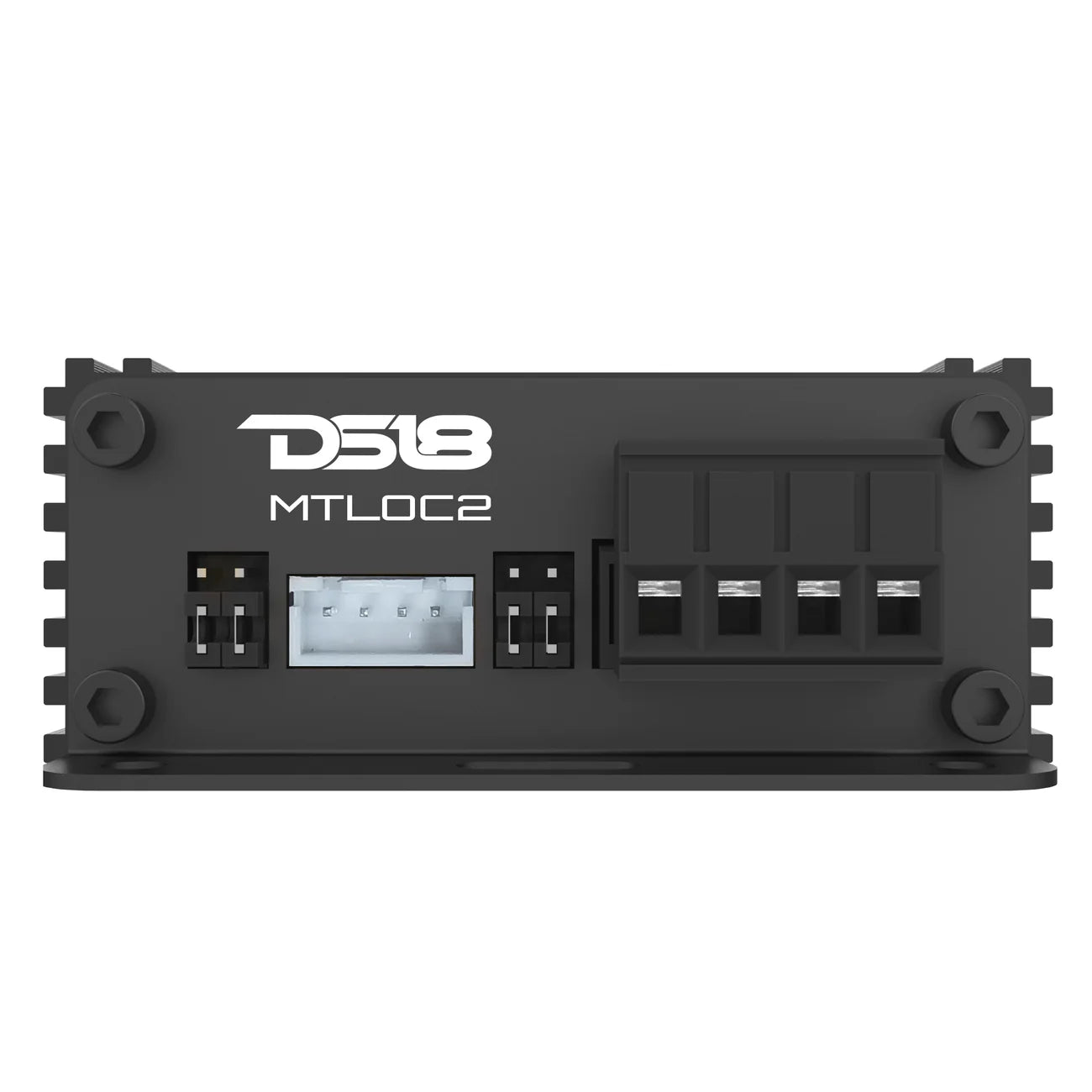

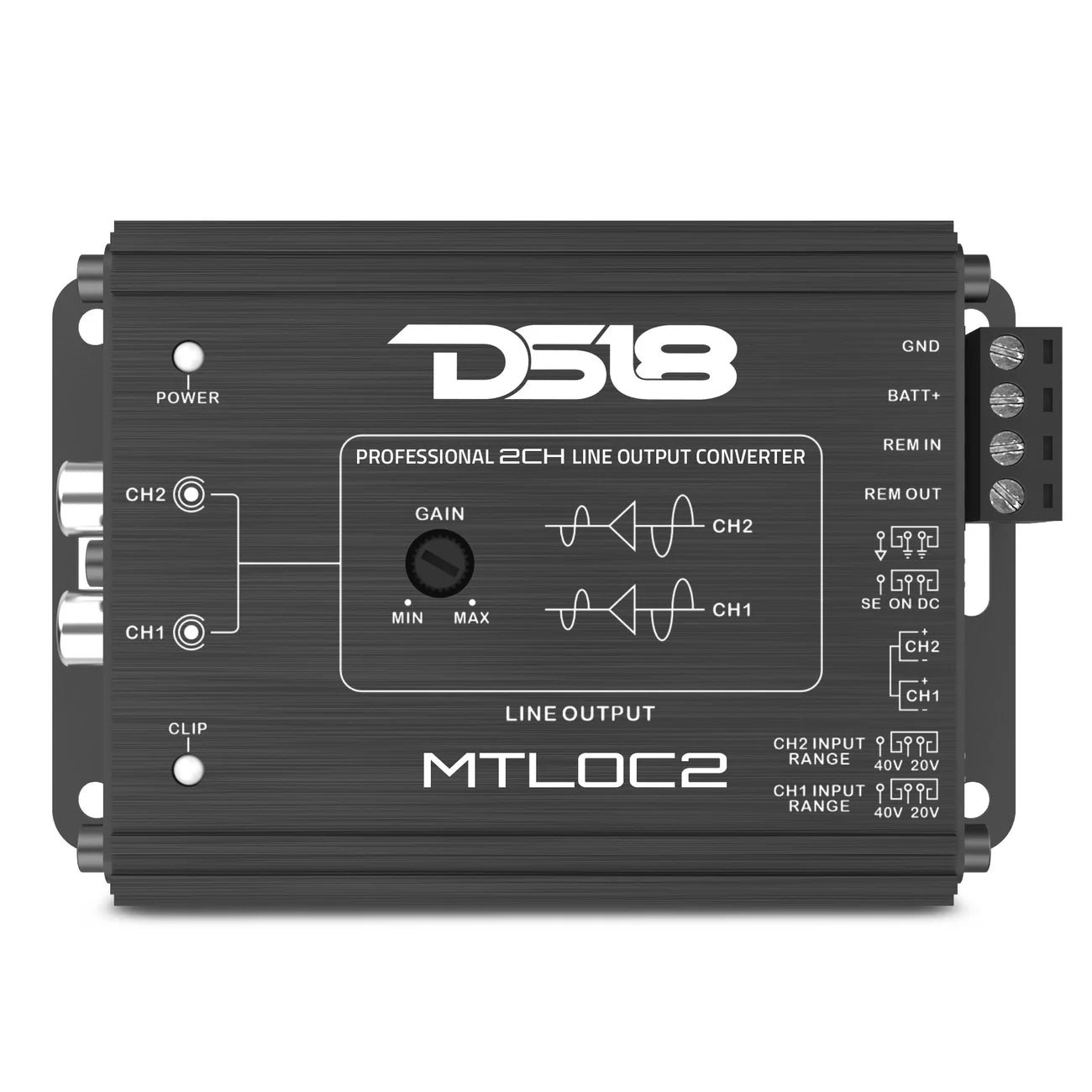

DS18 MTLOC2 - 2-Channel High-to-Low Level Line Output Converter with Remote Turn-On

SPECIFICATIONS

Maximum Speaker Level Input
Selectable 20 / 40V (100 / 400 W RMS)
Maximum Preamp Output
Up to 9V
Nominal Conversion Ratio
4:1
Frequency Response
10Hz - 20kHz
Total Harmonic Distortion
0.01%
Signal To Noise Ratio
>110dB
Input Impedance
100 ohms
Output Impedance
100 ohms
Power Draw
50mA
Recommended Fuse Rating
1A

FEATURES

Bass Boost
No
Auto Turn-On
Yes (Audio Sens / REM / DC)
Remote Output
Yes
Level Matching Controls
Yes
Dash Remote Level Control
No
Led Indicators
Power / Clip
Housing Material / Color
Aluminum / Black
Wiring Connector
14ga Quick Connector
Ground Isolation
No
Step-Down Method
Transformer
Input Selector
No
